The three row roller slewing bearing has three seat rings,which separate the upper,lower and radial raceways,it made each row of the roller’s load capacity can be specified and can bear different loads simultaneously.

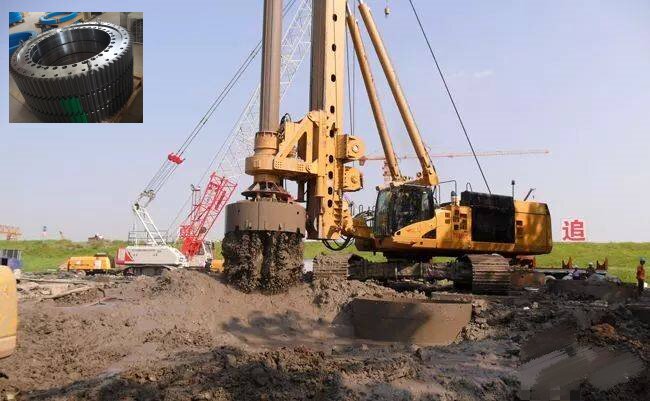

The capacity load is the largest one compare with the other three models. In order to ensure the smooth operation of rotary drilling under different working conditions, the slewing bearing must bear larger overturning moment.Our technical department choose Three-row roller slewing bearings
| products discription | |||
|---|---|---|---|

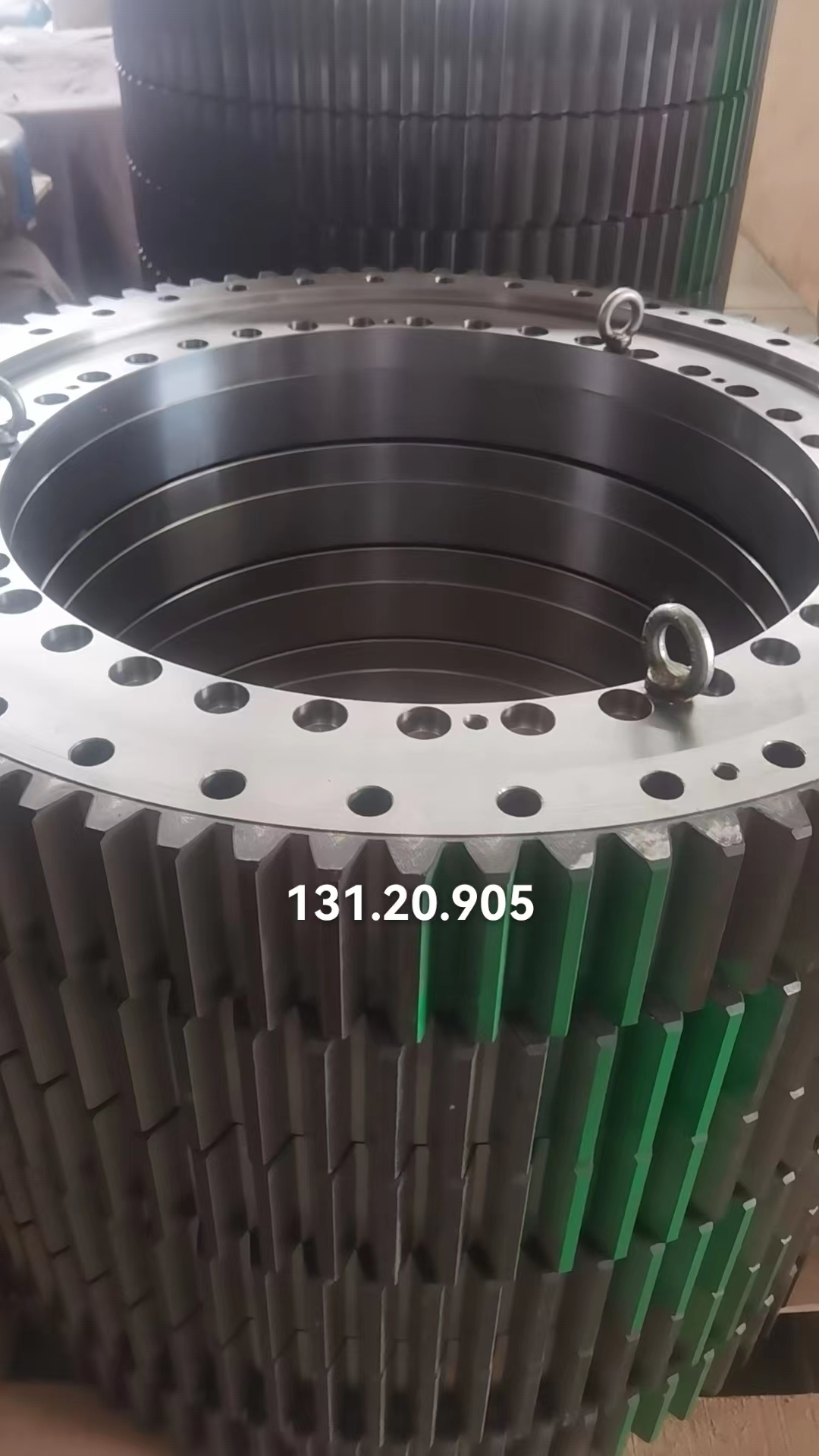

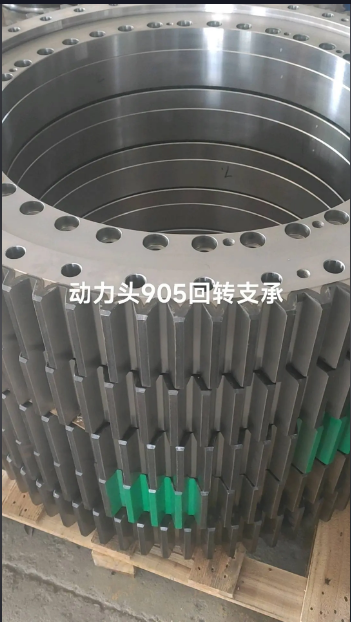

| Model Number: | 131.20.905 | Brand name | longwei |
| Production Experience | Since 2004 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory |
| Rolling-Element Number | Three -Row roller | Gear Options: | with External gear |
| Material | 50Mn/42CrMo/ Customized | Seals Type: | NBR or As requirement |
| Bearing Type: | Three Row Roller | CERTIFICATE: | ISO9001:2008/SGS |
| Bore Diameter | 742 mm | Outside Diameter | 1040mm |
| Roller Type | Deep Groove Raceway | RACEWAY hardness: | 55HRC -62HRC |
| Products Name | Three Row Roller Type Slewing Bearing Precision Internal Gear | Service: | OEM Service.Design Service |
| Net Weight : | 560kgs | Material of Rolling element: | GCR15 |
| Warranty Period | 1 year | Testing | In house or third party |
| Origin | CHINA | Size | Standard OR Customized |
| Height | 178MM | H.S. Code | 848210900 |
| Transport Package | 1. Industrial Neutral Packing 2. Package as your requirements.3. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton 4.Large size Bearings:Plastic film+pergamyn paper+Roll tape+Wooden Box | MOQ | 1 SET |
| Plane deviation of mounting bracket P (mm) | ||||
|---|---|---|---|---|
| Raceway center diameter | Plane deviation of mounting bracket P (mm) | |||
| DL(mm) | single row four ball | double row ball | cross roller | |
| ~1000 | 0.15 | 0.2 | 0.1 | |
| >1000~1500 | 0.19 | 0.25 | 0.12 | |
| >1500~2000 | 0.22 | 0.3 | 0.15 | |
| >2000~2500 | 0.25 | 0.35 | 0.17 | |
| >2500~4000 | 0.3 | 0.4 | 0.2 | |
| >4000~6000 | 0.4 | 0.5 | 0.3 | |
| >6000~8000 | 0.5 | 0.6 | 0.4 | |
INSTALLATION OF Longwei transmission SLEWING BEARINGS
Preparation:
Make sure that the model is correct and slewing bearing isn’t damaged during transportation.
2. Check the appearance and rotational state of the bearing, such as rotational precision clearance, rotating flexibility, seals position, lubrication grease etc.
3. The installation datum plane and bracket installing plane should be clean, grease, burr, paint and other foreign body should be wiped off.
Installation:
1. The screws in the installing plane should be fit with the mounting holes in the slewing bearing
2. The slewing bearing has a soft zone marked with an “s” on the upper surface, when installing the bearing, it is important to ensure that this area is placed in a non-load or infrequent load zone.
3. When the bearing is placed on the supporting frame work it is important to check the interface between these two surfaces. This check should be carried out with the insertion of feel gauges between the two surfaces. If a gap should exist then it is recommended to plane/resurface the effective area so as to remove the gap.
4. Install slewing bearing with high strength screws, and choose appropriate strength bolts. All bolts are required to be tightened evenly. The sequence of this tightening process is shown in Pic. Welding of bearing is not allowed, in the event of welding any adjacent parts, heat transfer shall be avoided so as to cause the bearing to become deformed or change the hardness.
5. After installation, the bearing should be rotated to check for smooth operation and any emission of unusual noise. If either of the aforementioned are noted, then the bearing should be adjusted to eliminate them. The teeth of the largest run-out are coated with green paint.
Longwei Transmission Slewing Bearing Packing
Basic Packing
Bearing surface is covered with the anti-rust oil first; and then wrapped with the plastic film;
And then packed with kraft paper and professional belts;
At last, with wooden box totally at the outer packing to invoid the rust or the moist;
We can depend on the customers demand to be packed;
Longwei Transmission slewing ring bearings can be packed by different ways.
If bearing diameter is less than 2300mm, slewing rings will be usually packed by square plywood case.
If bearing diameter is more than 2300mm, slewing rings can be packed by square plywood case, round plywood case, or steel tripod. Every package way can be totally kept goods safely.
FAQ:
Q: Are
BEARINGS trading company or manufacturer?
A: Longwei Transmission is a professional manufacturer for slewing bearings, thin section bearings, ball bearings and rolling bearings
Q: How do Longwei Transmission Slewing Bearing control quality of their bearing?
A: Longwei Transmission BEARINGS has established strict quality control systems, all the products and services has passed ISO9001-2008 Quality Certificate and third party such as CCS, LR,ABS,BV
Q: What is the MOQ?
A: MOQ is 1pc, pls message us for detailed information.
Q: How about the package for Longwei Transmission Slewing Bearing?
A: Standard Industrial packing in general condition (Plastic tube+ professional plastic belts+ plywood case). Accept design package when OEM.
Q: How long is the production time?
A: It takes about 7-40 days, depends on the model and quantity.
Q: How about the shipping?
A: We can arrange the shipment or you may have your own forwarder.
Q: Is sample available?
A: Yes, sample order is acceptable.
Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable for Longwei Transmission Slewing Bearing. We can design as per your requirements and use your own LOGO and package design.
