- Avoid long time operation, due to the slewing bearing will produce high temperature and heat to accelerate wear rate.
- Each time, it is necessary to clean the cylinder body, clean up the residues, and achieve the degree of equipment maintenance.
- Remember to power off in time to avoid operating in a long time Which will affect it’s effective.
Note

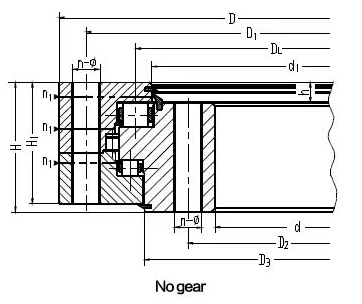

1. n1 is the nos of lubricating holes.Oil cup M10×1JB/T7940.1~JB/T7940.2.The Oil nipple’s location can be change according to the user’s application.
2. n-φcan change to tapped hole,the diameter of tapped hole is M,depth is 2M.
3. The tangential tooth force in the form is the max tooth force,the nominal tangential tooth force is 1/2 of the max one.
4. “K” is addendum reduction coefficient.
It have three seat rings, the upper and lower raceways and the radial raceways are separated, so that the load of each row of roller can be determined accurately. Being able to bear all kinds of loads at the same time, it is the largest one of the four structural products with large axle and radial dimensions and firm structure. It is especially suitable for heavy machinery requiring larger diameter, such as bucket wheel stacker and reclaimer, wheel crane, marine crane, port crane, ladle turret and large tonnage truck crane. Heavy machinery and so on.
The slewing bearing can rotate independently in three directions; the slewing bearing has simple, compact and reasonable structure; and the slewing bearing has high cost performance, is convenient to maintain, and satisfies the requirements of accuracy, bearing and multi-function of the device

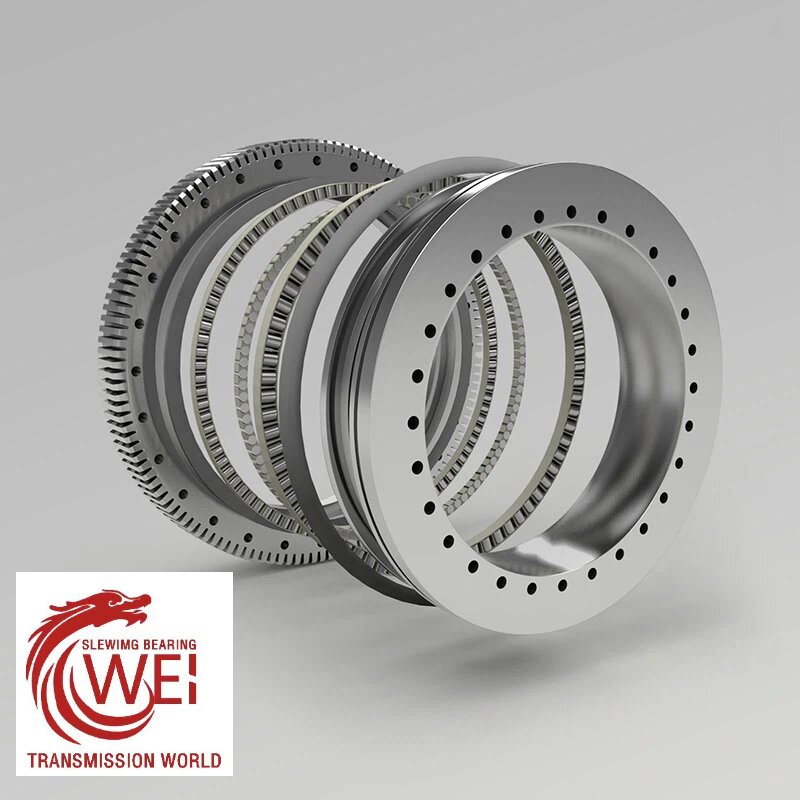

Three-row roller slewing bearing is equipped with seat-rings, upper or bit. Neither orbit and radial orbit is seperated individually, it makes the load of each row of the rollers can be confirmed, making it can undertake all kinds of different load simultaneously. Three row roller slewing bearing’s carring capacity is the biggest among four models and the axial and radial size arre rather large to some extent, the structure of the three row roller slewing bearing ring is very firm.
Gear precision grade OF slewing bearing :
Slewing bearing its gear precision grade should be between 7 to 11, which determines the smoothness of the slewing bearing drive, load distribution uniformity and transmission accuracy. The higher the slewing bearing gear precision, the more intensive the mesh tooth surface contact spots, so that the noise value is reduced, the smoothness of operation improved.
The contact and bending strength of gears under ultimate and fatigue loads were calculated and verified according to ISO6336-1:2006, ISO6336-2:2006 and ISO6336-3:2006 respectively. Sf is 1.48 and the gear mesh clearance is adjusted for the highest point of radial run out of the slewing bearing gear pitch circle. The minimum tooth clearance is typically 0.03 to 0.04x modulus, and the gear mesh clearance of the pinion gears on the entire circumference needs to be re-checked after final fastening of the slewing bearing
Single-row four-point contact ball slewing ring internal ball machining accuracy and internal raceway machining accuracy is not high, or there are quality defects and lack of lubricating oil in the raceway roller and spacer collision, directly affect the smooth operation of the slewing ring and noise, so when checking the slewing ring defects, sometimes by replacing the ball to reduce the frequency of failure.
Due to the gear under load after a long working time, there will be a small piece of metal or strip of metal near the pitch line, pitting or gnawing metal chips off, the formation of pitting or teeth. The slewing bearing tooth surface pitting with the increase in working time and expanding so that the slewing bearing mesh tooth damage, tower crane rotary noise and impact increases, the cycle of impact down the metal particles and accelerate the wear of the slewing ring tooth surface, forming a vicious cycle. In addition, the manufacturing and assembly of the starter motor in the slewing ring mechanism has its own defects to produce impact jitter, and the engagement process of the drive wheel with the slewing bearing is unstable, which also increases the frequency of jitter and reverberation noise decibels.
