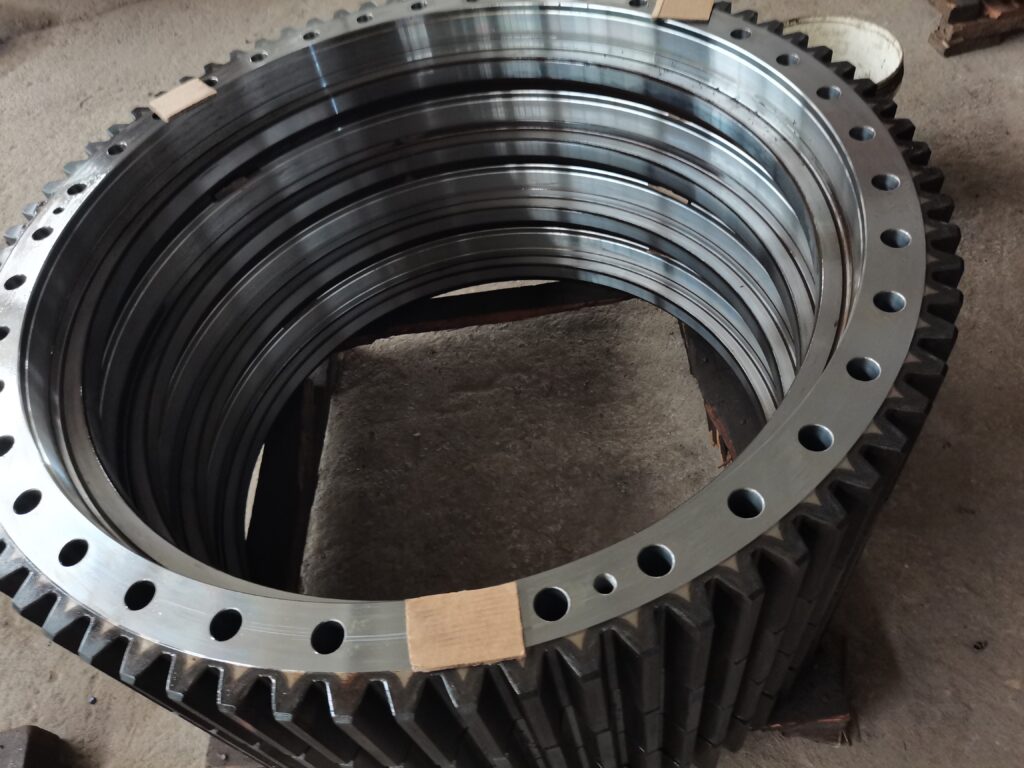

1. Three row roller slewing bearing composed three seat rings
2. Three row roller slewing bearing has heavy duty
3. Three row roller slewing bearing is a load maximum capacity.

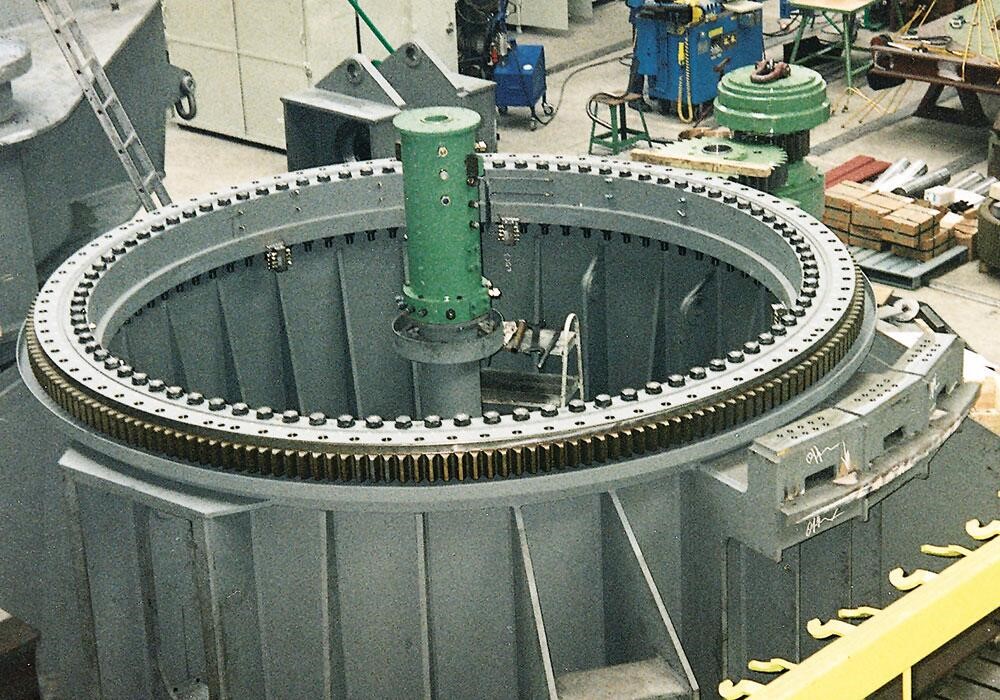

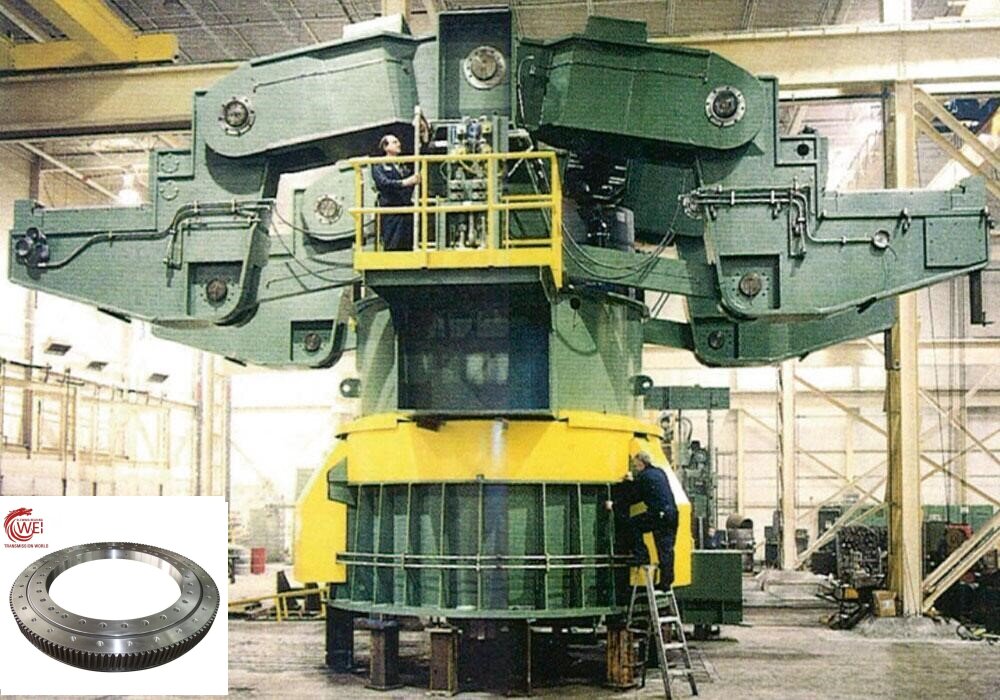

Longwei slewing bearing provide the customer with the heavier loading rate for fixed turntable platform, you can consider the three rows slewing bearing while the normal types slewing bearing cannot reach your targets. It can provide the perfect solution for the proceeding of Radar, material handling equipment, shield machine, steel ladle, etc.
Note:
- n1 is No. of lube holes, the user can specify the lube hole position.
- n-φ can be changed to threading holes, hole diameter M, thread depth 2M.
- There are standard products in the catalog, and the inner and outer diameters are random tolerances. If there is a locating requirement for slewing bearing, please indicate the site and tolerance.
- It is standard type of our products, if you need more please contact with engineer.
| Products discription | |||
|---|---|---|---|
| Model Number: | 133.40.1250 | Brand name | longwei |
| Production Experience | Since 2004 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory |

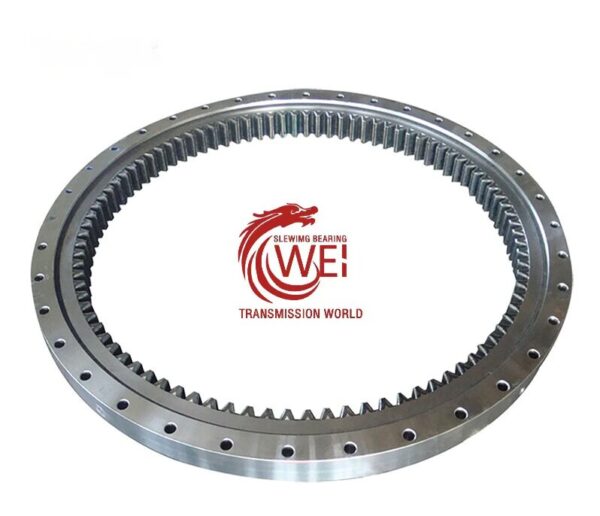

| Feature: | THREE ROW ROLLER | Gear Options: | Internal Gear |
| Material: | 50Mn/42CrMo/Customized | Seals Type: | Nitrile Rubber or as requirement |
| MOQ | 1 set | CERTIFICATE: | ISO9001:2008/SGS |
| Bore Diameter | 1055 mm | Outside Diameter | 1445mm |
| Operating tempereature: | -30°C +70°C | Hardness: | 55-62HRC |
| Product Name: | Three row roller with internal Gear Slewing Bearing | Service: | OEM Service.Design Service |
| Net Weight : | 1200kgs | Rolling element: | Roller & Spacer |
| Warranty Period | 1 year | Testing | In house or third party |
| MOQ | 1 SET | Size | Standard OR Customized |
| Height | 220 mm | H.S. Code | 848210900 |
| Packaging Details | 1.First lubricated, Second circled with plastic film,kraft paper,blue belt,then packaged inwooden case,last gathered in Wooden pallet.2 According to your requirements | Product Type: | Three Row Roller |
The three-row roller slewing bearing has three rows of independent rollers, the direction of which is perpendicular to the direction of the load transmitting, the top and bottom rollers holding the axial load, and the middle roller loading the radial load.Longwei slewing bearing provide the customer with the heavier loading rate for fixed turntable platform, you can consider the three rows slewing bearing while the normal types slewing bearing cannot reach your targets.
Longwe Transmission slewing bearing team is committed to keep the spirit of continuous improvement and focus our strategy of strict quality control standards, quick response, prompt delivery and low price.We look forward to working on all of our customers’ growing demands. Our ability to optimize the bearing design for your specific needs is unparalleled and we will assist you throughout the design, manufacturing and implementation process.
Products type | 1.single – row four – point contact ball |
Special services | 1.slewing bearing design |
Business type | manufacturer,trading company |
Advantages | 1.ISO 9001:2008 certificate,12 years experience2.High qualified material,low MOQ,excellent quality,competitive prices, |
Material | 50Mn/42CrMo or as your requirements |
Package | 1.First lubricated, Second circled with plastic film,kraft paper,blue belt,then packaged inwooden case,last gathered in Wooden pallet.2 According to your requirements
|
Delivery time | 1.For general product , our delivery time need only 5 days is enough (goods in stock).2.If you have special technical requirements or need additional processing,we first rder need only 45 ys, if that is roller continuous order, our delivery time only need 35 ys.
|
Application fields | Mine machine, port hoisting machine, port oil transfer equipment onshore and offshorecrane,excavator,concrete machine,paper machine, plastic and rubber machine, weavemachine, steel plant, electronic power plant, wind power generator, other construction and industry machines or equipment.
|
We supplied high quality product & good service to every end user and valued distributors all over the world. We’ve enjoyed a very good reputation up to now.
Our manufacturing standard is according to machinery standard JB/T2300-2011, we also has been found the efficient Quality Management Systems(QMS) of ISO 9001:2015 and GB/T19001-2008. We devote ourselves to the R &D of customized slewing bearing with high precision,special purpose and requirements and has acquired certificate of China Classification Society .
If you have any questions, pls do not hesitate to contact us.
FAQ :
1 LW Slewing Bearing Heat Treatment
Heat Gear Slewing Bearings are in the majority of cases supplied with spur tooth. Stub teeth also is ok.There are two kinds of tooth hardening. They are normalizing and tempering, According to the different applications, there are two ways of quenching. They’re whole tooth quenching and single-tooth quenching. Single-tooth quenching can be divided into tooth surface & root quenching and tooth surface quenching.
2 . The Calculation of Slewing Bearing.
Static load capacity
The determined loads must be multiplied with a factor fstat allocated to the application. The product Fa’ or Mk’ must be below the static critical load curve of the selected bearing.
With regard to radial loads in load combinations
Fa = axial load
Fr = radial load
Mr = tilting moment
3 Protection Against Corrosion
We make Protection Against Corrosion on surface of bearing,and make couple of packing paper.
4.Customize.
Yes,we have professional technical terms.
5.Warranty:
General 1 year.
- Reliable reputation.
