The slewing bearing used by SANY ST85F Forestry Industries machine is a single-row ball slewing bearing with internal gear, and the teeth are quenched.
The slewing bearing used by SANY ST85F Forestry Industries machine is required to carry a large axial force, overturning moment and gear circumferential force, and has higher requirements on the clearance, installation size and material of the slewing bearing. Selecting a suitable slewing bearing can effectively improve the safety and stability of the equipment, and tooth quenching can improve the wear resistance of the teeth, thereby increasing the service life of the slewing bearing.
Gear Heat Treatment
Special heat treatment design is carried out according to the different needs of specific industries for gears, mainly including induction single-tooth quenching and induction-type integral tooth quenching. Single tooth quenching is divided into tooth surface quenching and tooth surface and root quenching. After quenching, tempering treatment is carried out to make the surface hardness and the depth of the hardened layer meet the design standards. The most advantageous process is the special process of integral tooth quenching, which can improve the transmission efficiency and increase the wear resistance and impact resistance of the tooth surface, so as to meet the needs of customers.
The raceway heat treatment of the slewing bearing is realized by induction heat treatment technology. Longwei transmission Slewing Bearing has advanced heat treatment equipment (processing equipment and testing equipment) and scientific processing technology, so that the depth and hardness of the hardened layer conform to JB /T2300-2018 slewing bearing standard.
The inner and outer gears of the slewing ring are directly toothed on the inner or outer ring, and are processed by a gear hobbing machine or a gear shaper. If the working environment is loaded, it needs to be quenched. The internal gear slewing ring: the overall appearance is relatively neat, There is no need to install a safety cover at the meshing part of the gear and the slewing ring. The gear has better dust resistance, longer retention time by adding lubricant, and lower transmission contact stress of internal gear meshing, less wear and longer service life.
Raceway heat treatment and tooth heat treatment are the biggest advantages of longwei transmission slewing bearing co.,ltd.

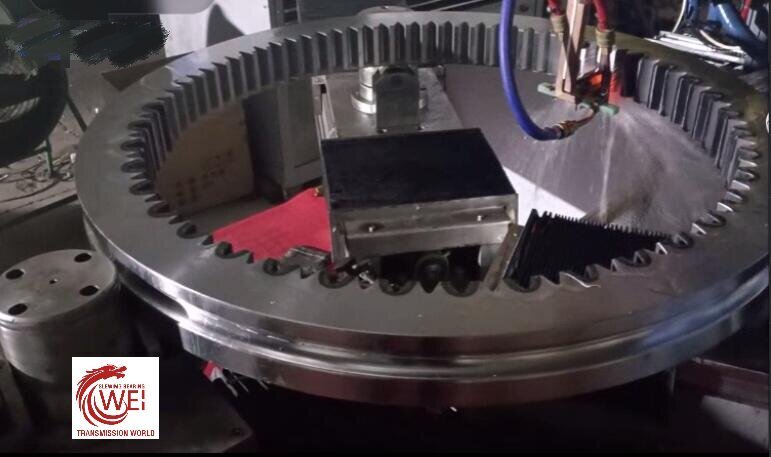

Tooth heat treatment is an important process in the processing of slewing bearings, and the application of some products requires relatively high hardness of the tooth surface. Through high-frequency induction hardening, the bearing tooth surface can be hardened, effectively increasing the strength and service life of the product. We can perform single tooth quenching or overall quenching according to the modulus and product design requirements.
When continuous induction heating quenching is performed on the raceways of the slewing ring gear and the rolling ring, attention should be paid to the connection between the starting point and the end point of the slewing ring quenching. If the slewing bearing quenching belt overlaps, cracks are likely to occur. For this reason, a certain distance should be maintained at the head-to-tail quenching connection of the slewing ring.
Advantage of Internal tooth slewing bearing single row ball :
- Factory supply Inner gear slew bearing
2.Dust resistance,longer retention time
- Very competitive price for you to seize your customer!
LONGWEI Transmission slewing bearing team is committed to keep the spirit of continuous improvement and focus our strategy of strict quality control standards, quick response, prompt delivery and low price.We look forward to working on all of our customers’ growing demands. Our ability to optimize the bearing design for your specific needs is unparalleled and we will assist you throughout the design, manufacturing and implementation process.
Products type | 1.single – row four – point contact ball |
Special services | 1.slewing bearing design |
Business type | manufacturer,trading company |
Advantages | 1.ISO 9001:2008 certificate,12 years experience2.High qualified material,low MOQ,excellent quality,competitive prices, |
Material | 50Mn/42CrMo or as your requirements |
Package | 1.First lubricated, Second circled with plastic film,kraft paper,blue belt,then packaged inwooden case,last gathered in Wooden pallet.2 According to your requirements
|
Delivery time | 1.For general product , our delivery time need only 5 days is enough (goods in stock).2.If you have special technical requirements or need additional processing,we firstorder need only 25 days, if that is roller continuous order, our delivery time only need 12 days.
|
Application fields | Mine machine, port hoisting machine, port oil transfer equipment onshore and offshorecrane,excavator,concrete machine,paper machine, plastic and rubber machine, weavemachine, steel plant, electronic power plant, wind power generator, other construction and industry machines or equipment.
|
We supplied high quality product & good service to every end user and valued distributors all over the world. We’ve enjoyed a very good reputation up to now.
FAQ
1: How to order?
Please refer to the help under the single payment.
2.What are the shipping methods?
Ocean shipment to the port close to your city; Air shipment to the airport close to your company; Door to door service by international express.
3.When can I get the price?
We usually quote within 12 hours after we get your inquiry. If urgent to get the price, please call us or tell us by email , we will regard your inquiry priority.
4.You are a trader or a manufacturer?
We are an industry and trade integration business, our factory located on Xuzhou City.
5.How about the payment terms?
We usually accept T/T or L/Cat sight . other terms also could be negotiated.
6.What is your minimum order?
It depends on what you are buying. Normally, our minimum order is 1pcs.
7.What is your delivery time?
If there are any parts in stock , our delivery time is only 3-7 days. If our standard model,the delivery time is around 25 days,if non-standard model,the delivery time is 38~45 days.
