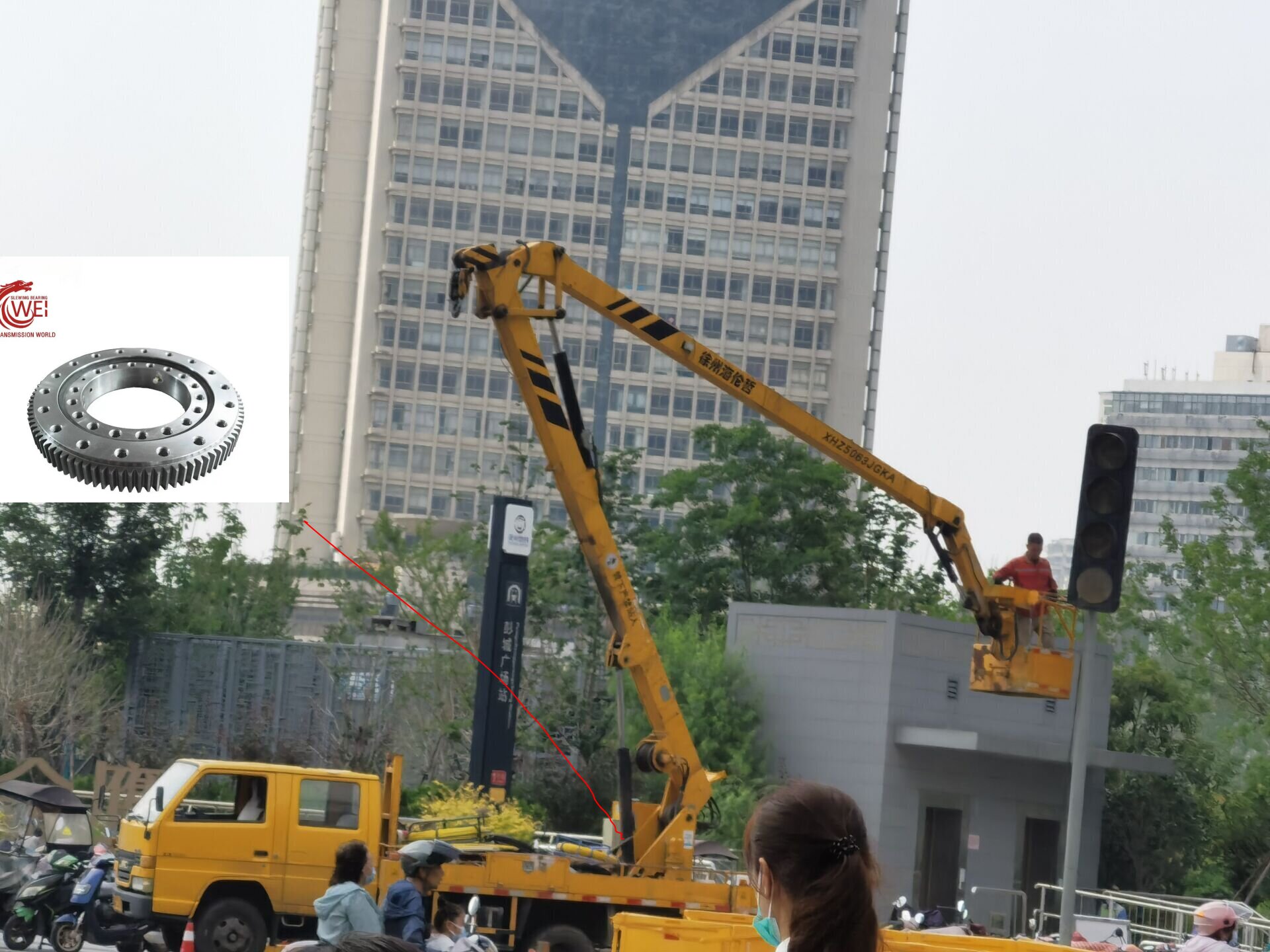

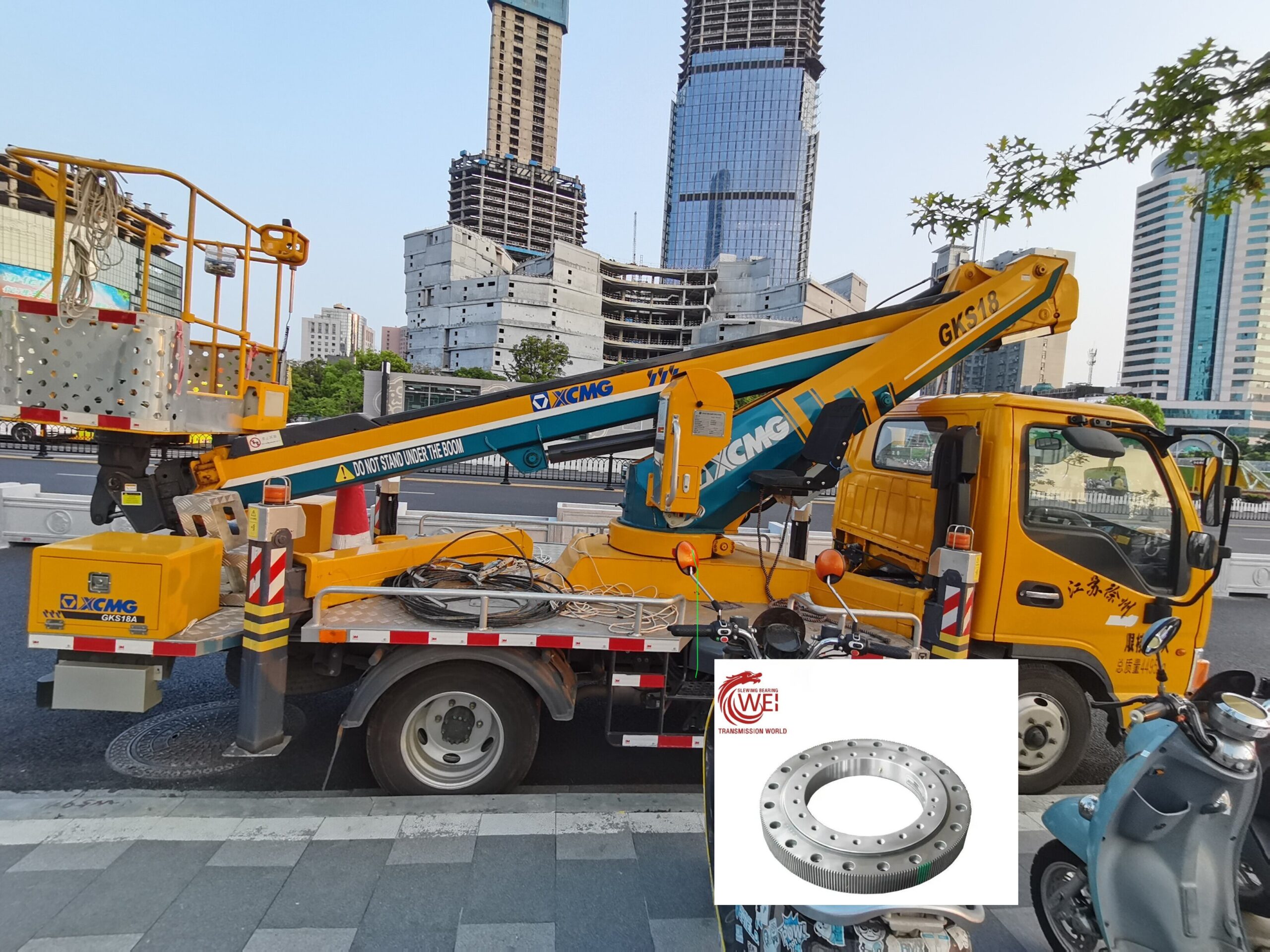

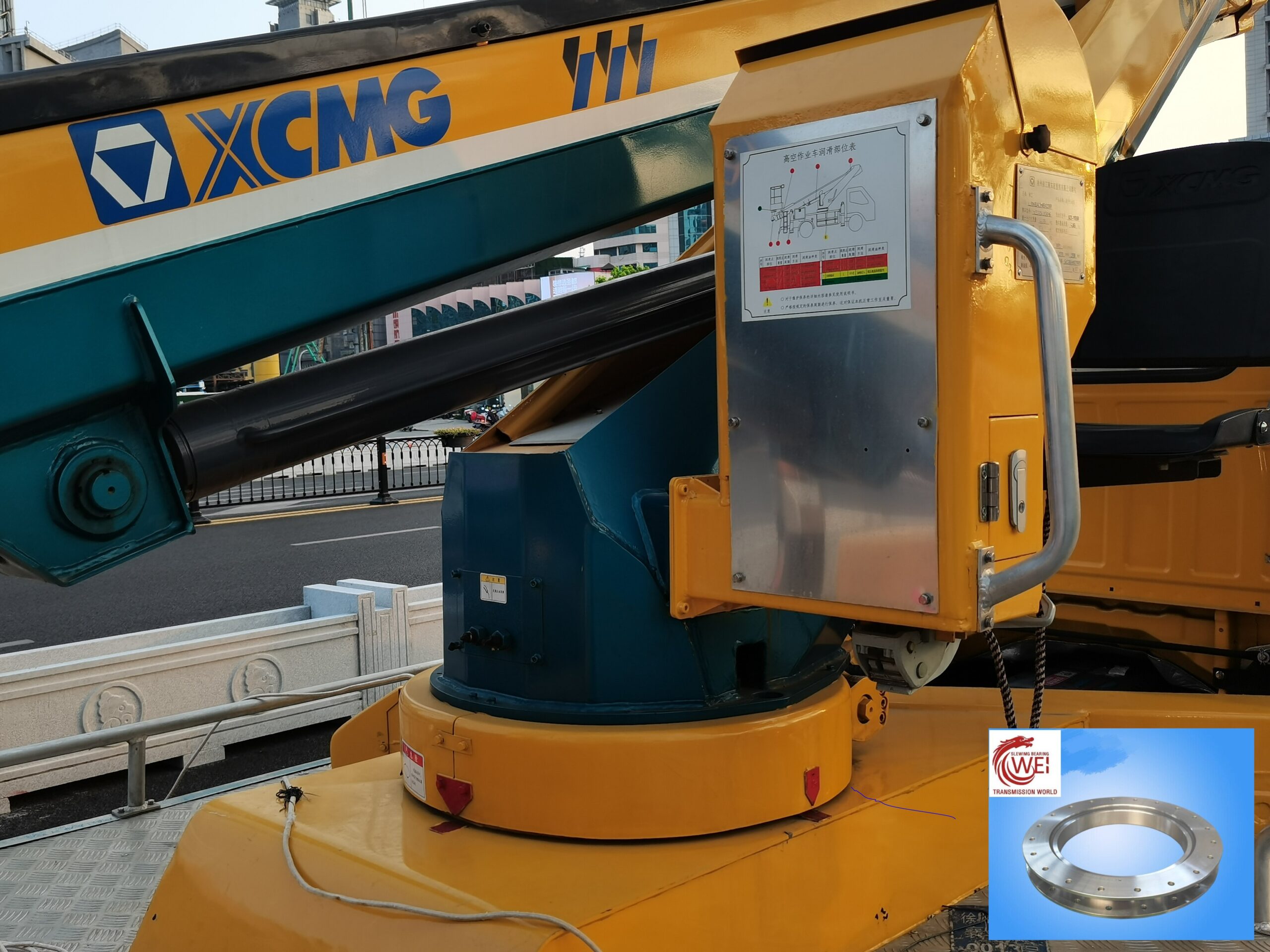

The aerial work platform are usually use slewing bearing, and the forward and reverse directions can be selected according to the needs of the operation. The slewing part of the slewing mechanism and the work platform are both installed on the slewing support, that is, the turntable. The driving device is fixed on the turntable, and a driving gear is installed at the lower end. The slewing bearing is composed of a turntable and a ring gear seat fixedly connected with the frame. The slewing mechanism consists of a turntable, a cycloid hydraulic motor, a worm gear reducer, a slewing support, and a pinion gear. The outer gear ring of the slewing bearing is fixed on the chassis, and the inner ring is connected with the turntable. The rotation of the cycloidal motor drives the rotation of the worm gear reducer, the rotation of the worm gear drives the pinion gear connected to it, and the rotation of the turntable is realized by the engagement of the pinion gear and the oute

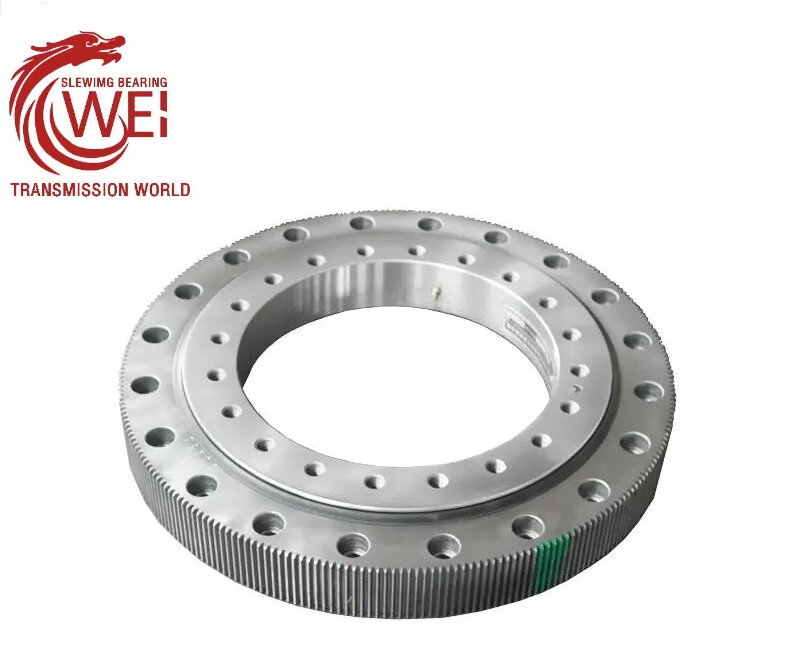

The Single Row Four Point Contact Ball Slewing Bearing
The Single Row Four Point Contact Ball Slewing Bearing is composed of 2 seat rings.It features compact in design,and light in weight.The balls contact with the circular race at four points,via which the axial force,radial force and resultant moment may be born simultaneously.
Note
1. n1 is the nos of lubricating holes.Oil cup M10×1JB/T7940.1~JB/T7940.2.The Oil nipple’s location can be change according to the user’s application.
2. n-φcan change to tapped hole,the diameter of tapped hole is M,depth is 2M.
3. The tangential tooth force in the form is the max tooth force,the nominal tangential tooth force is 1/2 of the max one.
4. “K” is addendum reduction coefficient.
Our factory, longwei slewing bearing co.,ltd can produce both standard and non-standard products.
As meeting customers’ demand is our service principle.
We provide spot, generation processing, drawing processing, sample processing, free design and other services.
- Slewing bearing can bear axial, radial load and tilting moment load simultaneously. It can be combined with pinion, planetary gearbox and motors…
We have strict production schedule to assure the delivery time, the production schedule as below:
- Slewing bearing can bear axial, radial load and tilting moment load simultaneously. It can be combined with pinion, planetary gearbox and motors…
- A. Forging purchase period: 15-20 days
B. Production process:
1. Rough turning: 2-3 days
2. Raceway heat treatment: 2 days
3. Fine turning: 2 days
4. Gear cutting: 4-5 days
5. Drilling: 2-3 days
6. Final turning: 2 days
7. Assembling and Inspection: 2 days
C. Packing and delivery to Port: 3-5 days
Totally about 40-50days
The products are widely used in engineering machinery, building machinery, metallurgical and mining machinery, shipping port machinery, environmental protection machinery, light industry machinery, petroleum chemical machinery, engineering vehicle, war industry equipment and so on.
- A. Forging purchase period: 15-20 days
Our manufacturing standard is according to machinery standard JB/T2300-2011, we also has been found the efficient Quality Management Systems(QMS) of ISO 9001:2008
FAQ
1: How to order?
Please refer to the help under the single payment.
2.What are the shipping methods?
Ocean shipment to the port close to your city; Air shipment to the airport close to your company; Door to door service by international express.
3.When can I get the price?
We usually quote within 12 hours after we get your inquiry. If urgent to get the price, please call us or tell us by email , we will regard your inquiry priority.
4.You are a trader or a manufacturer?
We are an industry and trade integration business, our factory located on Xuzhou City.
5.How about the payment terms?
We usually accept T/T or L/Cat sight . other terms also could be negotiated.
6.What is your minimum order?
It depends on what you are buying. Normally, our minimum order is 1pcs.
7.What is your delivery time?
If there are any parts in stock , our delivery time is only 3-7 days. If our standard model,the delivery time is around 25 days,if non-standard model,the delivery time is 38~45 days.
