Selecting the appropriate slewing bearing can effectively reduce the gap, carry a large overturning moment, make the equipment stable, and increase the service life.
Application principle of slewing bearing

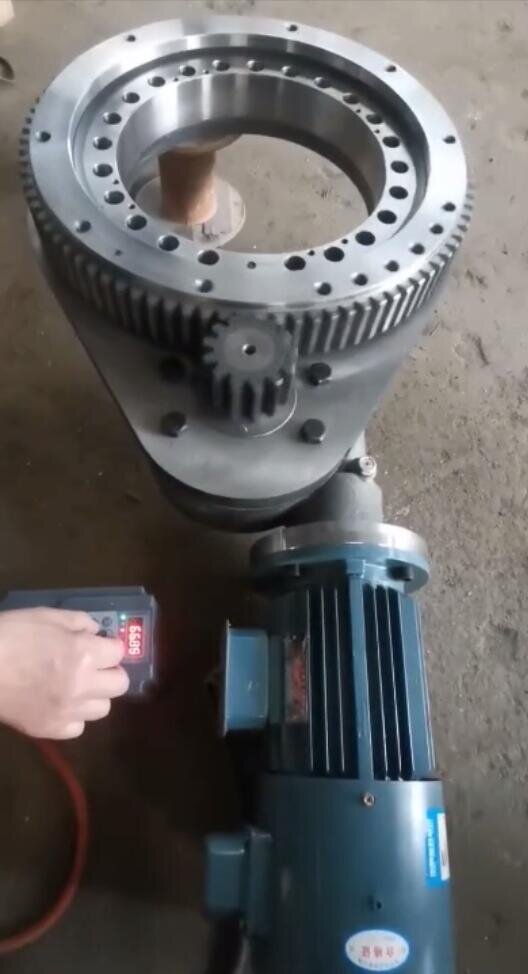

The motor or reducer drives the pinion to rotate, and the pinion drives the slewing bearing to rotate, so that the upper mechanism connected to it rotates accordingly.
Raceway heat treatment and tooth heat treatment are the biggest advantages of longwei transmission slewing bearing co.,ltd.
Â

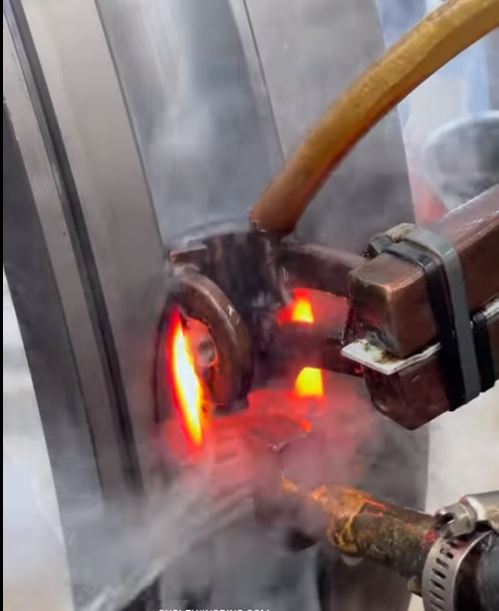

Tooth heat treatment is an important process in the processing of slewing bearings, and the application of some products requires relatively high hardness of the tooth surface. Through high-frequency induction hardening, the bearing tooth surface can be hardened, effectively increasing the strength and service life of the product. We can perform single tooth quenching or overall quenching according to the modulus and product design requirements.
When continuous induction heating quenching is performed on the raceways of the slewing ring gear and the rolling ring, attention should be paid to the connection between the starting point and the end point of the slewing ring quenching. If the slewing bearing quenching belt overlaps, cracks are likely to occur. For this reason, a certain distance should be maintained at the head-to-tail quenching connection of the slewing ring.
Longwei transmission  slewing bearing co.,ltd can quench the teeth according to customer requirements.
Â
Â
About Longwei
Provide you with customized industry solutions
More than ten years of production experience, strict quality control can be the guarantee of the best solution in the industry.
China’s leading supplier of slewing bearings, its products have passed ISO 9001 and CAPE certification, and has a number of product patents.
The flexibility of our dialogue and approach with our clients is combined with responsive design and development innovation to ensure exceptional delivery.
FAQ
Do you have any questions about our slewing bearing? Maybe you can find the answer below. If the answer below does not solve your problem, please contact us and our engineer will answer it for you.
1. Where is your slewing bearing manufactured?
Our slewing bearings are all manufactured in China. We not only have the ability to design and produce slewing bearings but the quality can also be guaranteed. At the same time, our slewing-bearing price is more favorable.
2. I don’t know which slewing bearing to use, can you choose for me?
Yes, of course, Each model has a parameter list on the website. You can choose the suitable slewing bearing according to these parameter lists. If you don’t know how to choose, you can get in touch with us and our engineers will work with you to choose the suitable product. We can also design a new slewing bearing solution for you according to your equipment.
3. Can I get your product catalog?
You can get our product catalog in the download or contact us, we will send the product catalog to you by email or other ways.
4. Can you customize products?
Yes, we can. Our engineers have very rich experience in slewing bearing design. On the customized slewing bearing page, you can see some special customized products designed by our engineers. These design solutions meet the special needs of many customers. Our engineers can also work with you to design a new slewing bearing.
5. Can you provide accessories?
Yes, we can provide matching spare parts such as motors, hydraulic motors, and encoders that are compatible with slewing bearings.
6. Can you provide a 3D model?
Yes. All our slewing bearings have 3D models, you can contact us to get them. At the same time, we can also provide CAD files and PDF files.
7. How long is your slewing bearing warranty period?
Our slewing bearing warranty time is 12 months. When you install, use, and store the slewing bearing, please refer to the slewing bearing instruction manual.
8. Can you choose the color of your slewing bearing?
Yes. Our slewing bearing is available in many colors. If you have special requirements, please tell our sales engineers, we are happy to provide services for you.
