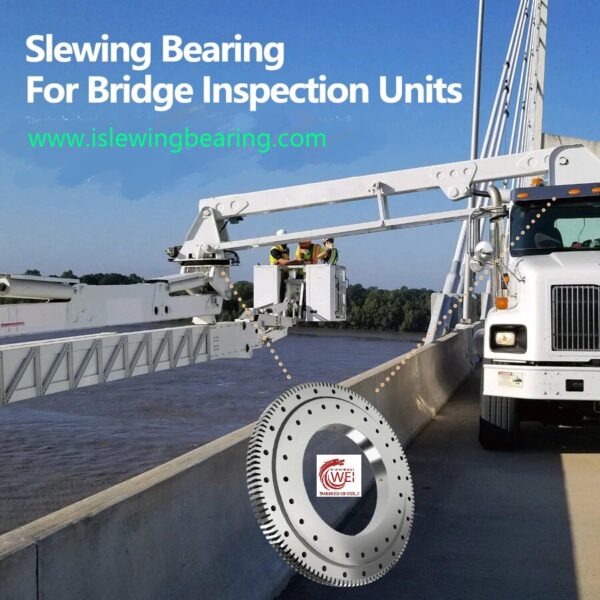

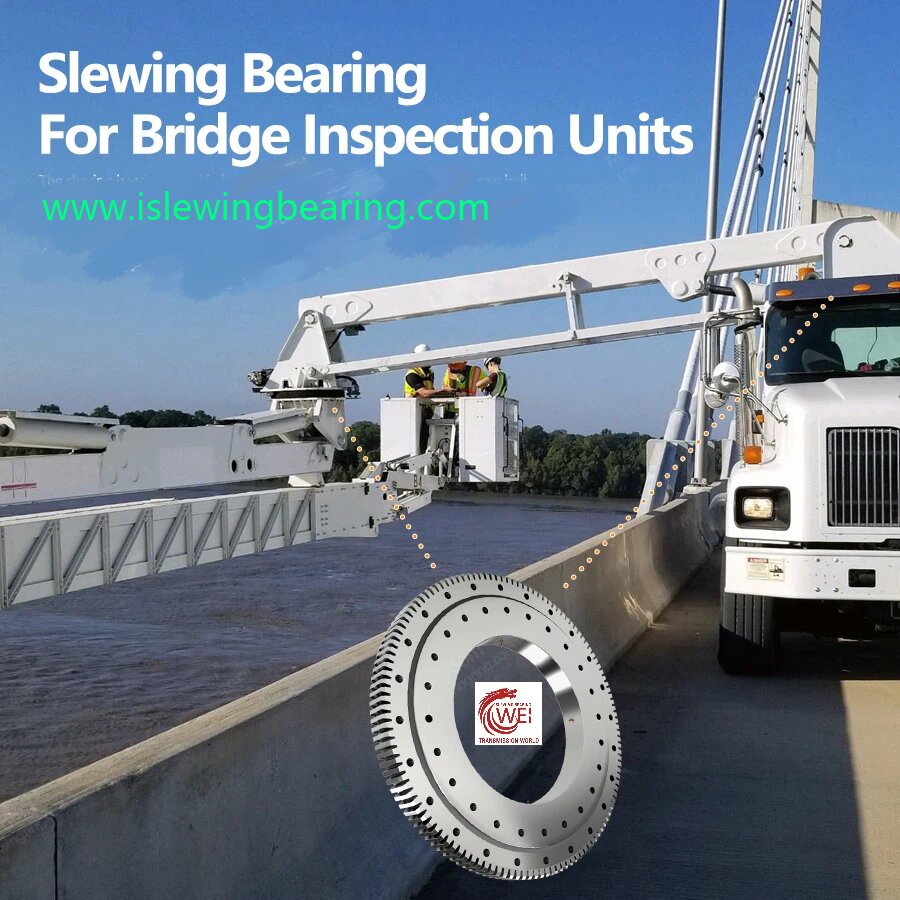

The slewing bearings used in bridge inspection vehicles are mainly single-row ball slewing bearings . The main function is to fix the boom, beam and other mechanisms and control the rotation of the control mechanism to carry a certain axial force and overturning moment.
The motor or reducer drives the gear to rotate, or the motor or hydraulic motor drives the worm to rotate, and the pinion or worm drives the slewing bearing to rotate, thereby driving the beams, arms and other mechanisms installed or connected to its base to rotate.
Selecting the appropriate slewing bearing can effectively increase the load, improve the safety performance and stability of the equipment, and increase the service life.
Slewing Bearing With External Gear
A Sslewing bearing or slewing ring is a rotational rolling-element bearing or plain bearing that typically supports a heavy but slow-turning or slow-oscillating load, often a horizontal platform such as a conventional crane, a swing yarder, or the wind-facing platform of a horizontal-axis windmill. Slewing bearing with External gear are often made with gear teeth integral with the inner or outer race, used to drive the platform relative to the base. We produce different slewing bearing with external gear.
1.What’s kinds of teeth type for slewing bearing rings with external gear we often make?
Our company provided you with standard teeth, British standard teeth, stub teeth, helical teeth, worm gear, synchronous pulley and sprocket.
2.What’s the module of tooth for slewing bearing with external gear we often make?
For common standard metric model tooth and British standard DP1.75、DP2、DP2.5、DP3、DP3.5、DP4、DP5、DP6、DP8、DP16、DP5/7、DP3/4、DP4/5, we all can make.
The precision of tooth machining is 8 grade,9 grade,10 grade.
3.Tooth heat treatment of slewing bearing with external gears
Tooth heat treatment of slewing bearing with external gear includes tooth surface quenching, tooth surface &tooth root quenching and full tooth quenching.
Technical parameters required for slewing bearing selection as below:
1).Slewing bearing load (Includes axial load, radial load and tilting moment)
2). Percentage of each load and its occupation time
3). Speed or number of revolutions of the slewing bearing under each load
4).Circumferential force acting on the gear
5).Dimensions of the slewing bearing
6). Other operating conditions
The material, compressive property, abrasive resistance and hardness of balls will affect the load condition and service life of slewing bearing. Longwei slewing bearing Co., Ltd purchase balls from suppliers with high quality, and we will conduct test for the compressive property, abrasive resistance and hardness to eurens the quality of balls will meet the requirement.
About Longwei
Provide you with customized industry solutions
More than ten years of production experience, strict quality control can be the guarantee of the best solution in the industry.
China’s leading supplier of slewing bearings, its products have passed ISO 9001 and CAPE certification, and has a number of product patents.
The flexibility of our dialogue and approach with our clients is combined with responsive design and development innovation to ensure exceptional delivery.
FAQ
Do you have any questions about our slewing bearing? Maybe you can find the answer below. If the answer below does not solve your problem, please contact us and our engineer will answer it for you.
1. Where is your slewing bearing manufactured?
Our slewing bearings are all manufactured in China. We not only have the ability to design and produce slewing bearings but the quality can also be guaranteed. At the same time, our slewing-bearing price is more favorable.
2. I don’t know which slewing bearing to use, can you choose for me?
Yes, of course, Each model has a parameter list on the website. You can choose the suitable slewing bearing according to these parameter lists. If you don’t know how to choose, you can get in touch with us and our engineers will work with you to choose the suitable product. We can also design a new slewing bearing solution for you according to your equipment.
3. Can I get your product catalog?
You can get our product catalog in the download or contact us, we will send the product catalog to you by email or other ways.
4. Can you customize products?
Yes, we can. Our engineers have very rich experience in slewing bearing design. On the customized slewing bearing page, you can see some special customized products designed by our engineers. These design solutions meet the special needs of many customers. Our engineers can also work with you to design a new slewing bearing.
5. Can you provide accessories?
Yes, we can provide matching spare parts such as motors, hydraulic motors, and encoders that are compatible with slewing bearings.
6. Can you provide a 3D model?
Yes. All our slewing bearings have 3D models, you can contact us to get them. At the same time, we can also provide CAD files and PDF files.
7. How long is your slewing bearing warranty period?
Our slewing bearing warranty time is 12 months. When you install, use, and store the slewing bearing, please refer to the slewing bearing instruction manual.
8. Can you choose the color of your slewing bearing?
Yes. Our slewing bearing is available in many colors. If you have special requirements, please tell our sales engineers, we are happy to provide services for you.
