Longwe Transmission  slewing bearing team is committed to keep the spirit of continuous improvement and focus our strategy of strict quality control standards, quick response, prompt delivery and low price.We look forward to working on all of our customers’ growing demands. Our ability to optimize the bearing design for your specific needs is unparalleled and we will assist you throughout the design, manufacturing and implementation process.

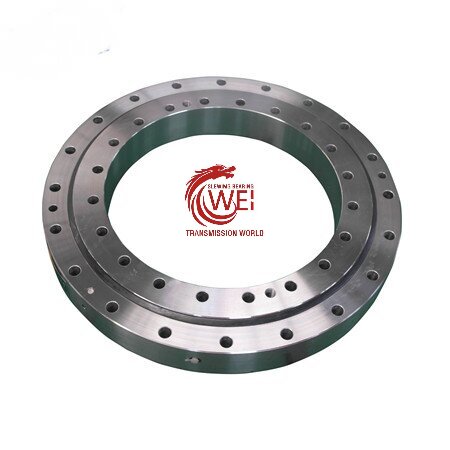

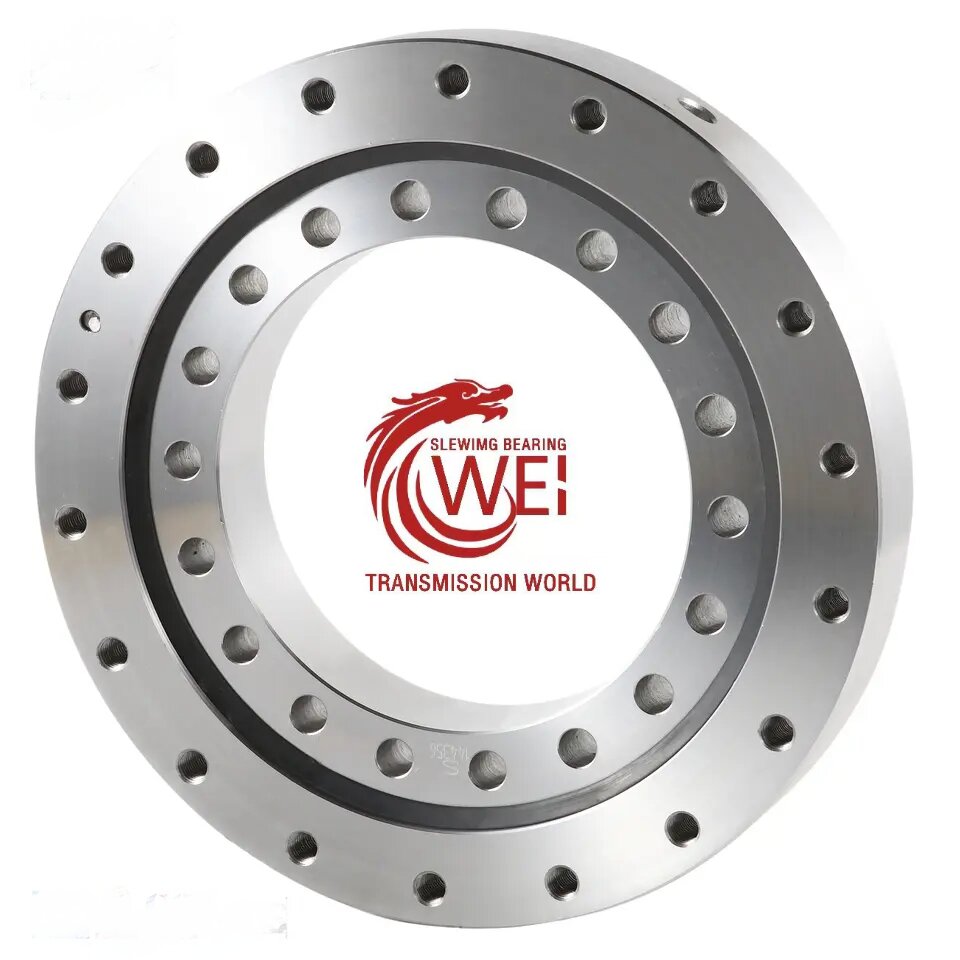

A slewing bearing or slew[ing] ring is a rotational rolling-element bearing or plain bearing that typically supports a heavy but slow-turning or slow-oscillating load, often a horizontal platform such as a conventional crane, a swing yarder, or the wind-facing platform of a horizontal-axis windmill. (To “slew” means to turn without change of place.)
Compared to other rolling-element bearings, slewing bearings are thin in section and are often made in diameters of a metre or more; the slewing bearings on the Falkirk Wheel are 4 metres diameter and fit over a 3.5 metre axle. Slewing bearings resemble oversize aircraft control surface bearings.

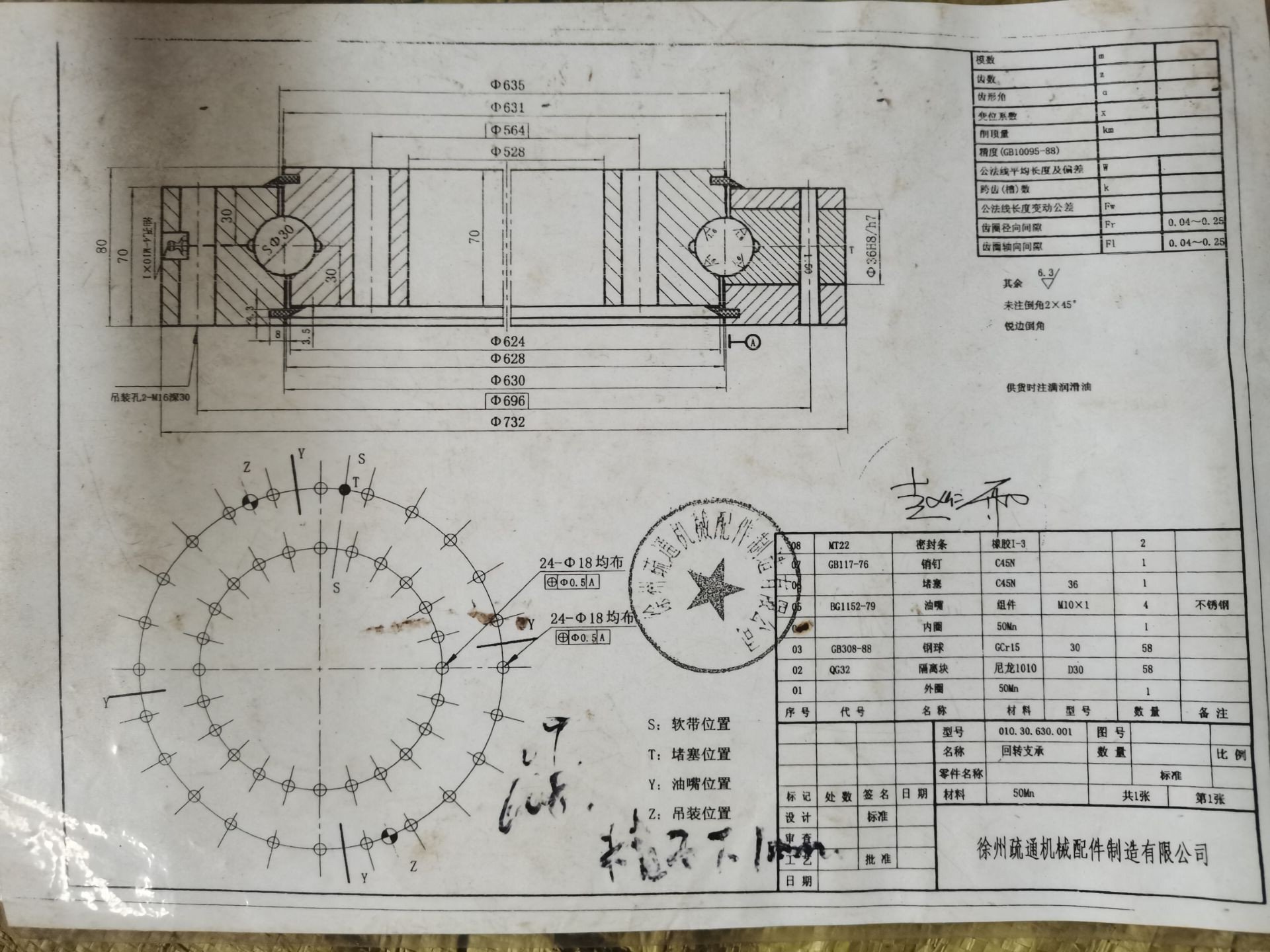

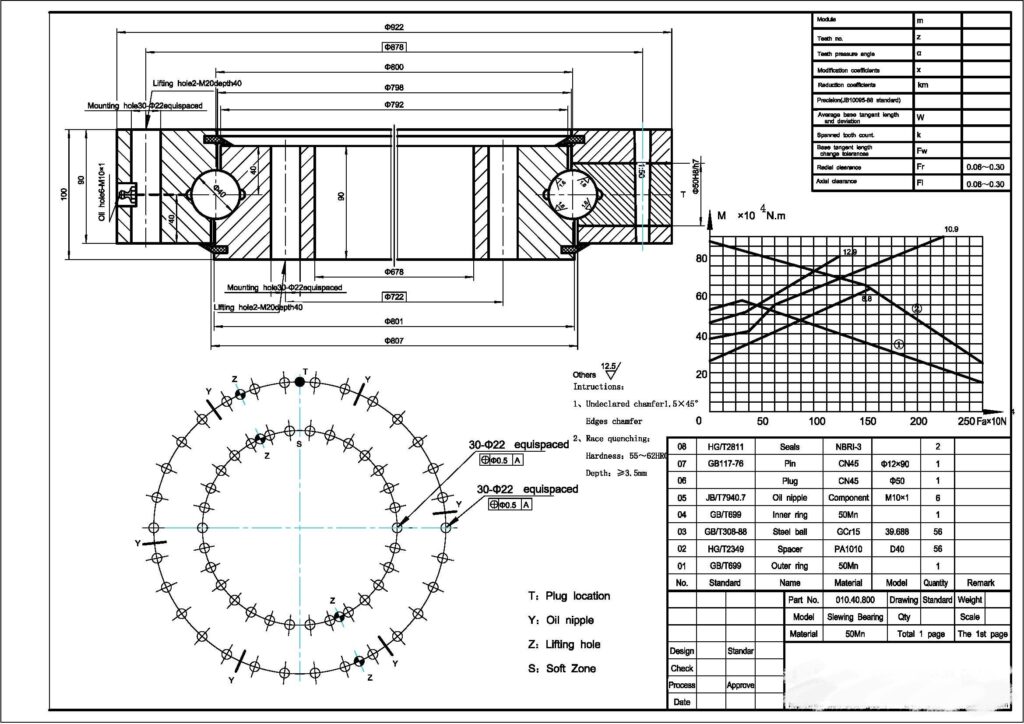

Note:
1. n1 is the nos of lubricating holes.Oil cup M10×1JB/T7940.1~JB/T7940.2.The Oil nipple’s location can be change according to the user’s application.
2. n-φcan change to tapped hole,the diameter of tapped hole is M,depth is 2M.
3. The tangential tooth force in the form is the max tooth force,the nominal tangential tooth force is 1/2 of the max one.
4. “K” is addendum reduction coefficient.
Technical parameters required for slewing bearing selection as below:
1).Slewing bearing load (Includes axial load, radial load and tilting moment) Â
2). Percentage of each load and its occupation time
3). Speed or number of revolutions of the slewing bearing under each load
4).Circumferential force acting on the gear
5).Dimensions of the slewing bearing
6). Other operating conditions
The material, compressive property, abrasive resistance and hardness of balls will affect the load condition and service life of slewing bearing. Longwei  slewing bearing Co., Ltd purchase balls from suppliers with high quality, and we will conduct test for the compressive property, abrasive resistance and hardness to eurens the quality of balls will meet the requirement.
About Longwei
Provide you with customized industry solutions
More than ten years of production experience, strict quality control can be the guarantee of the best solution in the industry.
China’s leading supplier of slewing bearings, its products have passed ISO 9001 and CAPE certification, and has a number of product patents.
The flexibility of our dialogue and approach with our clients is combined with responsive design and development innovation to ensure exceptional delivery.
FAQ
Do you have any questions about our slewing bearing? Maybe you can find the answer below. If the answer below does not solve your problem, please contact us and our engineer will answer it for you.
1. Where is your slewing bearing manufactured?
Our slewing bearings are all manufactured in China. We not only have the ability to design and produce slewing bearings but the quality can also be guaranteed. At the same time, our slewing-bearing price is more favorable.
2. I don’t know which slewing bearing to use, can you choose for me?
Yes, of course, Each model has a parameter list on the website. You can choose the suitable slewing bearing according to these parameter lists. If you don’t know how to choose, you can get in touch with us and our engineers will work with you to choose the suitable product. We can also design a new slewing bearing solution for you according to your equipment.
3. Can I get your product catalog?
You can get our product catalog in the download or contact us, we will send the product catalog to you by email or other ways.
4. Can you customize products?
Yes, we can. Our engineers have very rich experience in slewing bearing design. On the customized slewing bearing page, you can see some special customized products designed by our engineers. These design solutions meet the special needs of many customers. Our engineers can also work with you to design a new slewing bearing.
5. Can you provide accessories?
Yes, we can provide matching spare parts such as motors, hydraulic motors, and encoders that are compatible with slewing bearings.
6. Can you provide a 3D model?
Yes. All our slewing bearings have 3D models, you can contact us to get them. At the same time, we can also provide CAD files and PDF files.
7. How long is your slewing bearing warranty period?
Our slewing bearing warranty time is 12 months. When you install, use, and store the slewing bearing, please refer to the slewing bearing instruction manual.
8. Can you choose the color of your slewing bearing?
Yes. Our slewing bearing is available in many colors. If you have special requirements, please tell our sales engineers, we are happy to provide services for you.
