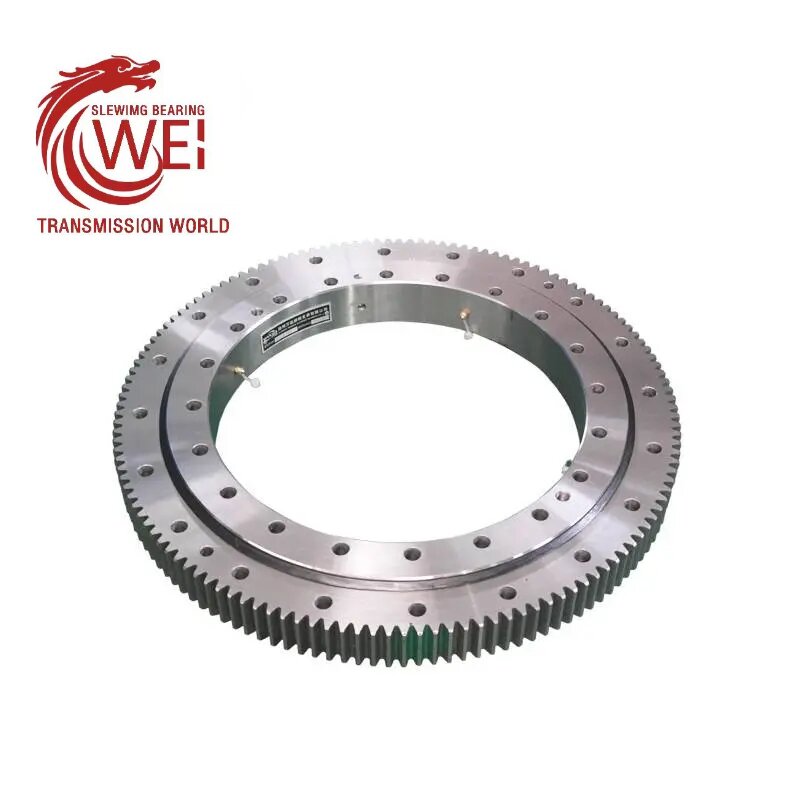

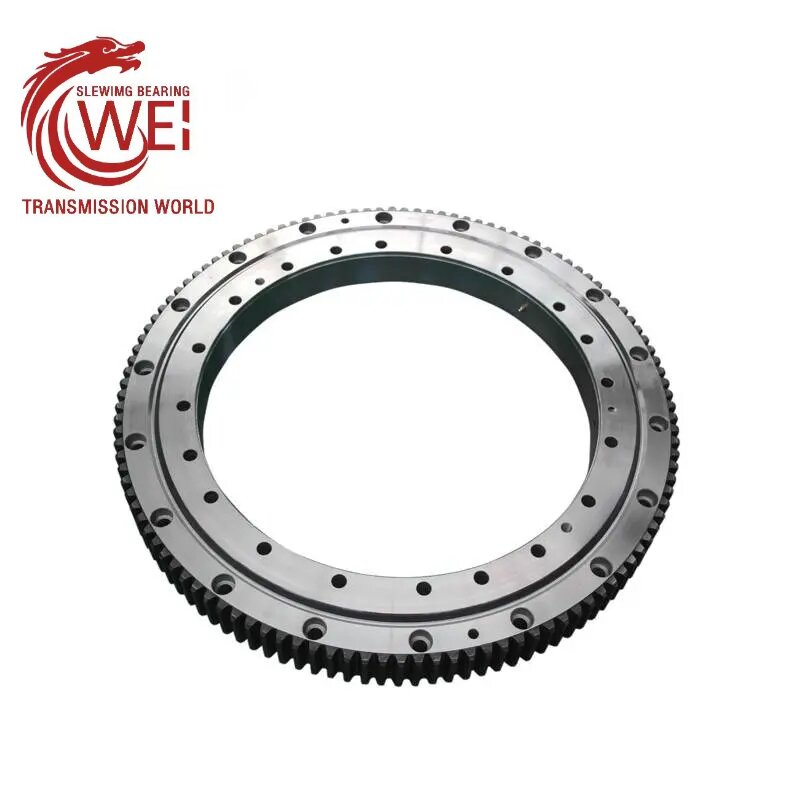

OEM External Gear four Point Contact Ball Slewing Ring for Car Parking System

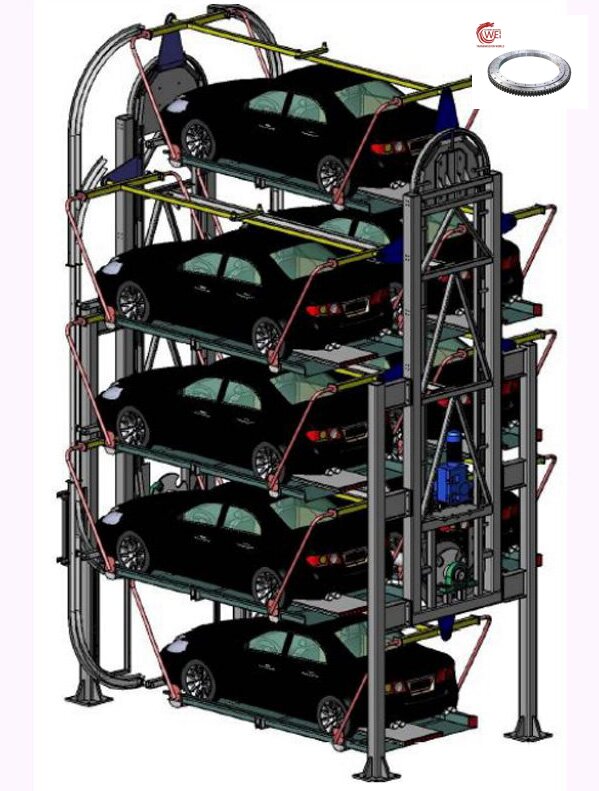

Single row Four point contact ball slewing bearing is radial single-row angular contact ball bearings designed to support axial loads acting in both directions.It can withstand up to a fraction of the radial load of the axial load. The contact angle of the four point contact ball slewing bearing designed by longwei is 35° or 45°. The inner ring is a flat inner ring. This allows a larger number of balls to be placed in the bearing, which gives the bearing a higher load bearing capacity. The slewing bearing with external gear is widely used in car parking system with outer diameter about 1-2 meter.

Longwei Transmission Slewing bearing has rich experience in the design of car parking slewing bearing. We are able to design the bearing according to customer’s requirement and load conditions.

Longwei delivers custom-engineered solutions to customers in many countries.

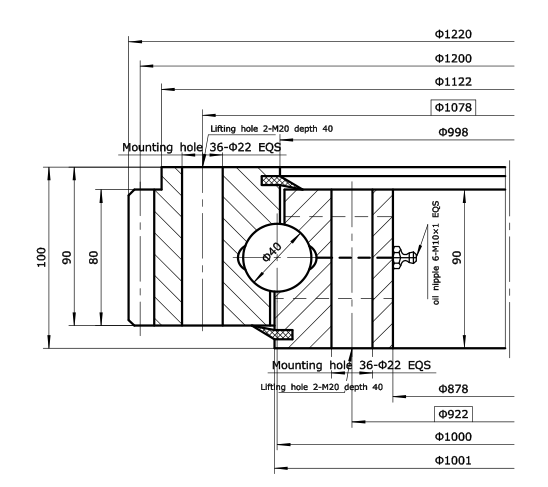

You can see our catalogue in the the below table :

Note:

n1 is the nos of lubricating holes.Oil cup M10×1JB/T7940.1~JB/T7940.2.The Oil nipple’s location can be change according to the user’s application.
2. n-φcan change to tapped hole,the diameter of tapped hole is M,depth is 2M.
3. The tangential tooth force in the form is the max tooth force,the nominal tangential tooth force is 1/2 of the max one.
4. “K” is addendum reduction coefficient.
Advantage:
1. Composed of two seat rings
2. Compact structure and light weight
3. High precision, small clearance

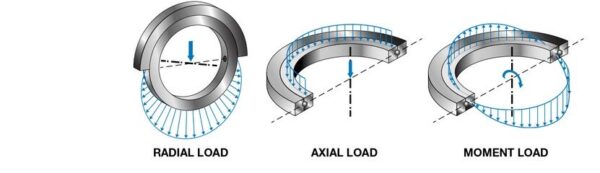

4. Can bear axial force, resultant moment and large radial force
Product Detail
Longwei transmission Slewing Bearing Co.,Ltd. is a professional manufacturer and exporter of slewing bearing, slewing drives, which are mainly applied in port machinery, mining machinery, welding machinery, construction vehicles, modular vehicles, single or dual axis solar tracking systems, and small wind power systems etc. Slewing bearing/drives can bear axial force, radial force and tilting moment.The diameter range of slewng bearing can be from 200 mm to 5000 mm For slewing drive, there are nine (9) different sizes available from 3″ to 25″ with more than 60 models to meet both regular and precise tracking requirements in PV, CPV and .solar thermal power tracking fields.For detailed information please download our catalogue.

FAQ
1: How to order?
Please refer to the help under the single payment.
2.What are the shipping methods?
Ocean shipment to the port close to your city; Air shipment to the airport close to your company; Door to door service by international express.
3.When can I get the price?
We usually quote within 12 hours after we get your inquiry. If urgent to get the price, please call us or tell us by email , we will regard your inquiry priority.
4.You are a trader or a manufacturer?
We are an industry and trade integration business, our factory located on Xuzhou City.
5.How about the payment terms?
We usually accept T/T or L/Cat sight . other terms also could be negotiated.
6.What is your minimum order?
It depends on what you are buying. Normally, our minimum order is 1pcs.
7.What is your delivery time?
If there are any parts in stock , our delivery time is only 3-7 days. If our standard model,the delivery time is around 25 days,if non-standard model,the delivery time is 38~45 days.
