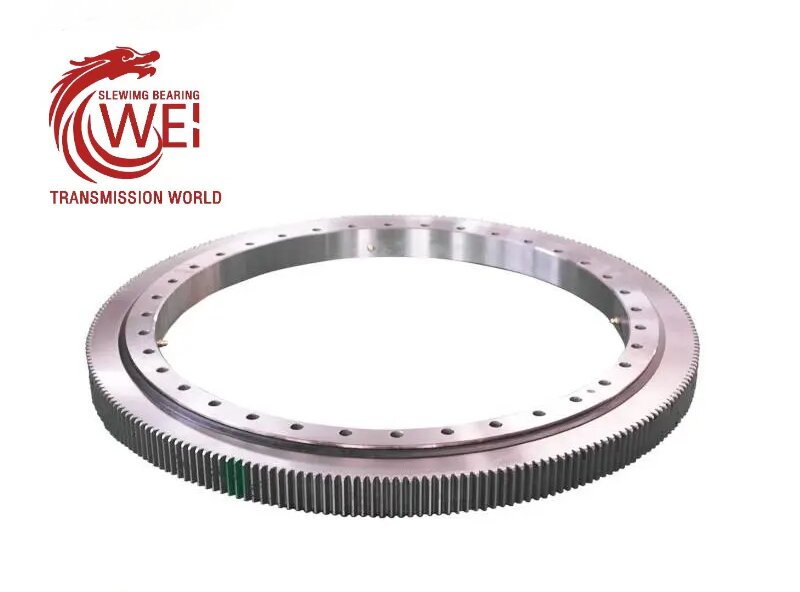

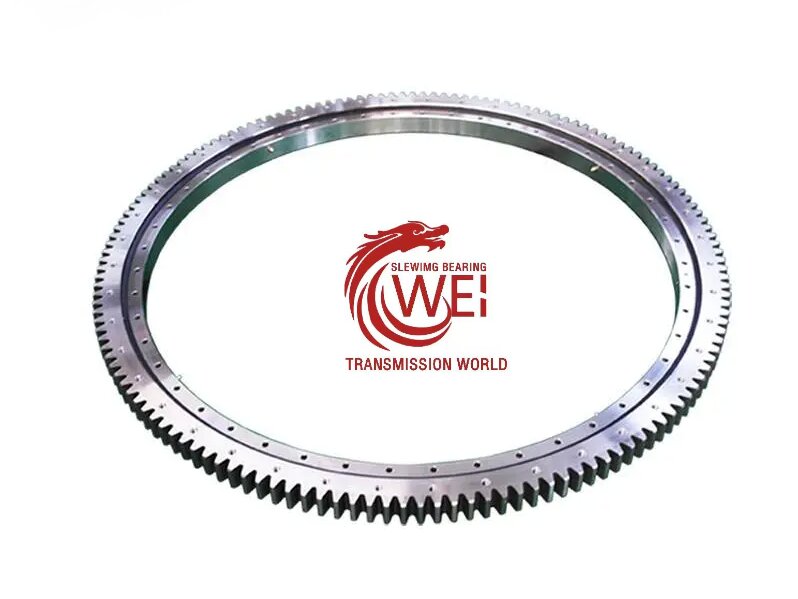

Light type Slewing Bearing with External gear big mould (LW-061) for Food machinery

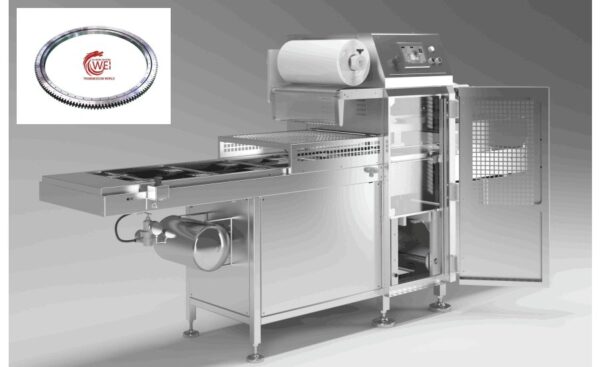

Light Type slewing ring, slewing ring, compact structure, not easy to deform, selected materials, high manufacturing accuracy, small assembly clearance, durable, light slewing ring, slewing ring, various specifications, and wide application for the food machinery, canning machinery and environgmental machinery. Our company has an annual production capacity of 30,000 sets of slewing bearings with a track center distance of 200-4000mm, and provides non-standardized customized services according to customer requirements. We can supply the certificate with ISO9001:2015, CCS, SGS, we also accept the thirty party inspection. For the new products, we used APQP, FEMA system to ensure the qualtiy. Now we have three plants to match the customers’ requirement, and our cost will be deducted compared with other company.

products discription
Model Number:	061.20.0644	Brand name	longwei
Production Experience	Since 2004	Applicable Industries:	Military,Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining, Food & Beverage Shops
Feature:	Four Point Contact ball	Gear Options:	External Gear Only
Material:	50Mn/Customized	Seals Type:	NBR or as requirement
Bearing Type:	Single Row Four Point	CERTIFICATE:	ISO9001:2008/SGS
Bore Diameter	572 mm	Outside Diameter	742mm
Operating tempereature:	-30°C +70°C	Hardness:	55HRC-62HRC
Product Name:	External gear Thin type Slewing bearing	Service:	OEM Service.Design Service
Net Weight :	52kgs	Rolling element:	Ball & Spacer
Warranty Period	1 year	Testing	In house or third party
KEY WORD	Thin Turntable Bearing	Size	Standard OR Customized
Height	56 mm	H.S. Code	848210900
Packaging Details	1.Filling with rust-proof oil 2.packing with protective layers 3.Fixed in the plywood4.Packaging terms:Plywood case/ Pallet/Steel frame	MOQ	1 SET

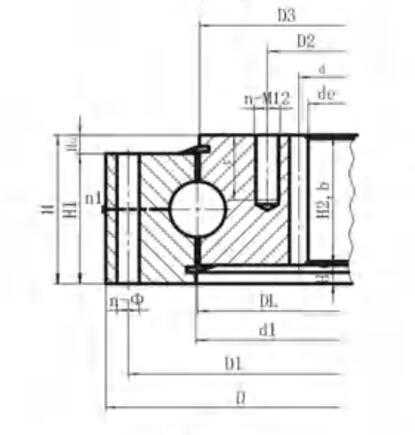

Technical parameter for model 061.20.0644
Model	Dimensions	Installation Size	Structure Size
061.20.0644	D - 742.8mm	na- 32/36	D3-642.5
Slewing Bearing	d - 572mm	Φ - 13.5	d1-645.5
External Gear	H - 56mm	M-12	H1-45.5
N.W. 52KG	D1 - 685mm	t- 20	H2 - 45.5mm
	D2 - 598mm		Hu- 10.5mm

Plane deviation of mounting bracket P (mm)
Raceway center diameter	Plane deviation of mounting bracket P (mm)
DL(mm)	single row four ball	double row ball	cross roller
~1000	0.15	0.2	0.1
>1000~1500	0.19	0.25	0.12
>1500~2000	0.22	0.3	0.15
>2000~2500	0.25	0.35	0.17
>2500~4000	0.3	0.4	0.2
>4000~6000	0.4	0.5	0.3
>6000~8000	0.5	0.6	0.4

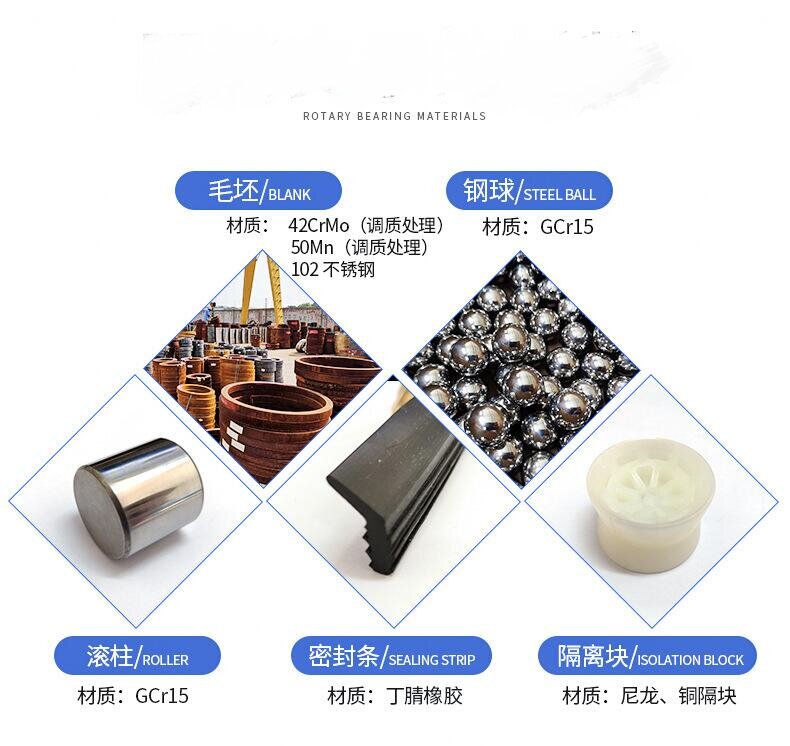

The main raw material of the slewing bearing is ring forgings, and the material is generally divided into 50Mn and 42CrMo. The process is generally divided into normalizing and quenching. In this way, the slewing bearing raw materials can
be divided into 50Mn normalizing material, 50Mn modified material, and 42CrMo positive material. Fire material,42CrMo conditioning material four kinds of combinations. In terms of cost, 50Mn is cheaper than 42CrMo, and the normalizing process is cheaper than the quenching process.

Our manufacturing standard is according to machinery standard JB/T2300-2011, we also has been found the efficient Quality Management Systems(QMS) of ISO 9001:2015 and GB/T19001-2008.
We devote ourselves to the R &D of customized slewing bearing with high precision,special purpose and requirements.
With abundant raw materials and high production efficiency, the company can supply products to customers as quickly as possible and shorten the time for customers to wait for products.
Our internal quality control includes first inspection, mutual inspection, in-process quality control and sampling inspection to ensure product quality. The company has complete testing equipment and advanced testing method.
Strong after-sales service team, timely solve customer problems, to provide customers with a variety of services.
FAQ
1: How to order?
Please refer to the help under the single payment.
2.What are the shipping methods?
Ocean shipment to the port close to your city; Air shipment to the airport close to your company; Door to door service by international express.
3.When can I get the price?
We usually quote within 12 hours after we get your inquiry. If urgent to get the price, please call us or tell us by email , we will regard your inquiry priority.
4.You are a trader or a manufacturer?
We are an industry and trade integration business, our factory located on Xuzhou City.
5.How about the payment terms?
We usually accept T/T or L/Cat sight . other terms also could be negotiated.
6.What is your minimum order?
It depends on what you are buying. Normally, our minimum order is 1pcs.
7.What is your delivery time?
If there are any parts in stock , our delivery time is only 3-7 days. If our standard model,the delivery time is around 25 days,if non-standard model,the delivery time is 38~45 days.
