Slewing bearings by Longwei  are a key component for controllable axes. The reliability, durability and ease of use of the slewing bearings made by Longwei not only  benefits the transporting of loads, but also of people.
- slewing bearings in the 232 standard series have a row of four-point ball bearings with spacer nylon.
These products are forged rings, processed into a structure, with an inner, square section, rigid gear ring and an outer flange ring. slewing bearings are provided with pre-lubricated grease in the 232 standard series.
Â

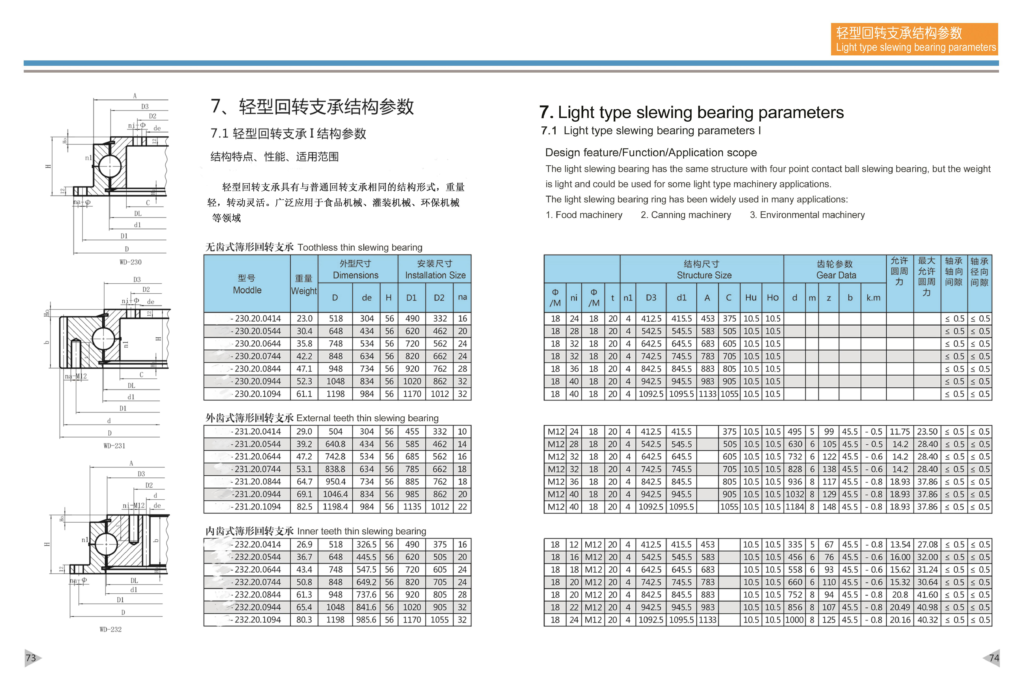

Description of 232 series

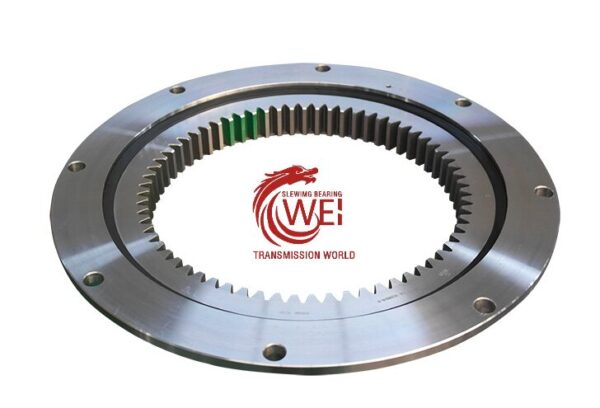

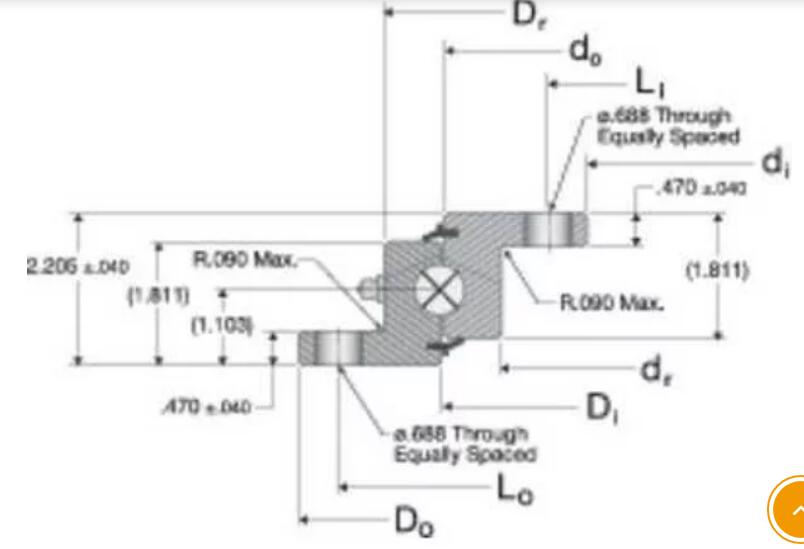

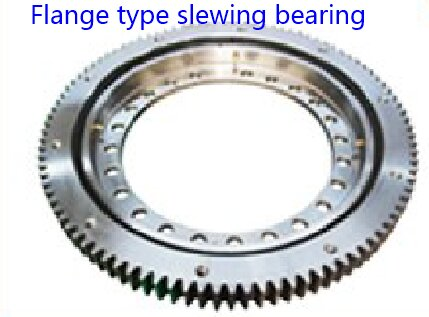

232 series Flange Slewing bearings comprise an inner ring and an outer flange ring, inner ring incorporates a gear. Together with attachment holes in both rings, they enable an optimized power transmission with a simple and quick connection between adjacent machine components. The bearing raceways, in conjunction with the rolling elements and cages or spacers, are designed to accommodate loads acting singly or in combination, and in any direction.
The 232 standard series Longwei rotary bearings have a good balance between performance and stiffness, with only one outer flange ring.
The real advantage of the structure is that it is easy to assemble, and the double seal means it can even be installed outdoors or in a dusty environment.
Longwei 232 standard series slewbacks can also rotate at high speeds (30 RPM) under low load

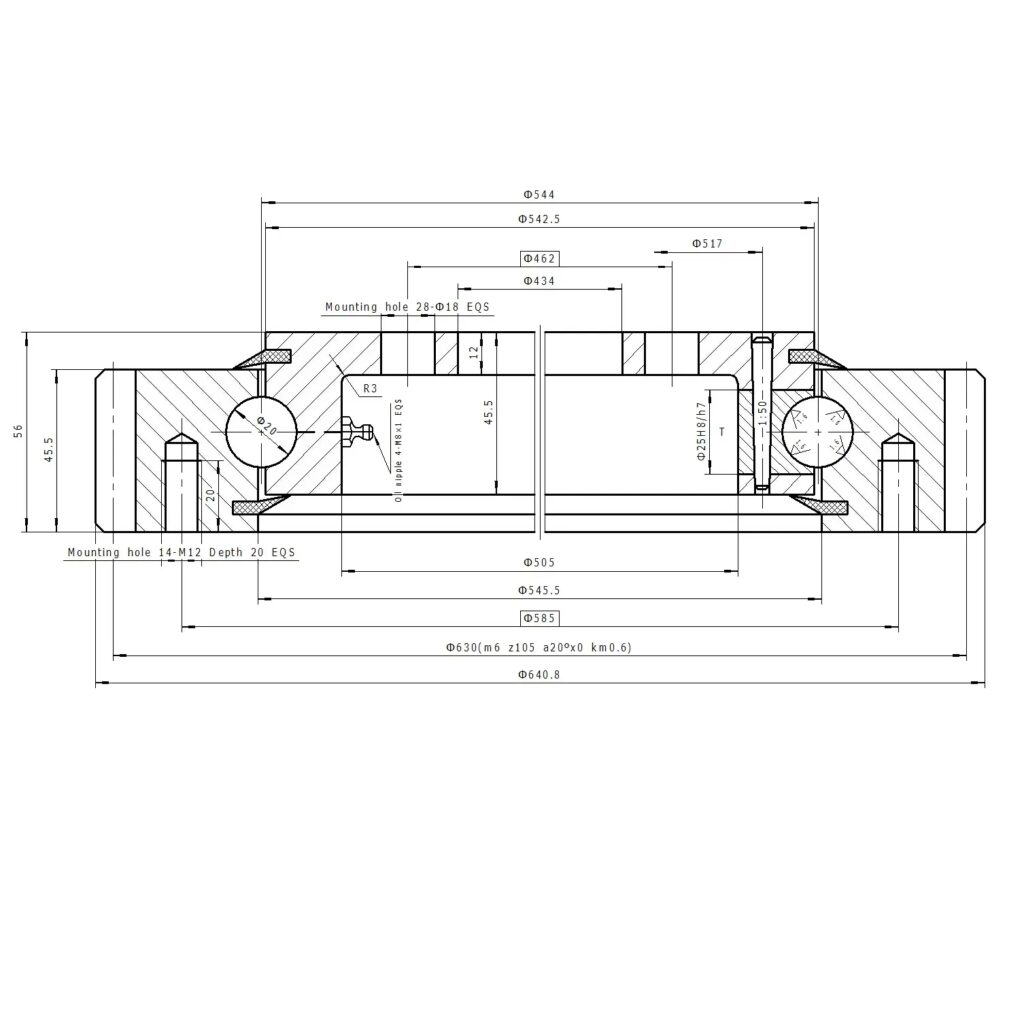

| Product Description | 231.20.0544 |
|---|---|
| Product series | 1. Single Row Four Point Contact Ball Slewing Bearings. |
| 2. Single Row Crossed Roller Slewing Bearings | |
| 3. Double Row Ball Slewing Bearings | |
| 4. Three Row Roller Slewing Bearings | |
| 5. Thin Section Slewing bearings (Light type). | |
| 6. Thin Section Slewing Bearings (Flange type) | |
| Outside Diameter | 640.8 mm |
| innerside diameter | 434mm |
| weight | 39.2kgs |
| Gear Options | External gear |
| Internal gear | |
| Without gear | |
| Brand Name | longwei |
| Raw material | 50Mn, 42CrMo |
| Certificate | ISO9001:2008, SGS |
| Payment Terms | L/C,T/T,Western Union |
| OEM/ODM | Available |
| Packaging Details | 1:Filling with rust-proof oil |
| 2:Packing with protective layers | |
| 3:Fixed in wooden box | |
| Model NO. | 231.20.0544 |
| Roller Type | |
| Deep Groove Raceway | |
| Material | |
| Carbon Steel | |
| Type | |
| External Gear | |
| Precision | |
| P0 P6 P5 P4 P2 | |
| Application | |
| Construction Machinery | |
| Hardness | |
| 55HRC-62HRC | |
| Certificate | |
| CCS\SGS | |
| Service | |
| OEM Customized Services | |
| Transport Package | |
| Wooden Case, Pallet | |
| Specification | |
| oem&odm | |
| Trademark | |
| fenghe | |
| Origin | |
| China | |
| Rolling-Element Number | |
| Single-Row |
| Plane deviation of mounting bracket P (mm) | ||||
|---|---|---|---|---|
| Raceway center diameter | Plane deviation of mounting bracket P (mm) | |||
| DL(mm) | single row four ball | double row ball | cross roller | |
| ~1000 | 0.15 | 0.2 | 0.1 | |
| >1000~1500 | 0.19 | 0.25 | 0.12 | |
| >1500~2000 | 0.22 | 0.3 | 0.15 | |
| >2000~2500 | 0.25 | 0.35 | 0.17 | |
| >2500~4000 | 0.3 | 0.4 | 0.2 | |
| >4000~6000 | 0.4 | 0.5 | 0.3 | |
| >6000~8000 | 0.5 | 0.6 | 0.4 | |
Longwe Transmission slewing bearing team is committed to keep the spirit of continuous improvement and focus our strategy of strict quality control standards, quick response, prompt delivery and low price.We look forward to working on all of our customers’ growing demands. Our ability to optimize the bearing design for your specific needs is unparalleled and we will assist you throughout the design, manufacturing and implementation process.
Products type | 1.single – row four – point contact ball |
Special services | 1.slewing bearing design |
Business type | manufacturer,trading company |
Advantages | 1.ISO 9001:2008 certificate,12 years experience2.High qualified material,low MOQ,excellent quality,competitive prices, |
Material | 50Mn/42CrMo or as your requirements |
Package | 1.First lubricated, Second circled with plastic film,kraft paper,blue belt,then packaged inwooden case,last gathered in Wooden pallet.2 According to your requirements  |
Delivery time | 1.For general product , our delivery time need only 5 days is enough (goods in stock).2.If you have special technical requirements or need additional processing,we first rder need only 45 ys, if that is roller continuous order, our delivery time only need 35 ys.  |

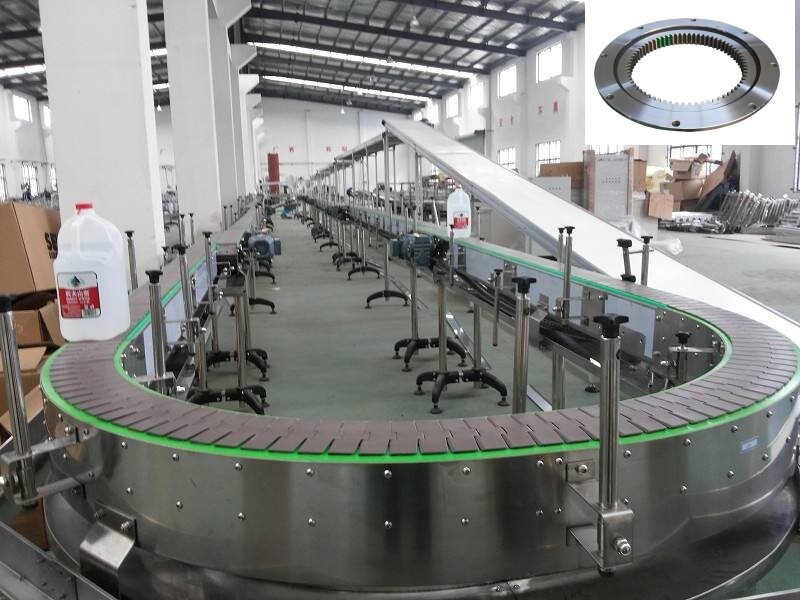

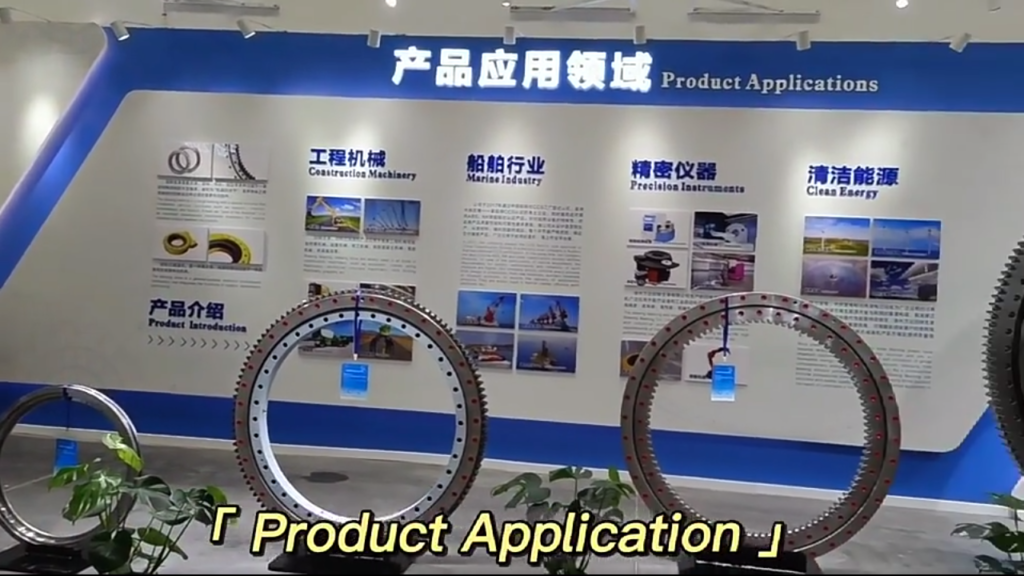

Application fields | Mine machine, port hoisting machine, port oil transfer equipment onshore and offshorecrane,excavator,concrete machine,paper machine, plastic and rubber machine, weavemachine, steel plant, electronic power plant, wind power generator, other construction and industry machines or equipment. Â |
We supplied high quality product & good service to every end user and valued distributors all over the world. We’ve enjoyed a very good reputation up to now.
Â
Our manufacturing standard is according to machinery standard JB/T2300-2011, we also has been found the efficient Quality Management Systems(QMS) of ISO 9001:2015 and GB/T19001-2008. We devote ourselves to the R &D of customized slewing bearing with high precision,special purpose and requirements and has acquired certificate of China Classification Society .
Â
If you have any questions, pls do not hesitate to contact us.
Â
Â
Â
FAQ
1: How to order?
Please refer to the help under the single payment.
2.What are the shipping methods?
Ocean shipment to the port close to your city; Air shipment to the airport close to your company; Door to door service by international express.
3.When can I get the price?
We usually quote within 12 hours after we get your inquiry. If urgent to get the price, please call us or tell us by email , we will regard your inquiry priority.
4.You are a trader or a manufacturer?
We are an industry and trade integration business, our factory located on Xuzhou City.
5.How about the payment terms?
We usually accept T/T or L/Cat sight . other terms also could be negotiated.
6.What is your minimum order?
It depends on what you are buying. Normally, our minimum order is 1pcs.
7.What is your delivery time?
If there are any parts in stock , our delivery time is only 3-7 days. If our standard model,the delivery time is around 25 days,if non-standard model,the delivery time is 38~45 days.
