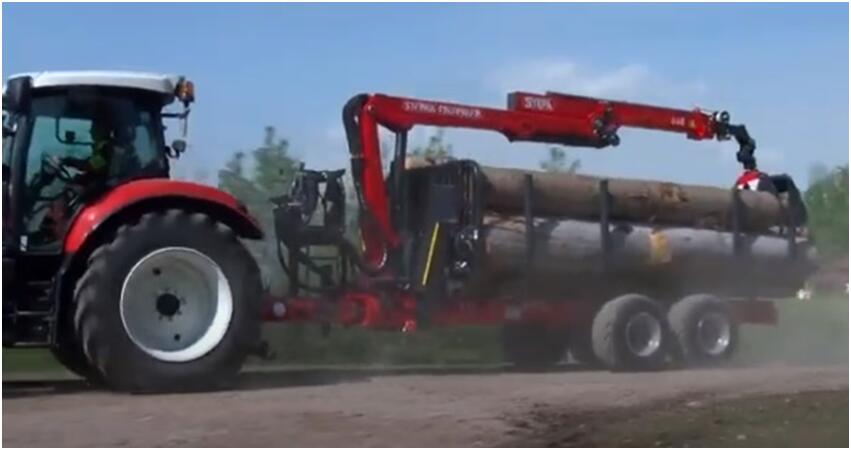

The main function is to connect the frame and the carriage, carry the weight of the carriage and the wood, and make the carriage transition when the car turns. It mainly bears larger axial force, larger impact force and certain overturning moment. The toothless slewing bearing has no active drive device. When the front of the car turns, it forms a certain angle with the body, and the inertia and friction force generated work together to make the slewing bearing rotate in the direction of the force.
The toothless slewing bearing has no active drive device. When the front of the car turns, it forms a certain angle with the body, and the inertia and friction force generated work together to make the slewing bearing rotate in the direction of the force.
The working conditions used by lumber trucks are generally accompanied by severe working conditions such as high humidity, muddy roads, and potholes. The slewing bearing of appropriate form and material can effectively meet the requirements of load and working conditions, making the vehicle safer, more stable, and less likely to be damaged.

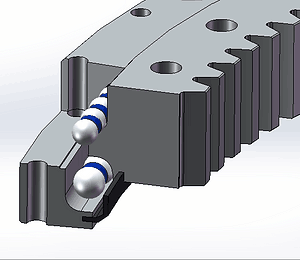

Double row contact ball slewing bearing has three rings, balls and spacer blocks can be arranged in the upper and lower rings directly, Install two rows different diameters balls according to the stress conditions.
Note:
- n1 is No. of lube holes, the user can specify the lube hole position.
- n-φ can be changed to threading holes, hole diameter M, thread depth 2M.
- There are standard products in the catalog, and the inner and outer diameters are random tolerances. If there is a locating requirement for slewing bearing, please indicate the site and tolerance.
- It is standard type of our products, if you need more please contact with engineer.
INSTALLATION OF Longwei transmission SLEWING BEARINGS
Preparation
Make sure that the model is correct and slewing bearing isn’t damaged during transportation.
2. Check the appearance and rotational state of the bearing, such as rotational precision clearance, rotating flexibility, seals position, lubrication grease etc.
3. The installation datum plane and bracket installing plane should be clean, grease, burr, paint and other foreign body should be wiped off.
Installation:
1. The screws in the installing plane should be fit with the mounting holes in the slewing bearing
2. The slewing bearing has a soft zone marked with an “s” on the upper surface, when installing the bearing, it is important to ensure that this area is placed in a non-load or infrequent load zone.
3. When the bearing is placed on the supporting frame work it is important to check the interface between these two surfaces. This check should be carried out with the insertion of feel gauges between the two surfaces. If a gap should exist then it is recommended to plane/resurface the effective area so as to remove the gap.
4. Install slewing bearing with high strength screws, and choose appropriate strength bolts. All bolts are required to be tightened evenly. The sequence of this tightening process is shown in Pic. Welding of bearing is not allowed, in the event of welding any adjacent parts, heat transfer shall be avoided so as to cause the bearing to become deformed or change the hardness.
5. After installation, the bearing should be rotated to check for smooth operation and any emission of unusual noise. If either of the aforementioned are noted, then the bearing should be adjusted to eliminate them. The teeth of the largest run-out are coated with green paint.
FAQ:
Q: Are longwei BEARINGS trading company or manufacturer?
A: longwei BEARINGS is a professional manufacturer for slewing bearings, thin section bearings, ball bearings and rolling bearings
Q: How do longwei bearing control quality of their bearing?
A: Longwei bearing has established strict quality control systems, all the products and services has passed ISO9001-2008 Quality Certificate and third party such as CCS, LR,ABS,BV
Q: What is the MOQ?
A: MOQ is 1pc, pls message us for detailed information.
Q: How about the package for Longwei bearing?
A: Standard Industrial packing in general condition (Plastic tube+ professional plastic belts+ plywood case). Accept design package when OEM.
Q: How long is the production time?
A: It takes about 7-40 days, depends on the model and quantity.
Q: How about the shipping?
A: We can arrange the shipment or you may have your own forwarder.
Q: Is sample available?
A: Yes, sample order is acceptable.
Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable for Longwei Transmission Slewing Bearing. We can design as per your requirements and use your own LOGO and package design.
