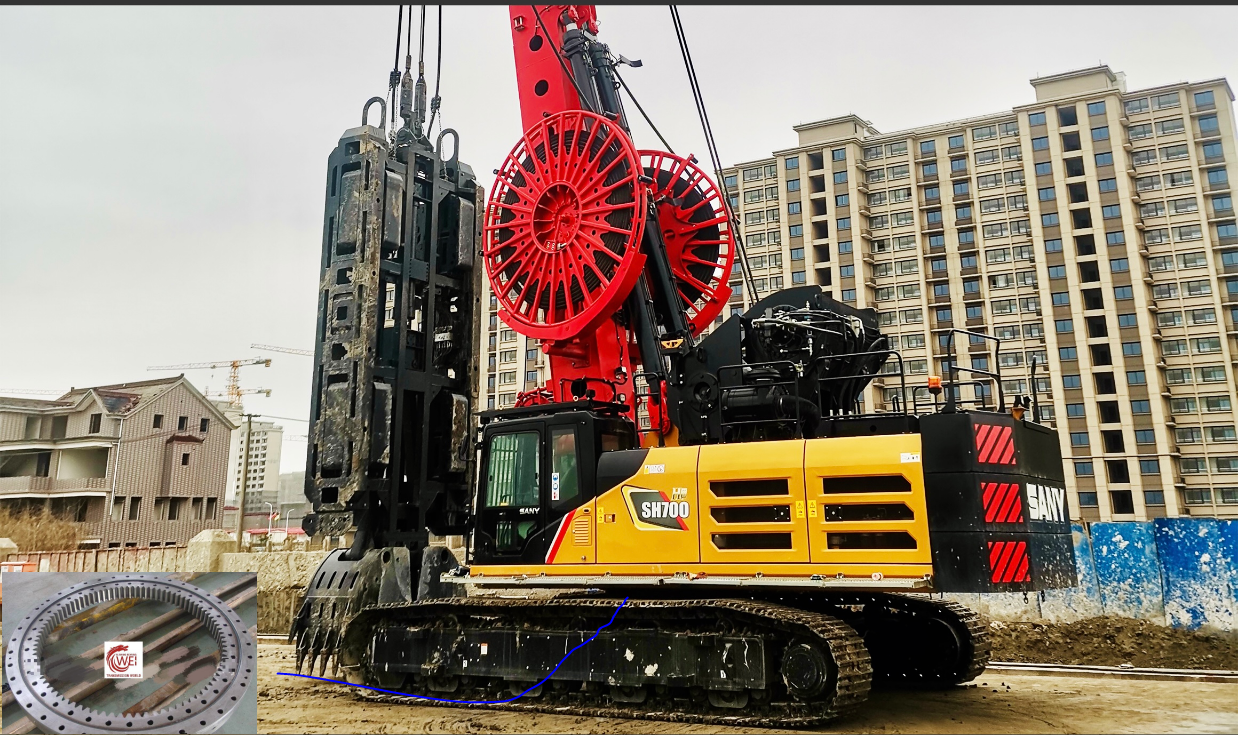

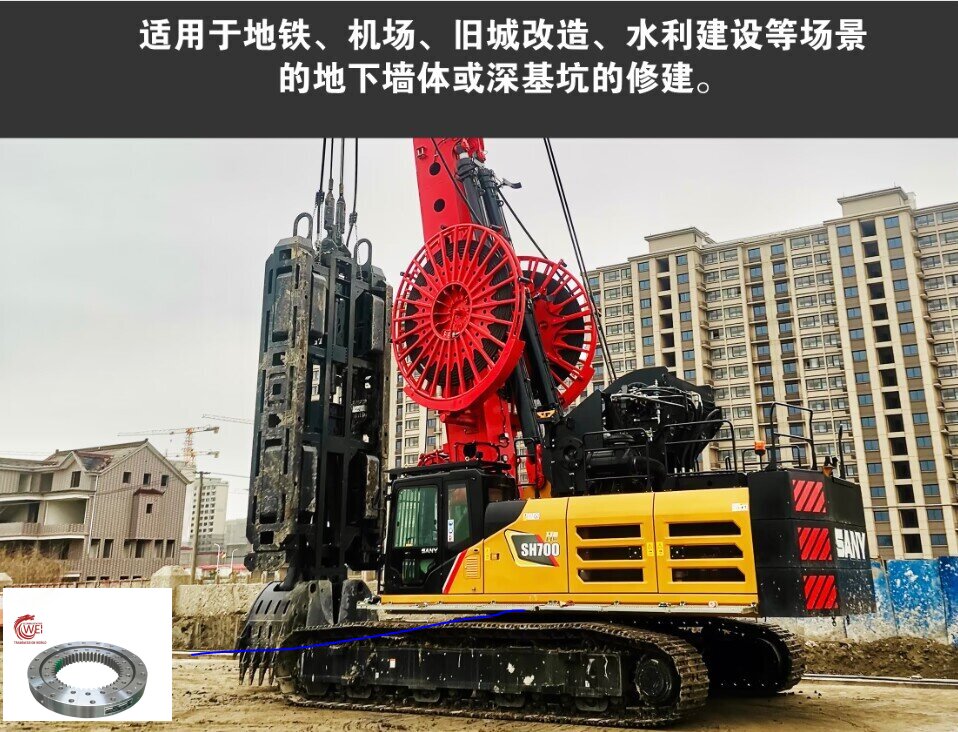

longwei slewing bearing provide the customer with the heavier loading rate for fixed turntable platform, you can consider the three rows slewing bearing while the normal types slewing bearing cannot reach your targets. It can provide the perfect solution for the proceeding of Radar, material handling equipment, shield machine, steel ladle, etc
Design Features

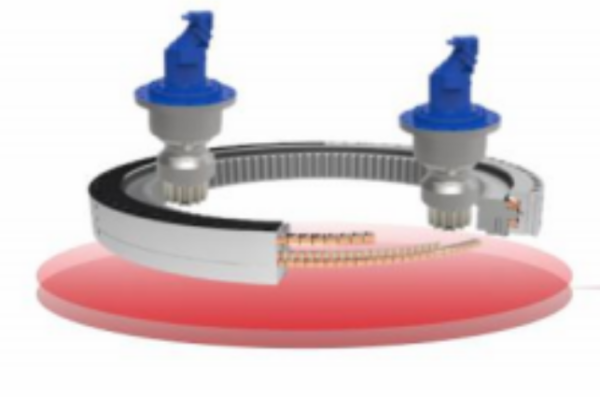

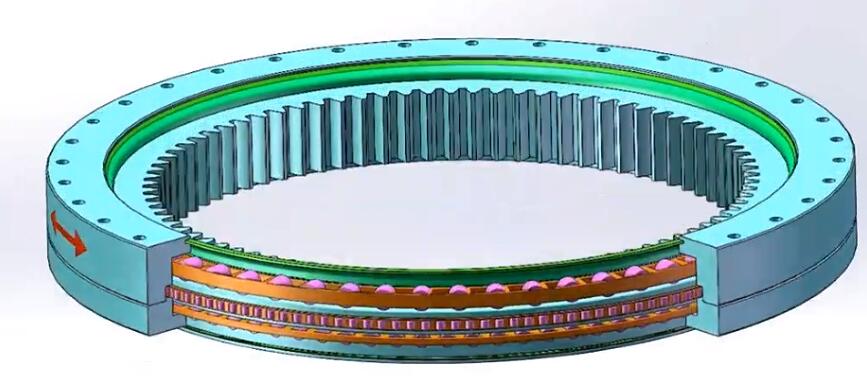

The three-row roller slewing bearing has three rows of independent rollers, the direction of which is perpendicular to the direction of the load transmitting, the top and bottom rollers holding the axial load, and the middle roller loading the radial load.
Note:
- n1 is No. of lube holes, the user can specify the lube hole position.
- n-φ can be changed to threading holes, hole diameter M, thread depth 2M.
- There are standard products in the catalog, and the inner and outer diameters are random tolerances. If there is a locating requirement for slewing bearing, please indicate the site and tolerance.
- It is standard type of our products, if you need more please contact with engineer.
| Products discription | |||
|---|---|---|---|

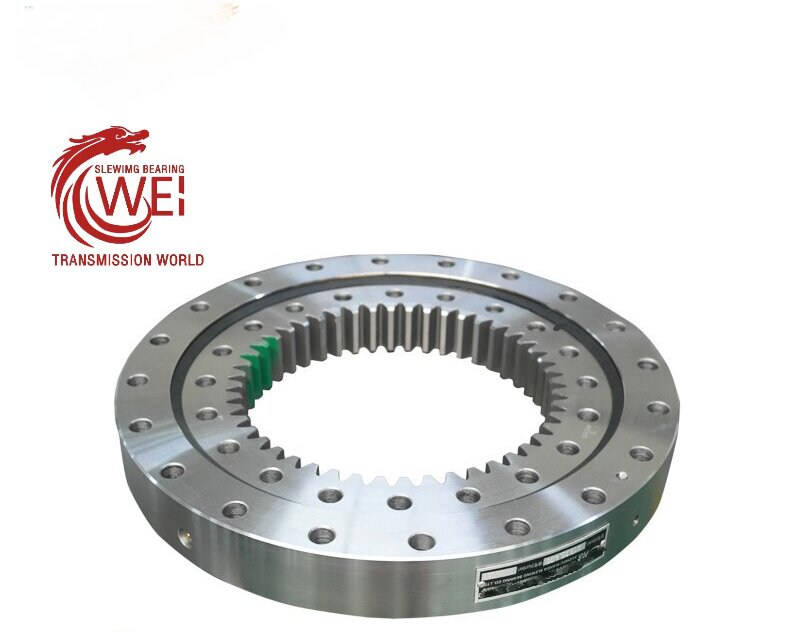

| Model Number: | 133.40.1250 | Brand name | longwei |
| Production Experience | Since 2004 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory |
| Feature: | THREE ROW ROLLER | Gear Options: | Internal Gear |
| Material: | 50Mn/42CrMo/Customized | Seals Type: | Nitrile Rubber or as requirement |
| MOQ | 1 set | CERTIFICATE: | ISO9001:2008/SGS |
| Bore Diameter | 1055 mm | Outside Diameter | 1445mm |
| Operating tempereature: | -30°C +70°C | Hardness: | 55-62HRC |
| Product Name: | Three row roller with internal Gear Slewing Bearing | Service: | OEM Service.Design Service |
| Net Weight : | 1200kgs | Rolling element: | Roller & Spacer |
| Warranty Period | 1 year | Testing | In house or third party |
| MOQ | 1 SET | Size | Standard OR Customized |
| Height | 220 mm | H.S. Code | 848210900 |
| Packaging Details | 1.First lubricated, Second circled with plastic film,kraft paper,blue belt,then packaged inwooden case,last gathered in Wooden pallet.2 According to your requirements | Product Type: | Three Row Roller |
Technical parameters required for slewing bearing selection as below:
1).Slewing bearing load (Includes axial load, radial load and tilting moment)
2). Percentage of each load and its occupation time
3). Speed or number of revolutions of the slewing bearing under each load
4).Circumferential force acting on the gear
5).Dimensions of the slewing bearing
6). Other operating conditions
The material, compressive property, abrasive resistance and hardness of balls will affect the load condition and service life of slewing bearing. Longwei slewing bearing Co., Ltd purchase balls from suppliers with high quality, and we will conduct test for the compressive property, abrasive resistance and hardness to eurens the quality of balls will meet the requirement.
Longwe Transmission slewing bearing team is committed to keep the spirit of continuous improvement and focus our strategy of strict quality control standards, quick response, prompt delivery and low price.We look forward to working on all of our customers’ growing demands. Our ability to optimize the bearing design for your specific needs is unparalleled and we will assist you throughout the design, manufacturing and implementation process.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
About Longwei
Provide you with customized industry solutions
More than ten years of production experience, strict quality control can be the guarantee of the best solution in the industry.
China’s leading supplier of slewing bearings, its products have passed ISO 9001 and CAPE certification, and has a number of product patents.
The flexibility of our dialogue and approach with our clients is combined with responsive design and development innovation to ensure exceptional delivery.
FAQ
Do you have any questions about our slewing bearing? Maybe you can find the answer below. If the answer below does not solve your problem, please contact us and our engineer will answer it for you.
1. Where is your slewing bearing manufactured?
Our slewing bearings are all manufactured in China. We not only have the ability to design and produce slewing bearings but the quality can also be guaranteed. At the same time, our slewing-bearing price is more favorable.
2. I don’t know which slewing bearing to use, can you choose for me?
Yes, of course, Each model has a parameter list on the website. You can choose the suitable slewing bearing according to these parameter lists. If you don’t know how to choose, you can get in touch with us and our engineers will work with you to choose the suitable product. We can also design a new slewing bearing solution for you according to your equipment.
3. Can I get your product catalog?
You can get our product catalog in the download or contact us, we will send the product catalog to you by email or other ways.
4. Can you customize products?
Yes, we can. Our engineers have very rich experience in slewing bearing design. On the customized slewing bearing page, you can see some special customized products designed by our engineers. These design solutions meet the special needs of many customers. Our engineers can also work with you to design a new slewing bearing.
5. Can you provide accessories?
Yes, we can provide matching spare parts such as motors, hydraulic motors, and encoders that are compatible with slewing bearings.
6. Can you provide a 3D model?
Yes. All our slewing bearings have 3D models, you can contact us to get them. At the same time, we can also provide CAD files and PDF files.
7. How long is your slewing bearing warranty period?
Our slewing bearing warranty time is 12 months. When you install, use, and store the slewing bearing, please refer to the slewing bearing instruction manual.
8. Can you choose the color of your slewing bearing?
Yes. Our slewing bearing is available in many colors. If you have special requirements, please tell our sales engineers, we are happy to provide services for you.
