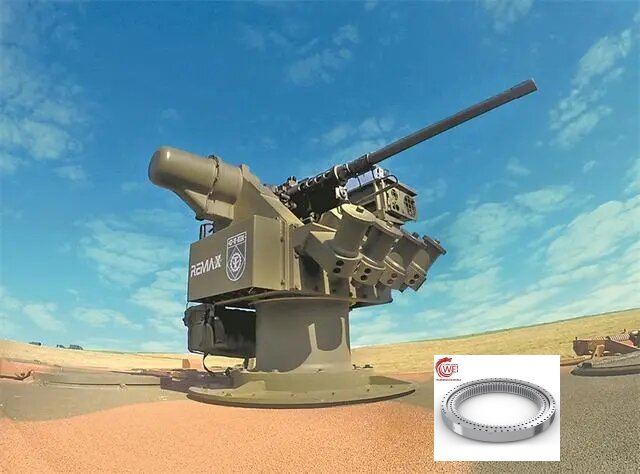

114.25.710 Single row cross roller slewing bearing Typhoon shipborne Remote controlled weapon station

Products Description
Model Number:	114.25.710	Brand name	longwei
Production Experience	Since 2004	Applicable Industries:	Military,Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining, Food & Beverage Shops
Specification	from 200-5000mm	Gear Options:	Internal Gear Only
Material:	50Mn/Customized	Seals Type:	NBR or as requirement
Outside Diameter	300 - 5000 mm	CERTIFICATE:	ISO9001:2008/SGS
Bore Diameter	608 mm	Outside Diameter	812mm
Operating tempereature:	-30°C +70°C	Hardness:	55HRC-62HRC
Product Name:	Single row cross roller type slewing bearing	Service:	OEM Service.Design Service
Net Weight :	110kgs	Rolling element:	Roller & Spacer
Warranty Period	1 year	Testing	In house or third party
KEY WORD	Internal gear Single row cross	Size	Standard OR Customized
Height	75 mm	H.S. Code	848210900
Packaging Details	1.Filling with rust-proof oil 2.packing with protective layers 3.Fixed in the plywood4.Packaging terms:Plywood case/ Pallet/Steel frame	MOQ	1 SET

Gear Heat TreatmentOur bearings are used both in heavy devices, such as armoured vehicles, and in sensitive optical devices. They are marked by their robustness, precision and reliability. Our bearing concepts are based not only on military norms and quality standards, but also on our decades-long experience and consequent research and development. Upon request, we are happy to carry out special measurements and tests in our R&D centre.

Plane deviation of mounting bracket P (mm)
Raceway center diameter	Plane deviation of mounting bracket P (mm)
DL(mm)	single row four ball	double row ball	cross roller
~1000	0.15	0.2	0.1
>1000~1500	0.19	0.25	0.12
>1500~2000	0.22	0.3	0.15
>2000~2500	0.25	0.35	0.17
>2500~4000	0.3	0.4	0.2
>4000~6000	0.4	0.5	0.3
>6000~8000	0.5	0.6	0.4

The single-row cross-roller slewing ring is also composed of two inner and outer rings, with compact structure, high manufacturing precision, light weight and small assembly clearance. The inner ring and the outer ring are connected by rollers, the rollers are arranged in a 1:1 cross, which can bear axial force, tilting moment and larger radial force at the same time. The structure of the cross roller bearing itself is a line contact, which can also be understood as a surface contact, and the line surface contact of the crossed round roller bearing is front, back and left, ensuring the stability of the entire layout.

It is widely used in lifting and transportation, military products, medical equipment, bucket wheel machines, park amusement machines, filling machines etc, which play a very important role in construction machinery products

The following table is the specification for different models:

No	Internal gear DL mm	Dimensions			Mounting Dimension						Structural Dimension					Gear Data					Gear circumferential force		Weight kg
		D mm	d mm	H mm	D1 mm	D2 mm	n	mm	dm mm	L mm	n1 mm	D3 mm	d1 mm	H1 mm	h mm	b mm	x	m mm	De mm	z	Normalizing Z 104N	Quenching T 104N
1	113.25.500	602	398	75	566	434	20	18	M16	32	4	498	502	65	10	60	0.5	5	367	74	3.7	5.2	80
	114.25.500																	6	368.4	62	4.5	6.2
2	113.25.560	662	458	75	626	494	20	18	M16	32	4	558	562	65	10	60	0.5	5	427	86	3.7	5.2	90
	114.25.560																	6	428.4	72	4.5	6.2
3	113.25.630	732	528	75	696	564	24	18	M16	32	4	628	632	65	10	60	0.5	6	494.4	83	4.5	6.2	100
	114.25.630																	8	491.2	62	6	8.3
4	113.25.710	812	608	75	776	644	24	18	M16	32	4	708	712	65	10	60	0.5	6	572.4	96	4.5	6.2	110
	114.25.710																	8	571.2	72	6	8.3
5	113.28.800	922	678	82	878	722	30	22	M20	40	6	798	802	72	10	65	0.5	8	635.2	80	6.5	9.1	170
	114.28.800																	10	634	64	8.1	11.4
6	113.28.900	1022	778	82	978	822	30	22	M20	40	6	898	902	72	10	65	0.5	8	739.2	93	6.5	9.1	190
	114.28.900																	10	734	74	8.1	11.4
7	113.28.1000	1122	878	82	1078	922	36	22	M20	40	6	998	1002	72	10	65	0.5	10	824	83	8.1	11.4	210
	114.28.1000																	12	820.8	69	9.7	13.6
8	113.28.1120	1242	998	82	1198	1042	36	22	M20	40	6	1118	1122	72	10	65	0.5	10	944	95	8.1	11.4	230
	114.28.1120																	12	940.8	79	9.7	13.6
9	113.32.1250	1390	1110	91	1337	1163	40	26	M24	48	5	1248	1252	81	10	75	0.5	12	1048.8	88	11.3	15.7	350
	114.32.1250																	14	1041.6	75	13.2	18.2
10	113.32.1400	1540	1260	91	1487	1313	40	26	M24	48	5	1398	1402	81	10	75	0.5	12	1192.8	100	11.3	15.7	400
	114.32.1400																	14	1195.6	86	13.2	18.2
11	113.32.1600	1740	1460	91	1687	1513	45	26	M24	48	5	1598	1602	81	10	75	0.5	14	1391.6	100	13.2	18.2	440
	114.32.1600																	16	1382.4	87	15.1	22.4
12	113.32.1800	1940	1660	91	1887	1713	45	26	M24	48	5	1798	1802	81	10	75	0.5	14	1573.6	113	13.2	18.2	500
	114.32.1800																	16	1574.4	99	15.1	22.4
13	113.40.2000	2178	1825	112	2110	1891	48	33	M30	60	8	1997	2003	100	12	90	0.5	16	1734.4	109	18.1	25	900
	114.40.2000																	18	1735.2	97	20.3	28.1
14	113.40.2240	2418	2065	112	2350	2131	48	33	M30	60	8	2237	2243	100	12	90	0.5	16	1990.4	125	18.1	25	1000
	114.40.2240																	18	1987.2	111	20.3	28.1
15	113.40.2500	2678	2325	112	2610	2391	56	33	M30	60	8	2497	2503	100	12	90	0.5	18	2239.2	125	20.3	28.1	1100
	114.40.2500																	20	2228	112	22.6	31.3
16	113.40.2800	2978	2625	112	2910	2691	56	33	M30	60	8	2797	2803	100	12	90	0.5	18	2527.2	141	20.3	28.1	1250
	114.40.2800																	20	2528	127	22.6	31.3
17	113.50.3150	3376	2922	134	3286	3014	56	45	M42	84	8	3147	3153	122	12	110	0.5	20	2828	142	27.6	38.3	2150
	114.50.3150																	22	2824.8	129	30.4	42.1
18	113.50.3550	3776	3322	134	3686	3414	56	45	M42	84	8	3547	3553	122	12	110	0.5	20	3228	162	30.4	38.3	2470
	114.50.3550																	22	3220.8	147	30.4	42.1
19	113.50.4000	4226	3772	134	4136	3864	60	45	M42	84	10	3997	4003	122	12	110	0.5	22	3660.8	167	30.4	42.1	2800
	114.50.4000																	25	3660	147	34.5	47.8
20	113.50.4500	4726	4272	134	4636	4364	60	45	M42	84	10	4497	4503	122	12	110	0.5	22	4166.8	190	30.4	42.1	3100
	114.50.4500																	25	4160	167	34.5	47.8

About Longwei

Provide you with customized industry solutions

More than ten years of production experience, strict quality control can be the guarantee of the best solution in the industry.
China’s leading supplier of slewing bearings, its products have passed ISO 9001 and CAPE certification, and has a number of product patents.

The flexibility of our dialogue and approach with our clients is combined with responsive design and development innovation to ensure exceptional delivery.

FAQ

Do you have any questions about our slewing bearing? Maybe you can find the answer below. If the answer below does not solve your problem, please contact us and our engineer will answer it for you.

1. Where is your slewing bearing manufactured?
Our slewing bearings are all manufactured in China. We not only have the ability to design and produce slewing bearings but the quality can also be guaranteed. At the same time, our slewing-bearing price is more favorable.

2. I don’t know which slewing bearing to use, can you choose for me?
Yes, of course, Each model has a parameter list on the website. You can choose the suitable slewing bearing according to these parameter lists. If you don’t know how to choose, you can get in touch with us and our engineers will work with you to choose the suitable product. We can also design a new slewing bearing solution for you according to your equipment.

3. Can I get your product catalog?
You can get our product catalog in the download or contact us, we will send the product catalog to you by email or other ways.

4. Can you customize products?
Yes, we can. Our engineers have very rich experience in slewing bearing design. On the customized slewing bearing page, you can see some special customized products designed by our engineers. These design solutions meet the special needs of many customers. Our engineers can also work with you to design a new slewing bearing.

5. Can you provide accessories?
Yes, we can provide matching spare parts such as motors, hydraulic motors, and encoders that are compatible with slewing bearings.

6. Can you provide a 3D model?
Yes. All our slewing bearings have 3D models, you can contact us to get them. At the same time, we can also provide CAD files and PDF files.

7. How long is your slewing bearing warranty period?
Our slewing bearing warranty time is 12 months. When you install, use, and store the slewing bearing, please refer to the slewing bearing instruction manual.

8. Can you choose the color of your slewing bearing?
Yes. Our slewing bearing is available in many colors. If you have special requirements, please tell our sales engineers, we are happy to provide services for you.
