| Products Description | ||||
|---|---|---|---|---|
| Model Number: | 113.32.1400 | Brand name | longwei | |
| Production Experience | Since 2004 | Applicable Industries: | Military,Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining, Food & Beverage Shops | |
| Specification | from 200-5000mm | Gear Options: | Internal Gear Only | |
| Material: | 50Mn/Customized | Seals Type: | NBR or as requirement | |
| Outside Diameter | 300 - 5000 mm | CERTIFICATE: | ISO9001:2008/SGS | |
| Bore Diameter | 1260 mm | Outside Diameter | 1540mm | |
| Operating tempereature: | -30°C +70°C | Hardness: | 55HRC-62HRC | |

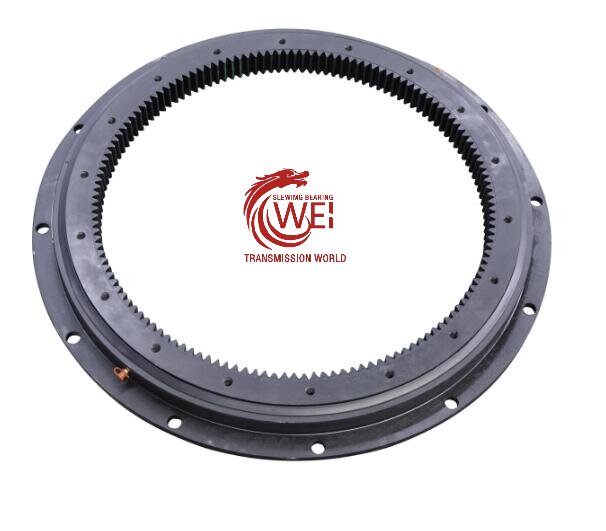

| Product Name: | Single row cross roller type slewing bearing | Service: | OEM Service.Design Service | |
| Net Weight : | 400kgs | Rolling element: | Roller & Spacer | |
| Warranty Period | 1 year | Testing | In house or third party | |
| KEY WORD | Internal gear Single row cross | Size | Standard OR Customized | |
| Height | 91 mm | H.S. Code | 848210900 | |
| Packaging Details | 1.Filling with rust-proof oil 2.packing with protective layers 3.Fixed in the plywood4.Packaging terms:Plywood case/ Pallet/Steel frame | MOQ | 1 SET |
Slew Bearings for Precision Application
The success of the LONGWEI Transmission slewing ring is the result of the precision of our finishing by grinding. All our production is perfectly under control and the matching of the rings and the rolling elements, gives batch after batch, the certainty to obtain the right bearing for this very demanding application. We propose also motor torque bearings. Our tailor made design follows perfectly the specific requirements of the customers. The most famous worldwide robots and machine tools manufacturers choose LONGWEI Transmission Slew Bearings all around the world
Please see attached catalogue for our roller slewing bearing. Also you could download the drawing from the below sheet.
Note:
1. N1 is the numbers of lubricating holes. Oil cup M10×1JB/T7940.1~JB/T7940.
2. The Oil nipple’s location can be change according to the user’s application.
3. n-φ can change to tapped hole, the diameter of tapped hole is M, and depth is 2M.
4. The tangential tooth force in the form is the max tooth force; the nominal tangential tooth force is 1/2 of the max one.
5. “K” is addendum reduction coefficient.
About Longwei
Provide you with customized industry solutions
More than ten years of production experience, strict quality control can be the guarantee of the best solution in the industry.
China’s leading supplier of slewing bearings, its products have passed ISO 9001 and CAPE certification, and has a number of product patents.
The flexibility of our dialogue and approach with our clients is combined with responsive design and development innovation to ensure exceptional delivery.
FAQ
Do you have any questions about our slewing bearing? Maybe you can find the answer below. If the answer below does not solve your problem, please contact us and our engineer will answer it for you.
1. Where is your slewing bearing manufactured?
Our slewing bearings are all manufactured in China. We not only have the ability to design and produce slewing bearings but the quality can also be guaranteed. At the same time, our slewing-bearing price is more favorable.
2. I don’t know which slewing bearing to use, can you choose for me?
Yes, of course, Each model has a parameter list on the website. You can choose the suitable slewing bearing according to these parameter lists. If you don’t know how to choose, you can get in touch with us and our engineers will work with you to choose the suitable product. We can also design a new slewing bearing solution for you according to your equipment.
3. Can I get your product catalog?
You can get our product catalog in the download or contact us, we will send the product catalog to you by email or other ways.
4. Can you customize products?
Yes, we can. Our engineers have very rich experience in slewing bearing design. On the customized slewing bearing page, you can see some special customized products designed by our engineers. These design solutions meet the special needs of many customers. Our engineers can also work with you to design a new slewing bearing.
5. Can you provide accessories?
Yes, we can provide matching spare parts such as motors, hydraulic motors, and encoders that are compatible with slewing bearings.
6. Can you provide a 3D model?
Yes. All our slewing bearings have 3D models, you can contact us to get them. At the same time, we can also provide CAD files and PDF files.
7. How long is your slewing bearing warranty period?
Our slewing bearing warranty time is 12 months. When you install, use, and store the slewing bearing, please refer to the slewing bearing instruction manual.
8. Can you choose the color of your slewing bearing?
Yes. Our slewing bearing is available in many colors. If you have special requirements, please tell our sales engineers, we are happy to provide services for you.
