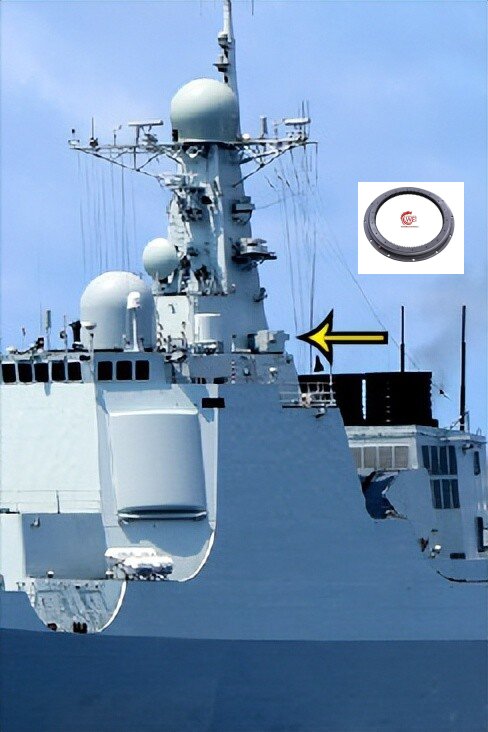

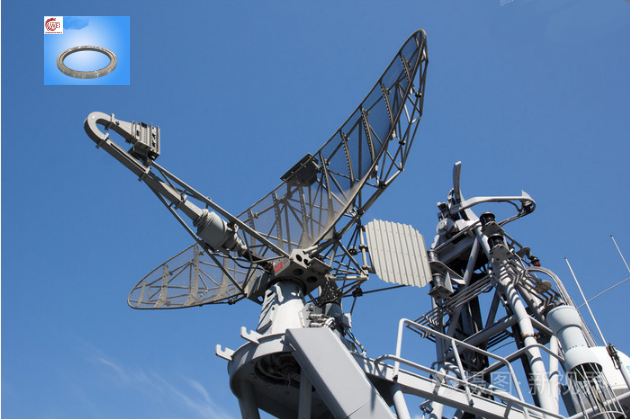

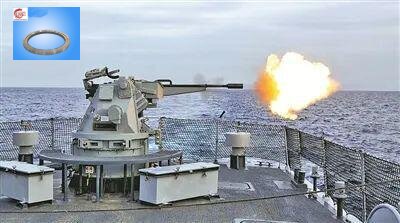

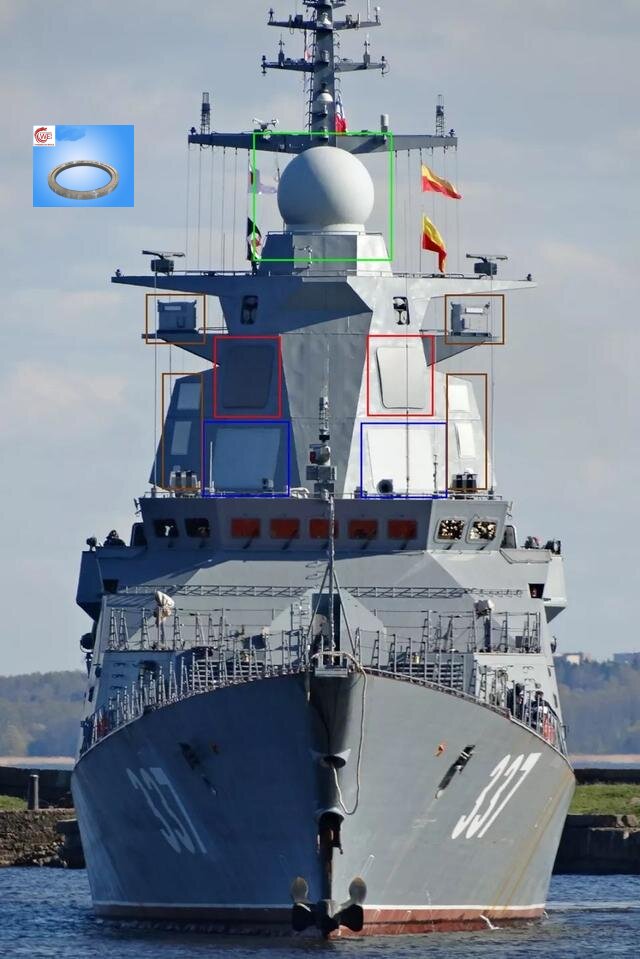

LONGWEI slewing bearing is committed to the construction of the military industry and is suitable for a variety of complex geographic and working environments. The products have passed tensile strength, yield strength testing, anti-oxidation testing, etc. to ensure safety and smoothly operating.
LONGWEI slewing bearing offers a variety of customized slewing bearings and relative precision gear assemblies to meet specific demands. LONGWEI slewing bearing provides customers with tailored designing and professional technical support.
With unique coating treatment technology, LONGWEI brand is aim to apply for areas which requiring excellent corrosion fields. Our technology has been proven in main military applications. ITP and QC procedures are in line with the relevant technical requirements of government procurement . The complete QMS&Auditing by TPI enables LONGWEI slewing bearings to be prestigious in the military industry.
| Products Description | ||||
|---|---|---|---|---|

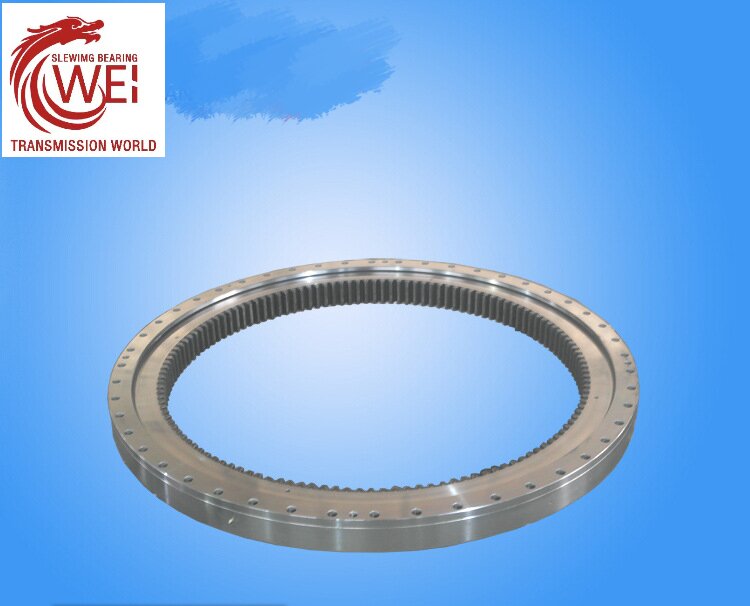

| Model Number: | 113.28.800 | Brand name | longwei | |
| Production Experience | Since 2004 | Applicable Industries: | Military,Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining, Food & Beverage Shops | |
| Specification | from 200-5000mm | Gear Options: | Internal Gear Only | |
| Material: | 50Mn/Customized | Seals Type: | NBR or as requirement | |
| Outside Diameter | 300 - 5000 mm | CERTIFICATE: | ISO9001:2008/SGS | |
| Bore Diameter | 678 mm | Outside Diameter | 922mm | |
| Operating tempereature: | -30°C +70°C | Hardness: | 55HRC-62HRC | |

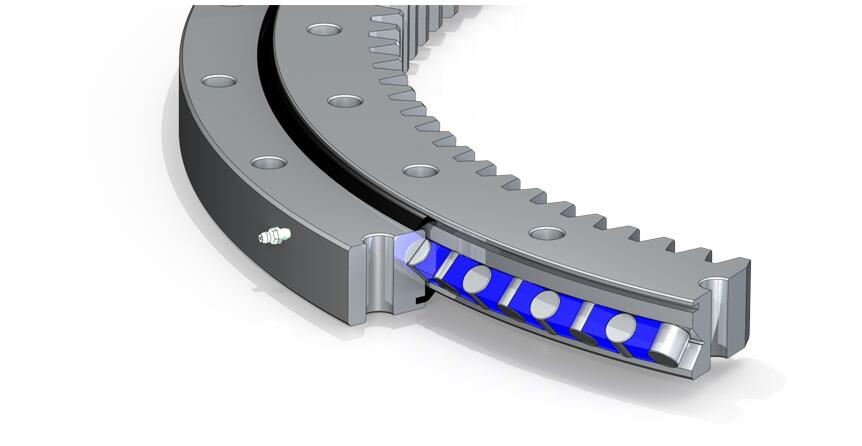

| Product Name: | Single row cross roller type slewing bearing | Service: | OEM Service.Design Service | |
| Net Weight : | 170kgs | Rolling element: | Roller & Spacer | |
| Warranty Period | 1 year | Testing | In house or third party | |
| KEY WORD | Internal gear Single row cross | Size | Standard OR Customized | |
| Height | 82 mm | H.S. Code | 848210900 | |
| Packaging Details | 1.Filling with rust-proof oil 2.packing with protective layers 3.Fixed in the plywood4.Packaging terms:Plywood case/ Pallet/Steel frame | MOQ | 1 SET |
A slewing bearing ring is a rotational rolling-element bearing that typically supports a heavy but slow-turning or slow-oscillating load, often a horizontal platform such as a conventional crane, or the wind-facing platform of a horizontal-axis windmill. (To ‘slew’ means to turn without change of place.)
Compared to other rolling-element bearings, slewing bearings are thin in section and are often made in diameters of a metre or more; the slewing bearings on the Falkirk Wheel are 4 metres diameter and fit over a 3.5 metre axle. Slewing bearings resemble oversize aircraft control surface bearings.
In order to save you a lot of time and effort, the Longwei team created the 3D model as well as the drawings of the slewing bearings and manufacturing parts that we provided. All you need to do is put the slewing ring into your design and it will work normally. If you cannot find the right part online, we will customize slewing bearings to your exact specifications.
Are you ready to get more revenue from bearing and gear suppliers? Contact us immediately. Discover the benefits of working with a team of highly skilled people who provide high quality bearings and custom gears.
| Plane deviation of mounting bracket P (mm) | ||||
|---|---|---|---|---|
| Raceway center diameter | Plane deviation of mounting bracket P (mm) | |||
| DL(mm) | single row four ball | double row ball | cross roller | |
| ~1000 | 0.15 | 0.2 | 0.1 | |
| >1000~1500 | 0.19 | 0.25 | 0.12 | |
| >1500~2000 | 0.22 | 0.3 | 0.15 | |
| >2000~2500 | 0.25 | 0.35 | 0.17 | |
| >2500~4000 | 0.3 | 0.4 | 0.2 | |
| >4000~6000 | 0.4 | 0.5 | 0.3 | |
| >6000~8000 | 0.5 | 0.6 | 0.4 | |
In order to save you a lot of time and effort, the Longwei team created the 3D model as well as the drawings of the slewing bearings and manufacturing parts that we provided. All you need to do is put the slewing ring into your design and it will work normally. If you cannot find the right part online, we will customize slewing bearings to your exact specifications.
Are you ready to get more revenue from bearing and gear suppliers? Contact us immediately. Discover the benefits of working with a team of highly skilled people who provide high quality bearings and custom gears.
About Longwei
Provide you with customized industry solutions
More than ten years of production experience, strict quality control can be the guarantee of the best solution in the industry.
China’s leading supplier of slewing bearings, its products have passed ISO 9001 and CAPE certification, and has a number of product patents.
The flexibility of our dialogue and approach with our clients is combined with responsive design and development innovation to ensure exceptional delivery.
FAQ
Do you have any questions about our slewing bearing? Maybe you can find the answer below. If the answer below does not solve your problem, please contact us and our engineer will answer it for you.
1. Where is your slewing bearing manufactured?
Our slewing bearings are all manufactured in China. We not only have the ability to design and produce slewing bearings but the quality can also be guaranteed. At the same time, our slewing-bearing price is more favorable.
2. I don’t know which slewing bearing to use, can you choose for me?
Yes, of course, Each model has a parameter list on the website. You can choose the suitable slewing bearing according to these parameter lists. If you don’t know how to choose, you can get in touch with us and our engineers will work with you to choose the suitable product. We can also design a new slewing bearing solution for you according to your equipment.
3. Can I get your product catalog?
You can get our product catalog in the download or contact us, we will send the product catalog to you by email or other ways.
4. Can you customize products?
Yes, we can. Our engineers have very rich experience in slewing bearing design. On the customized slewing bearing page, you can see some special customized products designed by our engineers. These design solutions meet the special needs of many customers. Our engineers can also work with you to design a new slewing bearing.
5. Can you provide accessories?
Yes, we can provide matching spare parts such as motors, hydraulic motors, and encoders that are compatible with slewing bearings.
6. Can you provide a 3D model?
Yes. All our slewing bearings have 3D models, you can contact us to get them. At the same time, we can also provide CAD files and PDF files.
7. How long is your slewing bearing warranty period?
Our slewing bearing warranty time is 12 months. When you install, use, and store the slewing bearing, please refer to the slewing bearing instruction manual.
8. Can you choose the color of your slewing bearing?
Yes. Our slewing bearing is available in many colors. If you have special requirements, please tell our sales engineers, we are happy to provide services for you.
