| Products Description | ||||
|---|---|---|---|---|
| Model Number: | 112.25.560 | Brand name | longwei | |
| Production Experience | Since 2004 | Applicable Industries: | Military,Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining, Food & Beverage Shops | |
| Specification | from 200-5000mm | Gear Options: | External Gear Only | |
| Material: | 50Mn/Customized | Seals Type: | NBR or as requirement | |
| Outside Diameter | 300 - 5000 mm | CERTIFICATE: | ISO9001:2008/SGS | |
| Bore Diameter | 458 mm | Outside Diameter | 662mm | |
| Operating tempereature: | -30°C +70°C | Hardness: | 55HRC-62HRC | |

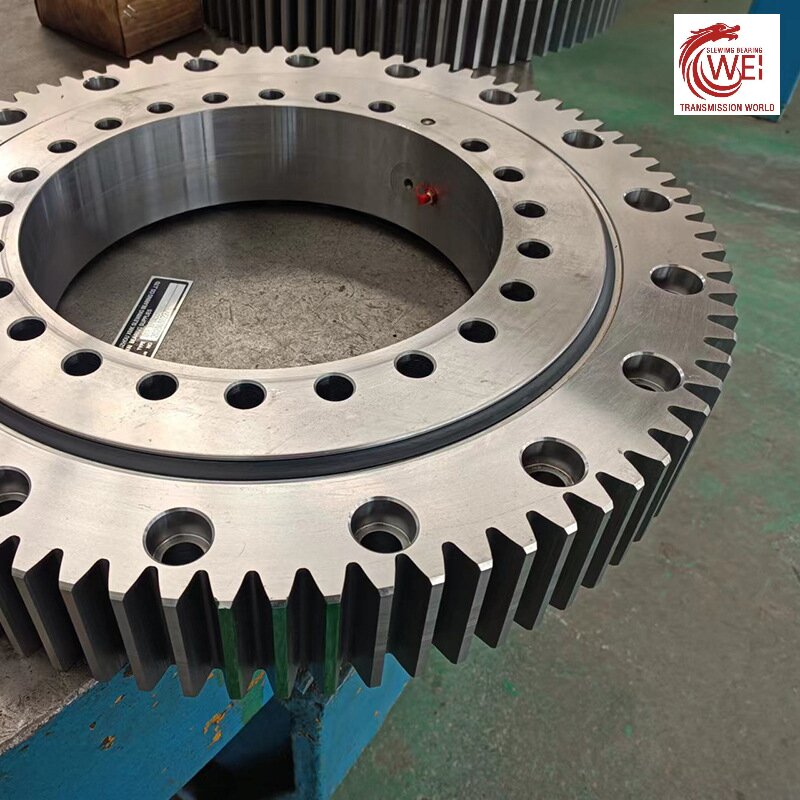

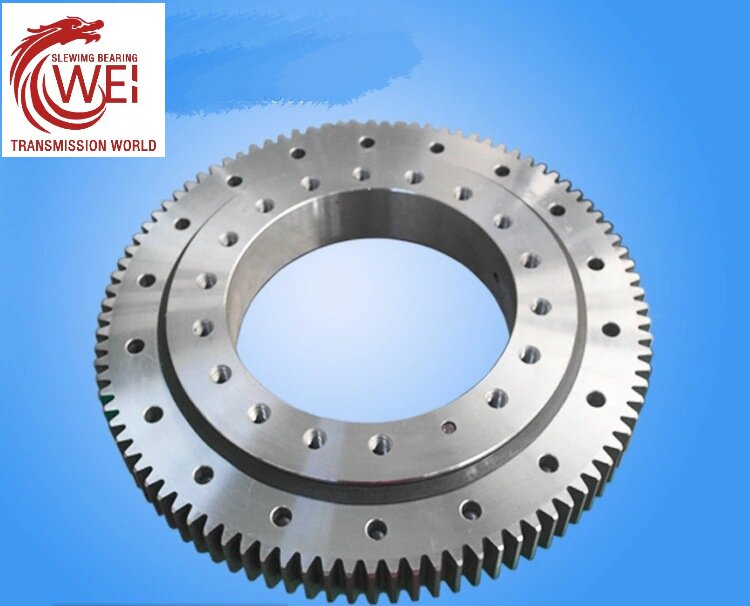

| Product Name: | Single row cross roller type slewing bearing | Service: | OEM Service.Design Service | |
| Net Weight : | 90kgs | Rolling element: | Roller & Spacer | |
| Warranty Period | 1 year | Testing | In house or third party | |
| KEY WORD | External gear Single row cross | Size | Standard OR Customized | |
| Height | 75 mm | H.S. Code | 848210900 | |
| Packaging Details | 1.Filling with rust-proof oil 2.packing with protective layers 3.Fixed in the plywood4.Packaging terms:Plywood case/ Pallet/Steel frame | MOQ | 1 SET |

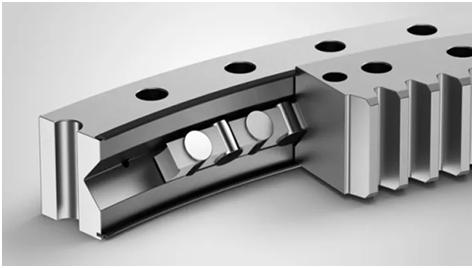

The crossed roller bearing is compact that reduces the thickness of the inner and outer ring to the lowest level. the bearing is suitable for position where the light weight, the compact style and he high-precision rotation in the inner ring are needed, such as the rotating part in mechanical watch
| Plane deviation of mounting bracket P (mm) | ||||
|---|---|---|---|---|
| Raceway center diameter | Plane deviation of mounting bracket P (mm) | |||
| DL(mm) | single row four ball | double row ball | cross roller | |
| ~1000 | 0.15 | 0.2 | 0.1 | |
| >1000~1500 | 0.19 | 0.25 | 0.12 | |
| >1500~2000 | 0.22 | 0.3 | 0.15 | |
| >2000~2500 | 0.25 | 0.35 | 0.17 | |
| >2500~4000 | 0.3 | 0.4 | 0.2 | |
| >4000~6000 | 0.4 | 0.5 | 0.3 | |
| >6000~8000 | 0.5 | 0.6 | 0.4 | |

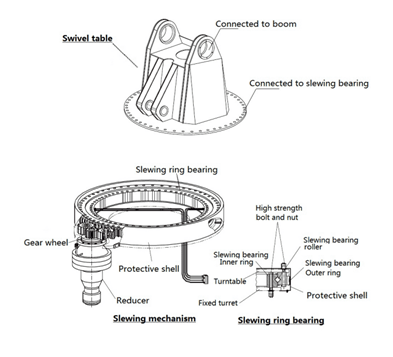

The slewing bearing is composed of three parts: the inner ring, the outer ring, and the rolling element. It can simultaneously carry a large axial force, radial force and a certain tilting moment. It is a general-purpose large-scale with comprehensive performance bearing. The inner and outer rolling rings have high-strength bolts respectively fixed on the turntable or chassis frame.
Longwei transmission slewing bearing Product type:
1.Single Row Four Point Contact Ball Slewing Bearings.
2.Single Row Crossed Roller Slewing Bearings
3Double Row Ball Slewing Bearings
4.Three Row Roller Slewing Bearings
5.Thin Section Slewing bearings(Light type).
6.Thin Section Slewing Bearings (Flange type)
– these preloaded slewing rings can support higher loads than four point contact bearings. They have proved themselves particularly where bearings are subjected to high radial forces and moderate axial and tilting moment loads
– they are suitable for applications with uniform running free from stick-slip, low rotational resistance and high requirements for axial and radial runout accuracy and rigidity, for example in robots, handling systems and machine tools.
FAQ
1.Are you a factory or a trading company?
1.We are a manufacturer of slewing bearing and slewing drive with experience over 18 years.
2.Our company covers area over 20000 square meters.
3.We have over 90 sets production machines, such as 4m CNC Raceway Quenching Machine,CNC integral tooth quenching machine,Gear
Milling machine,5m Vertical Lathe etc.>> 2.What are your advantages compared with others?
1.Passed ISO9001:2015, CCS, SGS ,BV certificates;
2.Timely & dependable delivery, good quality and competitive price enable our company to maintain 30% increase on annual sales;
3.Patented slewing bearing and slewing drive.
4.Passed the Factory -Audit process and established cooperation with world-famous companies, such as etc.
5.How do you guarantee the delivery time?
We have strict production schedule and keep stock of material for standard models to ensure the delivery time.
25-30 days for standard model;
45-55 days for customized model.
Please feel free to contact me if you have any questions or requirements.
Reviews
There are no reviews yet.
