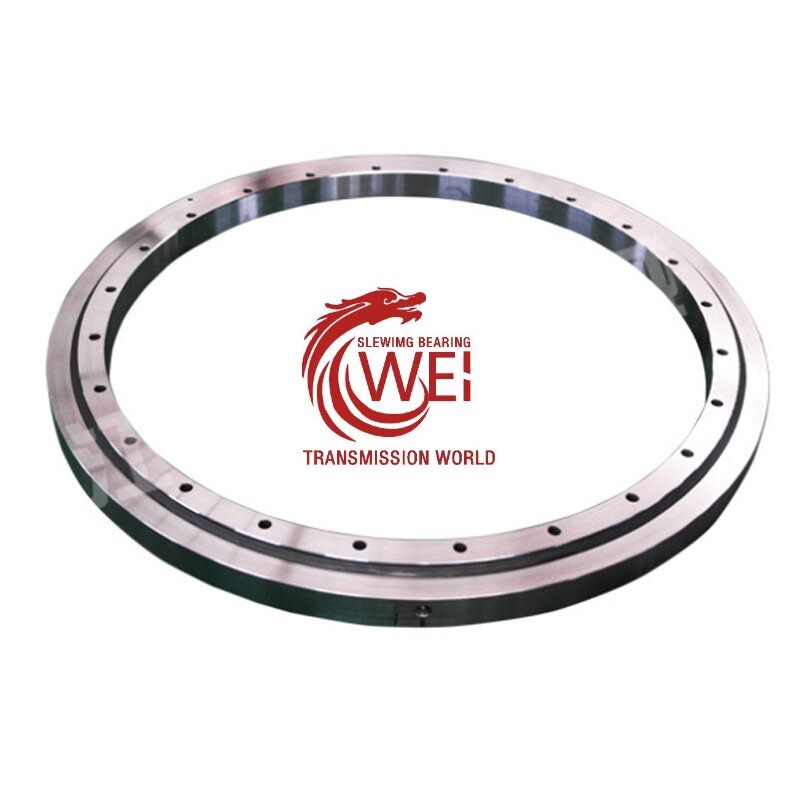

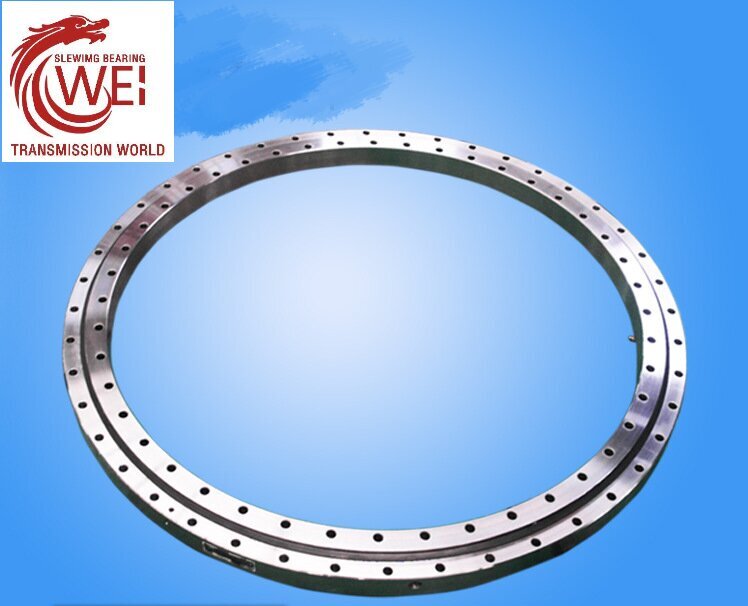

Light Type slewing ring, slewing ring, compact structure, not easy to deform, selected materials, high manufacturing accuracy, small assembly clearance,
durable, light slewing ring, slewing ring, various specifications, and wide application for the food machinery, canning machinery and environgmental machinery.
SHORT DESCRIPTION:
- Light type is also named Thin section Slewing bearing
- It has same structure with Single row Ball slewing bearing
- Light type Slewing bearing have light weight, rotate flexibly
- Our Warranty is 12 Months
| Products | discription | |||
|---|---|---|---|---|

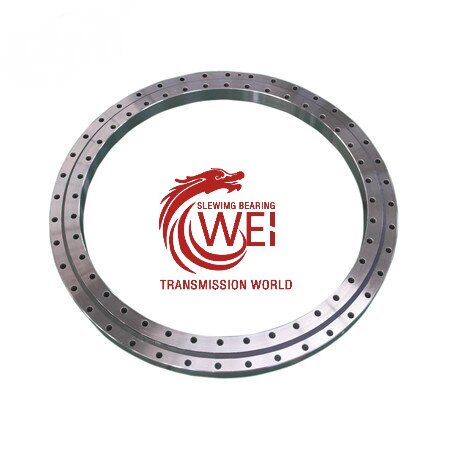

| Model Number: | 060.20.0744 | Brand name | longwei | |
| Production Experience | Since 2004 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Construction works , Energy & Mining | |
| Feature: | Four Point Contact ball | Gear Options: | NON Gear Only | |
| Material: | 50Mn/Customized | Seals Type: | NBR or as requirement | |
| Bearing Type: | Single Row Four Point | CERTIFICATE: | ISO9001:2008/SGS | |
| Bore Diameter | 672 mm | Outside Diameter | 816mm | |
| Operating tempereature: | -30°C +70°C | Hardness: | 55HRC-62HRC | |
| Product Name: | Non geared light type thin bearing | Service: | OEM Service.Design Service | |
| Net Weight : | 52kgs | Rolling element: | Ball & Spacer | |
| Warranty Period | 1 year | Testing | In house or third party | |
| KEY WORD | Slewing bearing price/slewing ring/swing circle/slew gear | Size | Standard OR Customized | |
| Height | 56 mm | H.S. Code | 848210900 | |
| Packaging Details | 1.First lubricated, Second circled with plastic film,kraft paper,blue belt,then packaged inwooden case,last gathered in Wooden pallet.2 According to your requirements | MOQ | 1 SET | |

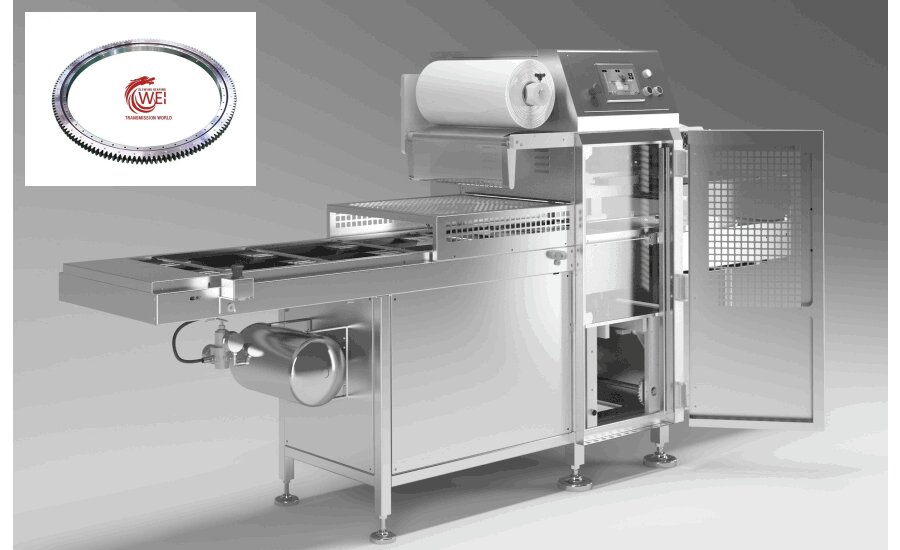

| Customized: | ACCEPT | Application: | Food machinery, canning machinery | |
Our factory, longwei slewing bearing co.,ltd can produce both standard and non-standard products.
As meeting customers’ demand is our service principle.
We provide spot, generation processing, drawing processing, sample processing, free design and other services.
FAQ :
1 LW Slewing Bearing Heat Treatment
Heat Gear Slewing Bearings are in the majority of cases supplied with spur tooth. Stub teeth also is ok.There are two kinds of tooth hardening. They are normalizing and tempering, According to the different applications, there are two ways of quenching. They’re whole tooth quenching and single-tooth quenching. Single-tooth quenching can be divided into tooth surface & root quenching and tooth surface quenching.
2 . The Calculation of Slewing Bearing.
Static load capacity
The determined loads must be multiplied with a factor fstat allocated to the application. The product Fa’ or Mk’ must be below the static critical load curve of the selected bearing.
With regard to radial loads in load combinations
Fa = axial load
Fr = radial load
Mr = tilting moment
3 Protection Against Corrosion
We make Protection Against Corrosion on surface of bearing,and make couple of packing paper.
4.Customize.
Yes,we have professional technical terms.
5.Warranty:
General 1 year.
About Longwei
Provide you with customized industry solutions
More than ten years of production experience, strict quality control can be the guarantee of the best solution in the industry.
China’s leading supplier of slewing bearings, its products have passed ISO 9001 and CAPE certification, and has a number of product patents.
The flexibility of our dialogue and approach with our clients is combined with responsive design and development innovation to ensure exceptional delivery.
FAQ
Do you have any questions about our slewing bearing? Maybe you can find the answer below. If the answer below does not solve your problem, please contact us and our engineer will answer it for you.
1. Where is your slewing bearing manufactured?
Our slewing bearings are all manufactured in China. We not only have the ability to design and produce slewing bearings but the quality can also be guaranteed. At the same time, our slewing-bearing price is more favorable.
2. I don’t know which slewing bearing to use, can you choose for me?
Yes, of course, Each model has a parameter list on the website. You can choose the suitable slewing bearing according to these parameter lists. If you don’t know how to choose, you can get in touch with us and our engineers will work with you to choose the suitable product. We can also design a new slewing bearing solution for you according to your equipment.
3. Can I get your product catalog?
You can get our product catalog in the download or contact us, we will send the product catalog to you by email or other ways.
4. Can you customize products?
Yes, we can. Our engineers have very rich experience in slewing bearing design. On the customized slewing bearing page, you can see some special customized products designed by our engineers. These design solutions meet the special needs of many customers. Our engineers can also work with you to design a new slewing bearing.
5. Can you provide accessories?
Yes, we can provide matching spare parts such as motors, hydraulic motors, and encoders that are compatible with slewing bearings.
6. Can you provide a 3D model?
Yes. All our slewing bearings have 3D models, you can contact us to get them. At the same time, we can also provide CAD files and PDF files.
7. How long is your slewing bearing warranty period?
Our slewing bearing warranty time is 12 months. When you install, use, and store the slewing bearing, please refer to the slewing bearing instruction manual.
8. Can you choose the color of your slewing bearing?
Yes. Our slewing bearing is available in many colors. If you have special requirements, please tell our sales engineers, we are happy to provide services for you.
