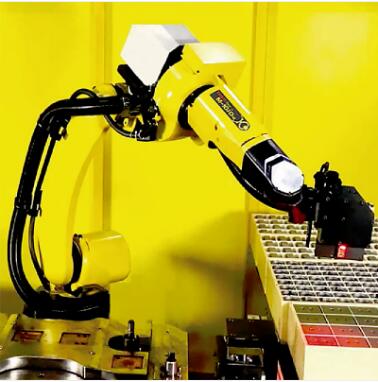

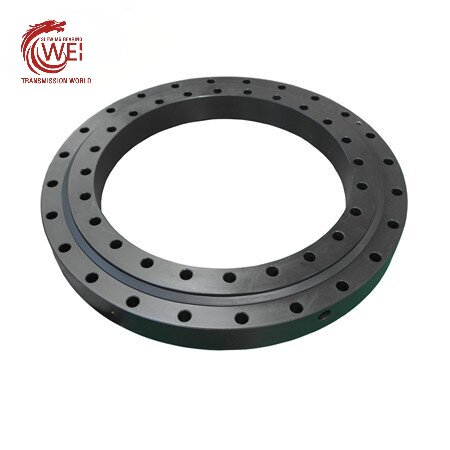

060.20.0414 Non-gear Long Life Time Light type SB for Nachi logistics storage and handling robot

The light slewing bearing has the same structure with four point contact ball slewing bearing, but the weight is light and could be used for some light type machinery applications. The materials of the light load slewing ring are mainly 50Mn, 42CrMo and C45. The light duty slewing ring is low profile and has an excellent performance.

The light slewing bearing mainly includes the external ring & internal ring, the grease fittings, the sealing belt, the spacers, the load plug and the taper pin, the characteristics: the internal ring and the external ring are both L-shaped; The flank surface of ring is provided with a grease cup, steel balls is assembled between the external ring and internal ring on integration. each ball is separated by spacer, the steel balls and the spacers are installed through the load plug, and the taper pin to protect the ball running.

Note: The light slewing bearing mounting surface must meet the specified flatness and hardness. For special customized requirements, please contact my engineer. At the same time, we will provide a more comprehensive and targeted solution.

No gear long time light type slewing bearing for handling SEER robot

products discription
Model Number:060.20.0414Brand namelongwei
Production ExperienceSince 2004Applicable Industries:Insdustry robot
Feature:Four Point ContactGear Options:with External gear
Material:50Mn/42CrMo/CustomizedSeals Type:NBR
Bearing Type:Single Row Ball slewing bearingCERTIFICATE:ISO9001:2008/SGS
Bore Diameter342 mmOutside Diameter486mm
Application:Insdustry robotRACEWAY hardness:55 -62HRC
Product Name:single row ball without gear slewing bearingService:OEM Service.Design Service
Net Weight :29kgsMaterial of Rolling element:GCR15
Warranty Period1 yearTestingIn house or third party
OriginCHINASizeStandard OR Customized
Height56mmH.S. Code848210900
Packaging Details1. Industrial Neutral Packing 2. Package as your requirements.3. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton 4.Large size Bearings:Plastic film+pergamyn paper+Roll tape+Wooden BoxPrecision

The Thin section slewing bearing has the same structure with the ordinary slewing bearing,but the weight is light,and rotate flexibly,which widely used in the, indursty robot,  food machinarey,canning machinery and environmental machinery etc.

Small diameters and thin sections  slewing bearing (060 series) are the main characteristics of robots application. These particular slewing bearings require strict process control. Longwei transmission Slewing Bearings are very well-known in the world to accept the highest rotating speed and to control the temperature during working 24 hours a day. Our quality gives a very low level of maintenance. The xuzhou wanda slewing rings manufacture millions of bottles all around the world everyday.



thin-type-external-gear-06series-technical-parameter_-scaled
drawing-for-060.20.0414

Light slewing bearing’s characteristics: the internal ring and the external ring are both L-shaped; The flank surface of ring is provided with a grease cup, steel balls is assembled between the external ring and internal ring on integration

Note:

  • n1 is No. of lube holes, the user can specify the lube hole position.
  • n-φ can be changed to threading holes, hole diameter M, thread depth 2M.
  • There are standard products in the catalog, and the inner and outer diameters are random tolerances. If there is a locating requirement for slewing bearing, please indicate the site and tolerance.
  • It is standard type of our products, if you need more please contact with engineer.
