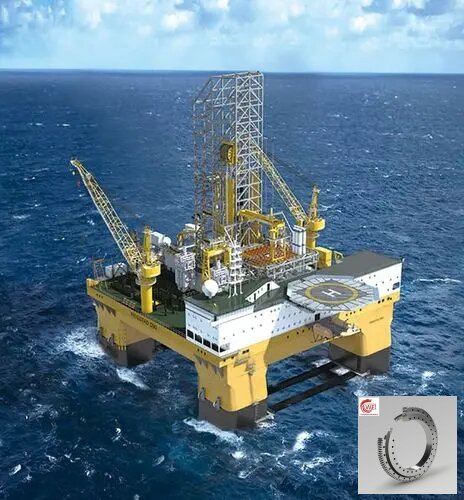

Machinery and equipment in the oil and gas industry are exposed to the harshest environmental conditions. For the harsh conditions to be withstood, particularly robust bearings are needed here. Our LONGWEI slewing bearings have already been used for drilling rig units for many years. Their resilient construction and high reliability make them perfect for extracting crude oil, natural gas, brine and water.
Slewing bearing is also called slewing ring, slewing ring bearing, turntable bearing, and rotary bearing.

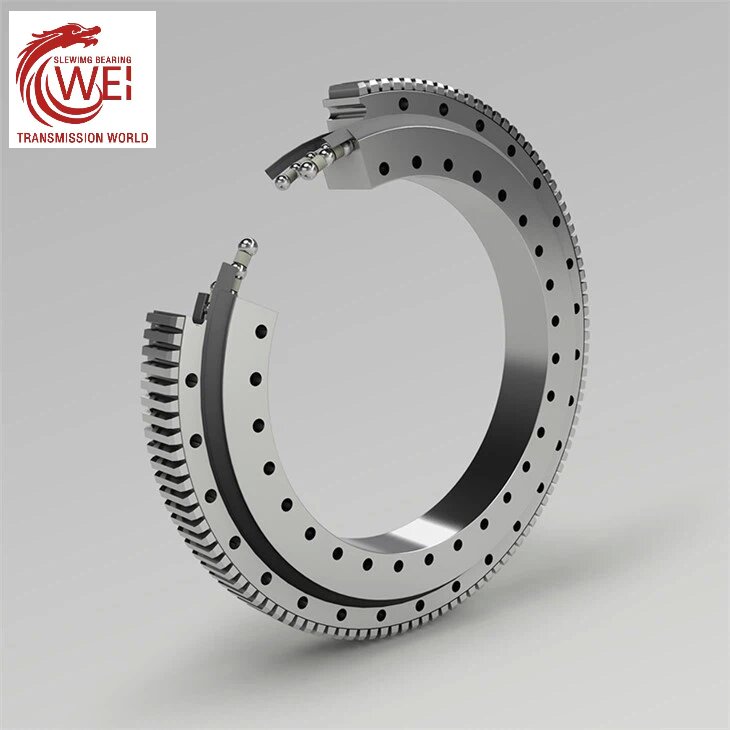

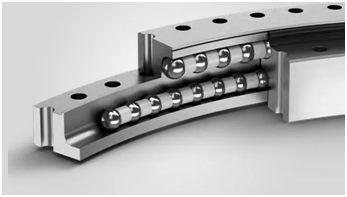

The double row ball slewing bearing has three seat-rings. The steel balls and the retainers may be directly arranged into the upper and lower racers. Two rows of steel balls with different diameters are fitted according to the force. Such open type fitting is extraordinary convenient, the loading angels at upper and lower races are 90° Which can carry both of the axial force and capsizing moment. When the radial force is larger than 1/10 of the axial force, the races should be newly designed.
2. Structure:
Double row ball slewing bearing has three different types:
Double row ball slewing bearing with no gear

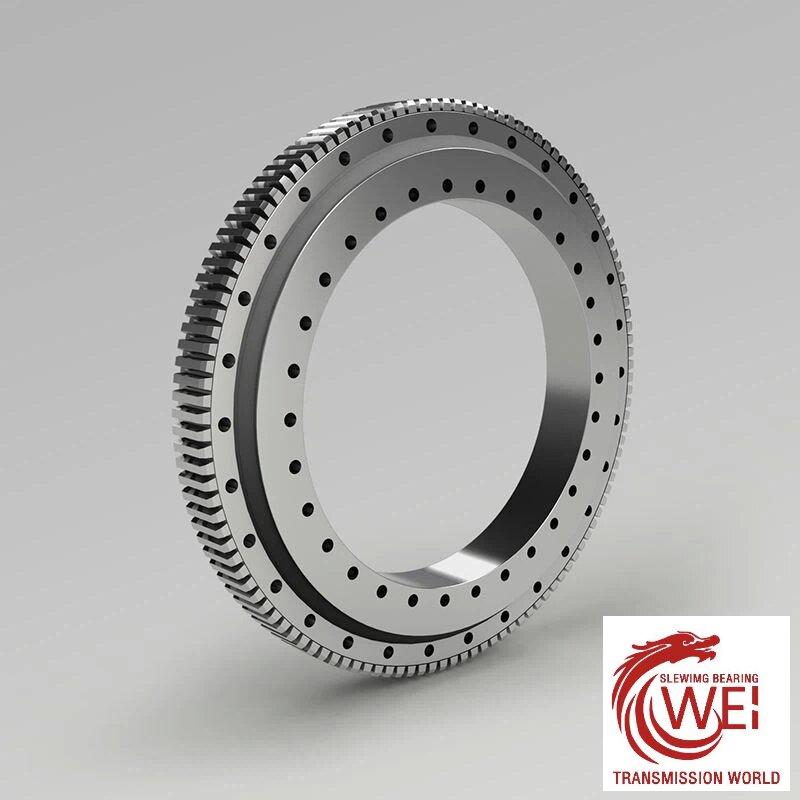

Double row ball slewing bearing with external gear
Double row ball slewing bearing with internal gear
3. Features:
Double row ball slewing ring bearings have following features:
Larger dimension of axial and radial and compact structure.
Note
- n1 is the nos of lubricating holes.Oil cup M10×1JB/T7940.1~JB/T7940.2.The Oil nipple’s location can be change according to the user’s application.
2. n-φcan change to tapped hole,the diameter of tapped hole is M,depth is 2M.
3. The tangential tooth force in the form is the max tooth force,the nominal tangential tooth force is 1/2 of the max one.
4. “K” is addendum reduction coefficient.
LONGWEI Transmission Slewing Bearing Co.,Ltd. is a slewing bearing manufacturer specializing in standard and non-standard slewing bearing.Over the years, we supplied high quality product & good service to every user and gain good credit.We have strict quality control system in our own factory,meanwhile, we have passed ISO9001-2008
| Products discription | |||
|---|---|---|---|
| Model Number: | 024.40.1800 | Brand name | longwei |

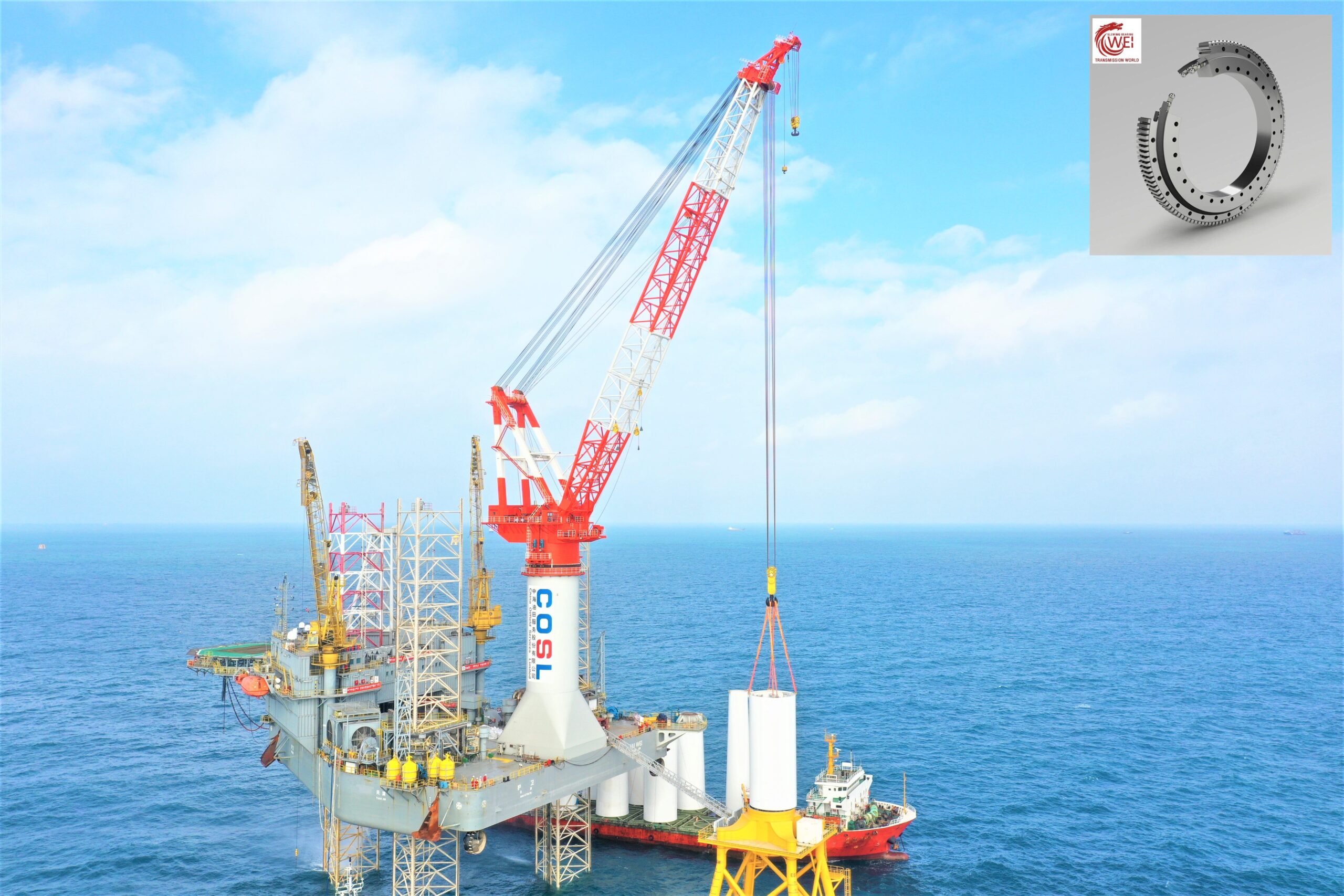

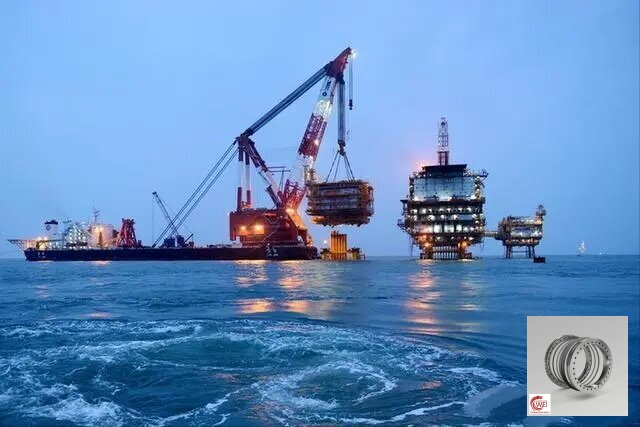

| Production Experience | Since 2004 | Applicable Industries: | Marine Drilling Platform |
| Feature: | THREE ROW ROLLER | Gear Options: | Internal Gear |
| Material: | 50Mn/42CrMo/Customized | Seals Type: | Nitrile Rubber or as requirement |
| Structure | Double Row Ball Slewing Bearing | CERTIFICATE: | ISO9001:2008/SGS |
| Bore Diameter | 1650 mm | Outside Diameter | 1940mm |
| Operating tempereature: | -30°C +70°C | Hardness: | 55-62HRC |
| Product Name: | Double row variable diameter ball slewing bearing | Service: | OEM Service.Design Service |
| Net Weight : | 768kgs | Rolling element: | Ball Bearings |
| Warranty Period | 1 year | Testing | In house or third party |
| Separated: | Unseparated | Size | Standard OR Customized |
| Height | 134 mm | H.S. Code | 848210900 |
| Packaging Details | 1.First lubricated, Second circled with plastic film,kraft paper,blue belt,then packaged inwooden case,last gathered in Wooden pallet.2 According to your requirements | Load Direction: | Axial |
| Plane deviation of mounting bracket P (mm) | ||||
|---|---|---|---|---|
| Raceway center diameter | Plane deviation of mounting bracket P (mm) | |||
| DL(mm) | single row four ball | double row ball | cross roller | |
| ~1000 | 0.15 | 0.2 | 0.1 | |
| >1000~1500 | 0.19 | 0.25 | 0.12 | |
| >1500~2000 | 0.22 | 0.3 | 0.15 | |
| >2000~2500 | 0.25 | 0.35 | 0.17 | |
| >2500~4000 | 0.3 | 0.4 | 0.2 | |
| >4000~6000 | 0.4 | 0.5 | 0.3 | |
| >6000~8000 | 0.5 | 0.6 | 0.4 | |
