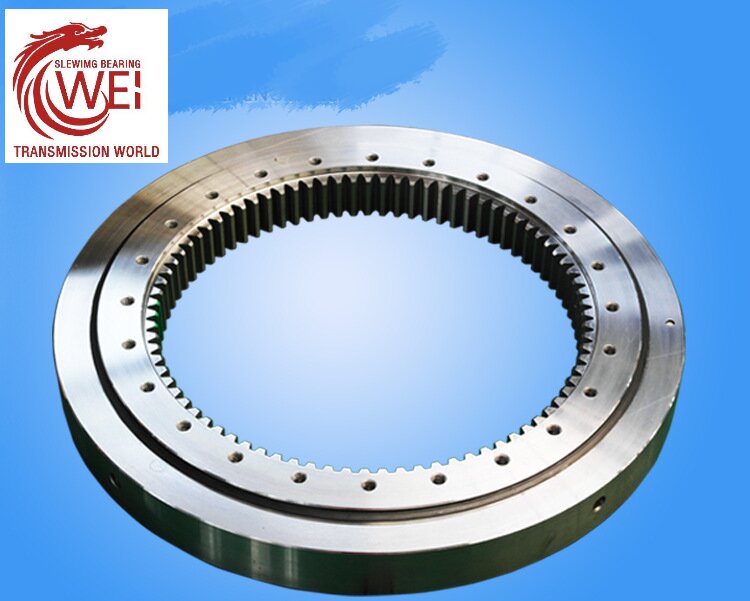

Internal tooth slewing bearing single row ball 4-point contact 013 series
The inner and outer gears of the slewing ring are directly toothed on the inner or outer ring, and are processed by a gear hobbing machine or a gear shaper. If the working environment is loaded, it needs to be quenched. The internal gear slewing ring: the overall appearance is relatively neat, There is no need to install a safety cover at the meshing part of the gear and the slewing ring. The gear has better dust resistance, longer retention time by adding lubricant, and lower transmission contact stress of internal gear meshing, less wear and longer service life.

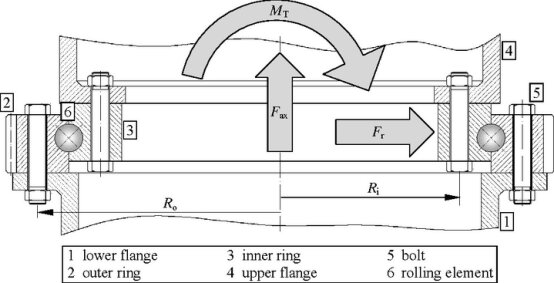

Single-row four point contact ball type slewing bearing is composed of two socket sleeves and is compact in structure and light in weight .Due to its steel balls contact with circular rollingtrack on four points,it can bear axialforce ,radial force and overturning moment at the same time
Note:
- n1 is No. of lube holes, the user can specify the lube hole position.
- n-φ can be changed to threading holes, hole diameter M, thread depth 2M.
- There are standard products in the catalog, and the inner and outer diameters are random tolerances. If there is a locating requirement for slewing bearing, please indicate the site and tolerance.
- It is standard type of our products, if you need more please contact with engineer.
Our factory, longwei slewing bearing co.,ltd can produce both standard and non-standard products.
As meeting customers’ demand is our service principle.
We provide spot, generation processing, drawing processing, sample processing, free design and other services.
The slewing bearing is also called the slewing bearing, and some people also call it: rotating bearing, slewing bearing. The English names are: slewing bearing, slewing ring bearing, turntable bearing, slewing ring. Slewing bearings are widely used in the real industry. They are called “joints of machines”. They are mechanical places that require relative rotational movement between two objects, but also need to bear axial force, radial force, and tilting moment at the same time. An important transmission component necessary. With the rapid development of the machinery industry, slewing bearings have been widely used in marine equipment, engineering machinery, light industry machinery, metallurgical machinery, machinery, industrial machinery and other industries.
Product type
Single Row Four Point Contact Ball Slewing Bearings.
2.Single Row Crossed Roller Slewing Bearings
3Double Row Ball Slewing Bearings
4.Three Row Roller Slewing Bearings
5.Thin Section Slewing bearings(Light type).
6.Thin Section Slewing Bearings (Flange type)
Production planning
- Slewing bearing can bear axial, radial load and tilting moment load simultaneously. It can be combined with pinion, planetary gearbox and motors…
We have strict production schedule to assure the delivery time, the production schedule as below:
- Slewing bearing can bear axial, radial load and tilting moment load simultaneously. It can be combined with pinion, planetary gearbox and motors…
- A. Forging purchase period: 15-20 days
B. Production process:
1. Rough turning: 2-3 days
2. Raceway heat treatment: 2 days
3. Fine turning: 2 days
4. Gear cutting: 4-5 days
5. Drilling: 2-3 days
6. Final turning: 2 days
7. Assembling and Inspection: 2 days
C. Packing and delivery to Port: 3-5 days
Totally about 40-50days
- A. Forging purchase period: 15-20 days
FAQ
1: How to order?
Please refer to the help under the single payment.
2.What are the shipping methods?
Ocean shipment to the port close to your city; Air shipment to the airport close to your company; Door to door service by international express.
3.When can I get the price?
We usually quote within 12 hours after we get your inquiry. If urgent to get the price, please call us or tell us by email , we will regard your inquiry priority.
4.You are a trader or a manufacturer?
We are an industry and trade integration business, our factory located on Xuzhou City.
5.How about the payment terms?
We usually accept T/T or L/Cat sight . other terms also could be negotiated.
6.What is your minimum order?
It depends on what you are buying. Normally, our minimum order is 1pcs.
7.What is your delivery time?
If there are any parts in stock , our delivery time is only 3-7 days. If our standard model,the delivery time is around 25 days,if non-standard model,the delivery time is 38~45 days.
