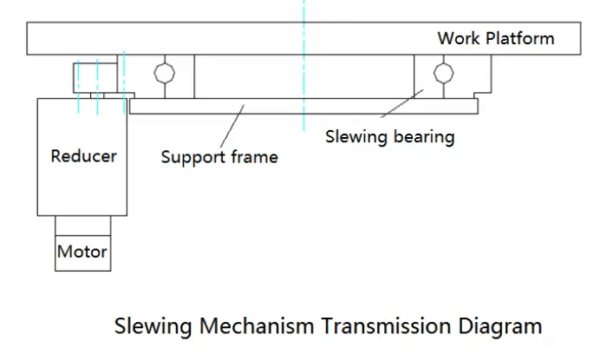

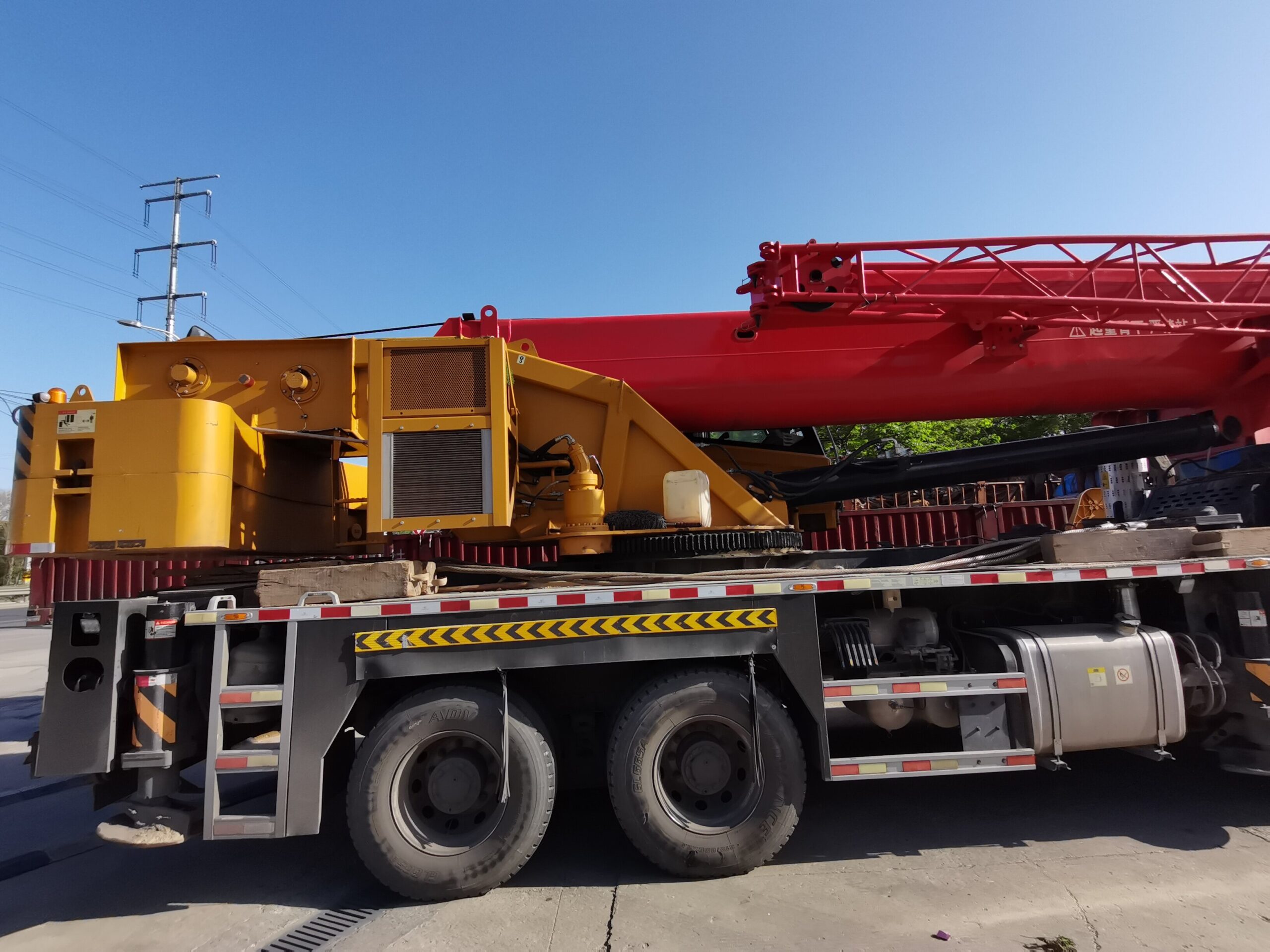

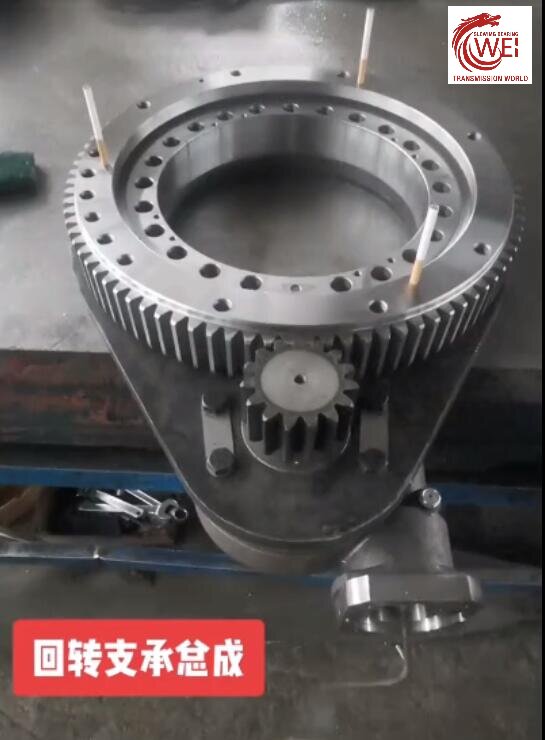

The slewing mechanism is composed of a supporting device, a slewing bearing and a turntable. The slewing bearing is an important force-bearing component.
The slewing mechanism is composed of a supporting device, a slewing bearing and a turntable. The slewing bearing is an important force-bearing component. It not only bears the dead weight of the rotating part of the crane, but also bears the vertical force of the lifting load and the force of the tipping moment. During use, there must be wear and tear, and the performance of related mechanical parts will gradually deteriorate or even be damaged.
Common faults of the slewing mechanism mainly include excessive slewing bearing clearance (wild movement), slow movement (weakness) or immobility of the slewing system, abnormal system pressure, and oil leakage. How can I solve a problem?

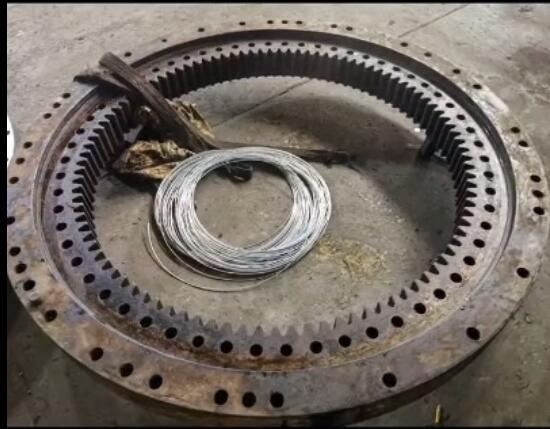

- The slewing bearing clearance is too large (open movement)
This is because the worm gear, driving gear and slewing bearing gear of the slewing reducer are seriously worn. Please check the clearance with a dial indicator. If it is too large, the slewing ring bearing should be disassembled and replaced and related parts replaced.。
- The slewing system moves slowly (weak) or does not move
The hydraulic motor is malfunctioning, the reducer is malfunctioning, there is an overload, the overflow valve, the manual control valve is malfunctioning. Damage to the gear of the slewing reducer, the plunger or bearing of the hydraulic motor is stuck or severely worn, and the output shaft of the hydraulic motor is broken. These problems will cause the slewing system to move slowly or not move. Check and adjust the faulty parts and replace them if necessary. If it is overloaded, check the lifting weight again.
- System pressure is abnormal系
- Oil spill

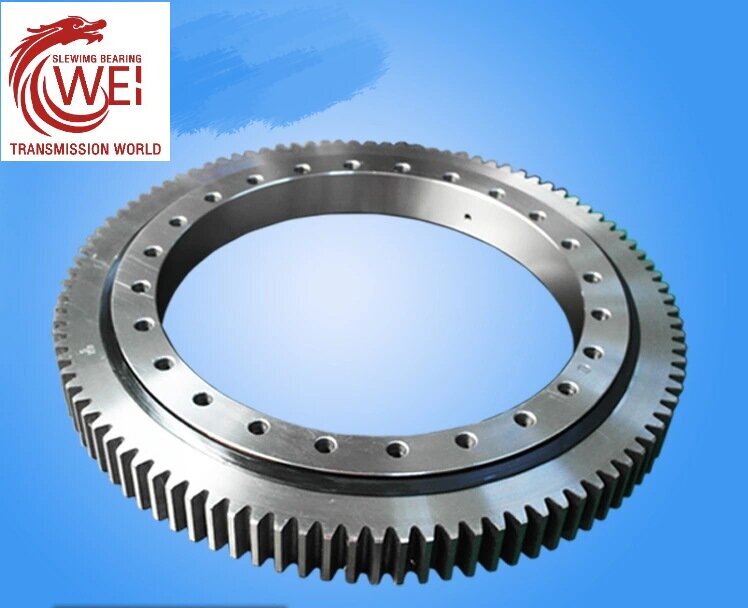

Slewing bearing its gear precision grade should be between 7 to 11, which determines the smoothness of the slewing bearing drive, load distribution uniformity and transmission accuracy. The higher the slewing bearing gear precision, the more intensive the mesh tooth surface contact spots, so that the noise value is reduced, the smoothness of operation improved.
The contact and bending strength of gears under ultimate and fatigue loads were calculated and verified according to ISO6336-1:2006, ISO6336-2:2006 and ISO6336-3:2006 respectively. Sf is 1.48 and the gear mesh clearance is adjusted for the highest point of radial run out of the slewing bearing gear pitch circle. The minimum tooth clearance is typically 0.03 to 0.04x modulus, and the gear mesh clearance of the pinion gears on the entire circumference needs to be re-checked after final fastening of the slewing bearing .

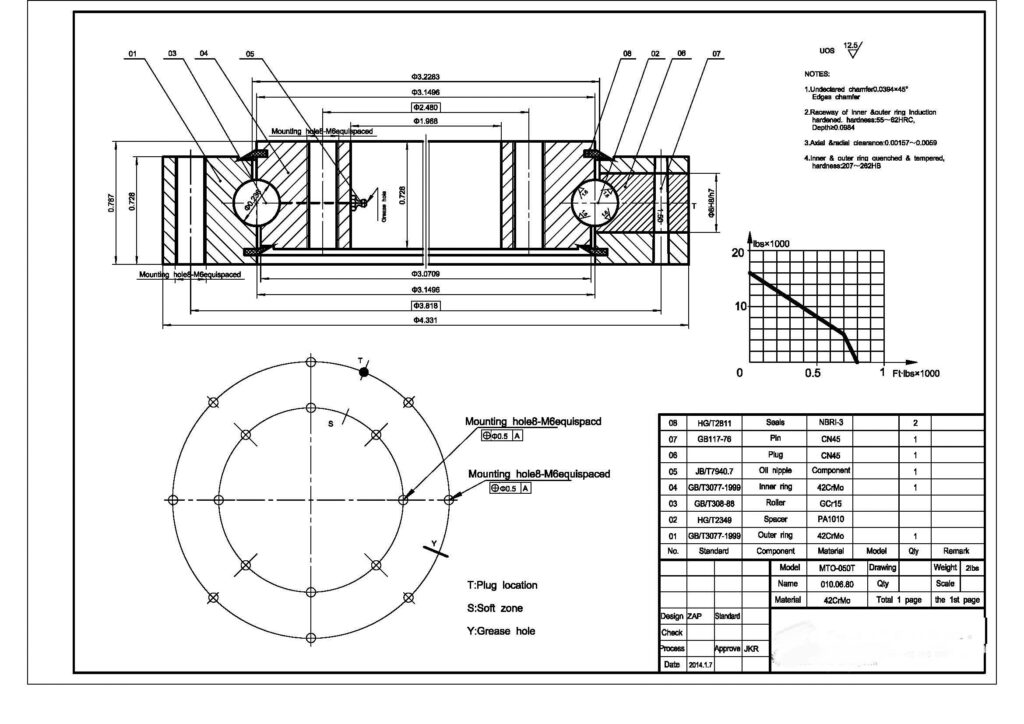

Single-row four-point contact ball slewing ring internal ball machining accuracy and internal raceway machining accuracy is not high, or there are quality defects and lack of lubricating oil in the raceway roller and spacer collision, directly affect the smooth operation of the slewing ring and noise, so when checking the slewing ring defects, sometimes by replacing the ball to reduce the frequency of failure.
Due to the gear under load after a long working time, there will be a small piece of metal or strip of metal near the pitch line, pitting or gnawing metal chips off, the formation of pitting or teeth. The slewing bearing tooth surface pitting with the increase in working time and expanding so that the slewing bearing mesh tooth damage, tower crane rotary noise and impact increases, the cycle of impact down the metal particles and accelerate the wear of the slewing ring tooth surface, forming a vicious cycle. In addition, the manufacturing and assembly of the starter motor in the slewing ring mechanism has its own defects to produce impact jitter, and the engagement process of the drive wheel with the slewing bearing is unstable, which also increases the frequency of jitter and reverberation noise decibels.
If the weld quality is not up to standard, the weld defect needs to be reworked and rewelded. In the repair welding repair will not only produce new welding stress and the flatness of the machined mounting surface will also have a great impact, at the same time the welding current generated in the slewing bearing through the internal rolling body and slewing ring raceway will also cause some damage. In addition, assembly errors in manufacturing assembly, field installation of the pin threading and bolt preload can also produce abnormal noise or chatter if the requirements are not met.
How to maintain the slewing bearing of a truck crane?
- Visually inspect the bolts on slewing bearing before each crane operation or at least once a week;
- After the slewing bearing starts to work for 100 hours, check whether the bolts are loose, and check again after 300 hours; Then check every 500 working hours.
- The slewing bearing shall be filled with lithium grease before installation;
- When replacing the bolt, wipe the bolt clean, apply thread fastening glue and then tighten it.

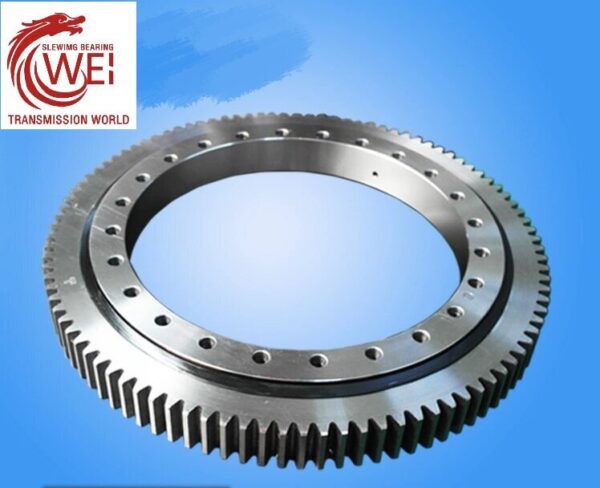

slewing ring main forms are external and internal type, the large and small gears mesh poorly, sometimes tight, sometimes loose, in the slewing ring tooth run out maximum position meshing too tight produce noise. So the manufacturing process is critical. Slewing bearing just left the factory in idling will issue a steel ball rolling uniform sound, which is normal. Such as in the uniform normal ringing accompanied by another abnormally large ringing is abnormal. There are many reasons for the failure.
