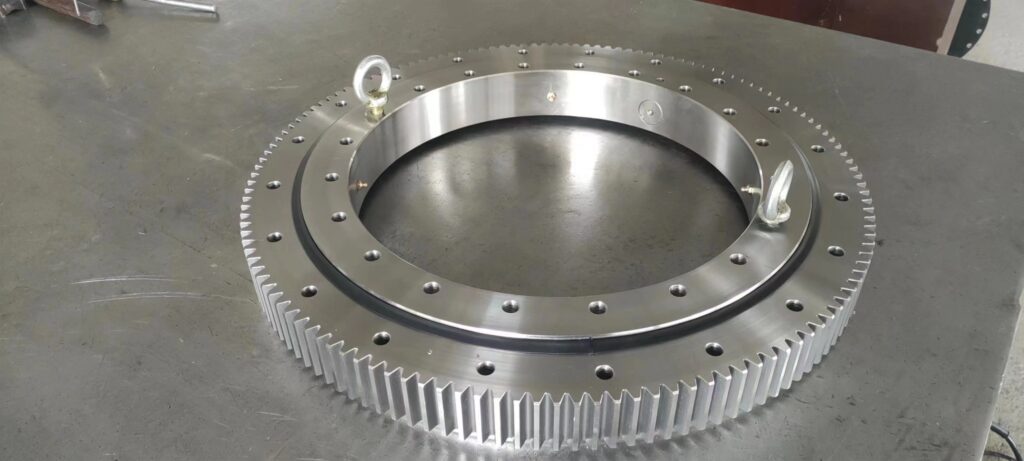

011.25.520 Single row ball slewing-bearing with external gear -for Cement mixer

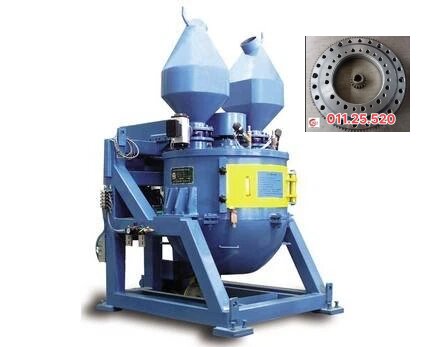

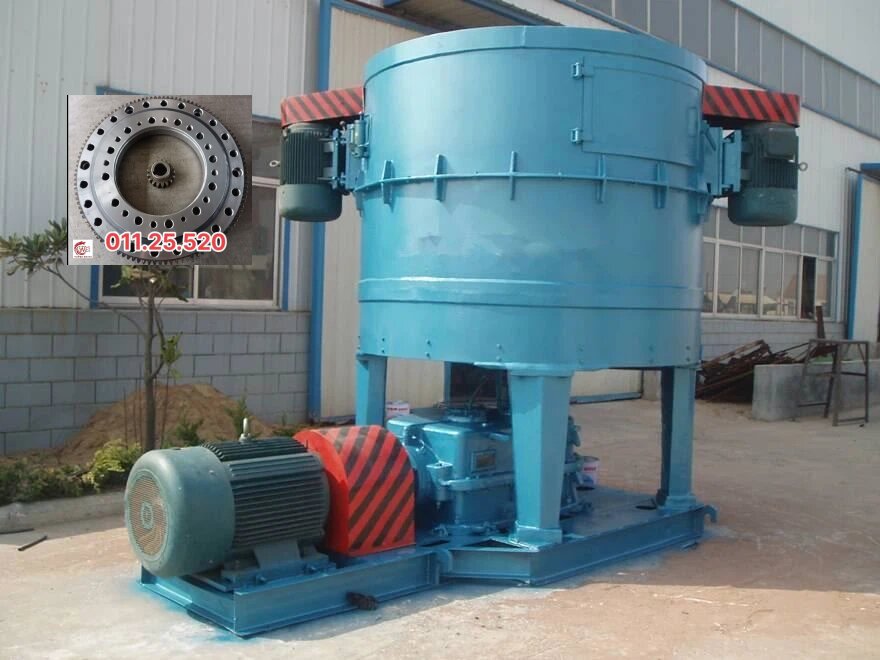

With the emphasis on environmental protection, the traditional casting technology has gradually developed into an advanced and enviroExternal-gear-Single-row-ball-slewing-bearing-for-sand-mixernmentally friendly casting technology. The process technology of large castings is also inseparable from advanced process equipment. Under the premise of the continuous improvement of automatic control technology, the casting process of self-hardening sand molding requires higher and higher precision of sand mixing. Sand mixing machine is to make the components of the sand evenly mixed, and make the binder effectively coated on the surface of the sand. Sand mixing machine is the main equipment of casting sand processing molding sand mixing and is also the key equipment to obtain qualified molding sand. The sand mixer uses the relative movement of the roller and the roller plate to crush the material between them by rolling and grinding. The sand mixer also mixes the material while crushing the material. It is an ideal equipment for producing free brick, lime sand brick, cement brick, firebrick, pulverized and mixed fly ash, boiler slag, tailing slag and industrial waste slag as raw materials for brick making.

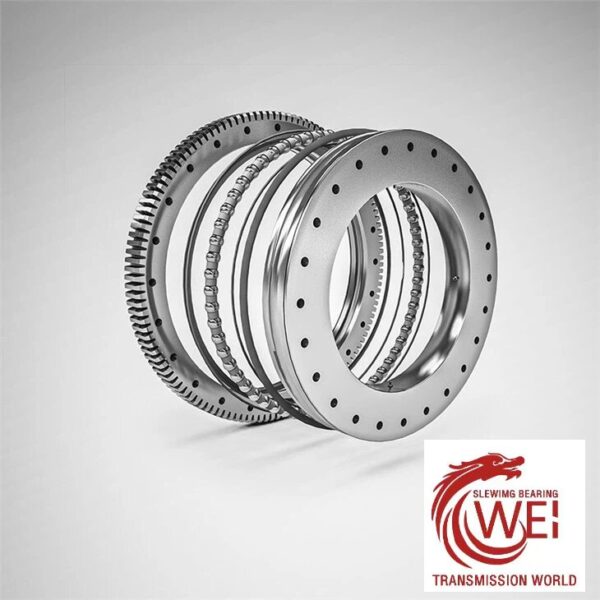

Slewing ring can bear axial, radial load and tilting moment load simultaneously. It can be combined with pinion, planetary gearbox and motors…
We have strict production schedule to assure the delivery time, the production schedule as below:
A. Forging purchase period: 15-20 days
B. Production process:
1. Rough turning: 2-3 days
2. Raceway heat treatment: 2 days
3. Fine turning: 2 days
4. Gear cutting: 4-5 days
5. Drilling: 2-3 days
6. Final turning: 2 days
7. Assembling and Inspection: 2 days
C. Packing and delivery to Port: 3-5 days
Totally about 40-50days
The products are widely used in engineering machinery, building machinery, metallurgical and mining machinery, shipping port machinery, environmental protection machinery, light industry machinery, petroleum chemical machinery, engineering vehicle, war industry equipment and so on.

Note

1. n1 is the nos of lubricating holes.Oil cup M10×1JB/T7940.1~JB/T7940.2.The Oil nipple’s location can be change according to the user’s application.
2. n-φcan change to tapped hole,the diameter of tapped hole is M,depth is 2M.
3. The tangential tooth force in the form is the max tooth force,the nominal tangential tooth force is 1/2 of the max one.
4. “K” is addendum reduction coefficient.
Xuzhou XZWD Slewing Bearing Co.,Ltd. is a slewing bearing manufacturer specializing in standard and non-standard slewing bearing.Over the years, we supplied high quality product & good service to every user and gain good credit.We have strict quality control system in our own factory,meanwhile, we have passed ISO9001-2008

Our advantage

Rich production experience

We specialize in the production of slewing bearings and slewing drives with 15 years of experience.

Production equipment

Precision CNC lathes and digital management systems. Our technicians will perform regular scheduled maintenance on these machines to ensure they are working properly.

High-quality raw materials

We mainly use raw materials from large steel mills, such as Tianjin Iron and Steel, Baosteel, Shagang, which are the best and largest raw material manufacturers in China.

Strict physical and chemical testing procedures

Meet product design and process requirements and provide reliable test data.

short delivery time

The general order lead time is 5-15 days. We also stock some standard size slewing rings and slewing drives, which we can ship quickly if you need them.

Safe Packing

Coat the product with anti-rust oil before shipping, wrap it with plastic sheet to protect the inner surface, and finally pack it with seaworthy packing or wooden box.

Best after-sale service

More than 60% of the products are sold to the United States, Europe, Southeast Asia, the Middle East, and are deeply trusted by domestic and foreign customers.

About Longwei

Provide you with customized industry solutions

More than ten years of production experience, strict quality control can be the guarantee of the best solution in the industry.
China’s leading supplier of slewing bearings, its products have passed ISO 9001 and CAPE certification, and has a number of product patents.

The flexibility of our dialogue and approach with our clients is combined with responsive design and development innovation to ensure exceptional delivery.

FAQ

Do you have any questions about our slewing bearing? Maybe you can find the answer below. If the answer below does not solve your problem, please contact us and our engineer will answer it for you.

1. Where is your slewing bearing manufactured?
Our slewing bearings are all manufactured in China. We not only have the ability to design and produce slewing bearings but the quality can also be guaranteed. At the same time, our slewing-bearing price is more favorable.

2. I don’t know which slewing bearing to use, can you choose for me?
Yes, of course, Each model has a parameter list on the website. You can choose the suitable slewing bearing according to these parameter lists. If you don’t know how to choose, you can get in touch with us and our engineers will work with you to choose the suitable product. We can also design a new slewing bearing solution for you according to your equipment.

3. Can I get your product catalog?
You can get our product catalog in the download or contact us, we will send the product catalog to you by email or other ways.

4. Can you customize products?
Yes, we can. Our engineers have very rich experience in slewing bearing design. On the customized slewing bearing page, you can see some special customized products designed by our engineers. These design solutions meet the special needs of many customers. Our engineers can also work with you to design a new slewing bearing.

5. Can you provide accessories?
Yes, we can provide matching spare parts such as motors, hydraulic motors, and encoders that are compatible with slewing bearings.

6. Can you provide a 3D model?
Yes. All our slewing bearings have 3D models, you can contact us to get them. At the same time, we can also provide CAD files and PDF files.

7. How long is your slewing bearing warranty period?
Our slewing bearing warranty time is 12 months. When you install, use, and store the slewing bearing, please refer to the slewing bearing instruction manual.

8. Can you choose the color of your slewing bearing?
Yes. Our slewing bearing is available in many colors. If you have special requirements, please tell our sales engineers, we are happy to provide services for you.
