| products discription | ||||
|---|---|---|---|---|
| Model Number: | 011.10.150 | Brand name | longwei | |
| Production Experience | Since 2004 | Applicable Industries: | Insdustry robot | |
| Feature: | Four Point Contact | Gear Options: | with External gear | |
| Material: | 50Mn/42CrMo/Customized | Seals Type: | As requirement | |
| Bearing Type: | Single Row Ball slewing bearing | CERTIFICATE: | ISO9001:2008/SGS | |
| Bore Diameter | 100 mm | Outside Diameter | 214mm | |

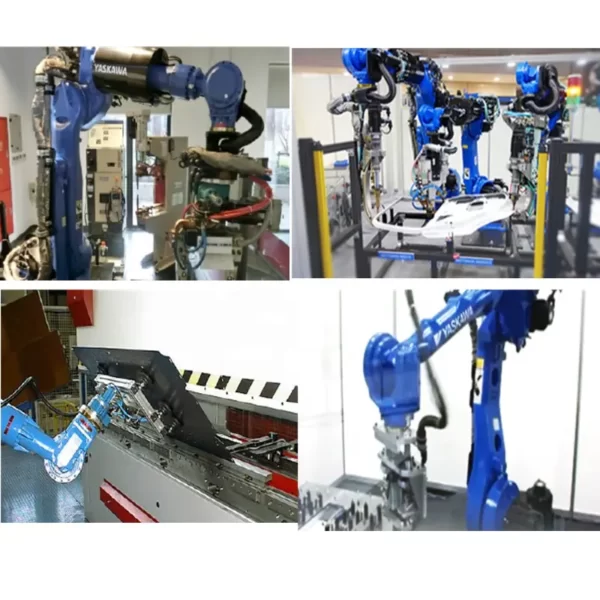

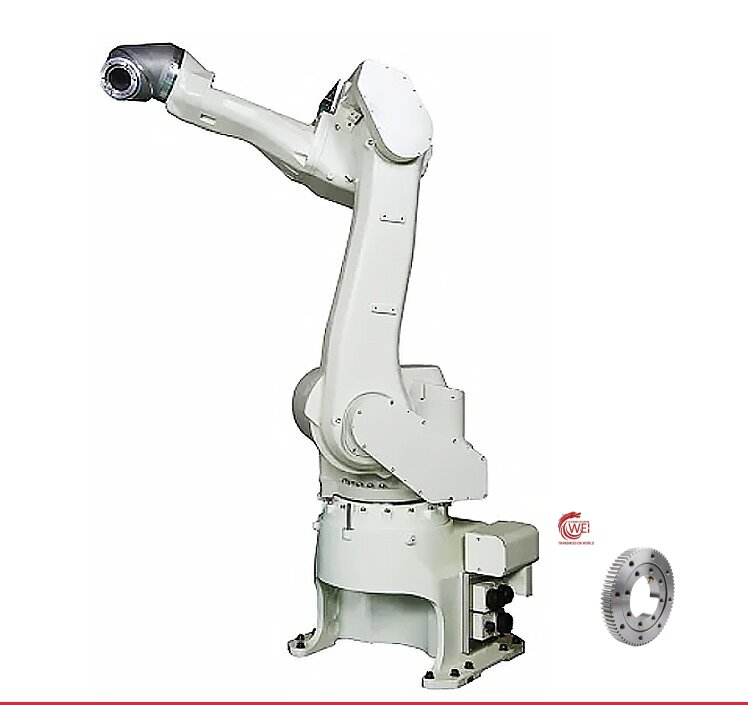

| Application: | Insdustry robot | RACEWAY hardness: | 55 -62HRC | |
| Product Name: | single row ball without gear slewing bearing | Service: | OEM Service.Design Service | |
| Net Weight : | 5.5kgs | Material of Rolling element: | GCR15 | |
| Warranty Period | 1 year | Testing | In house or third party | |
| Origin | CHINA | Size | Standard OR Customized | |
| Height | 30mm | H.S. Code | 848210900 | |
| Packaging Details | 1. Industrial Neutral Packing 2. Package as your requirements.3. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton 4.Large size Bearings:Plastic film+pergamyn paper+Roll tape+Wooden Box | MOQ | 1 Set |
The four-point contact ball bearings are radial single row angular contact ball bearings featuring raceways that can handle axial loads acting in both directions. A limited radial load can be supported for a given axial load.

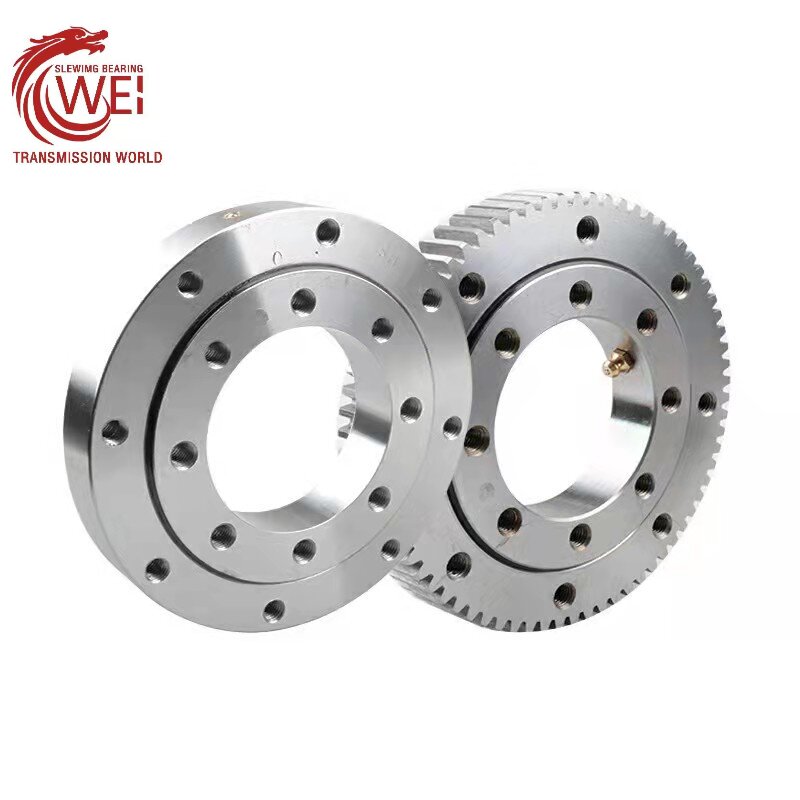

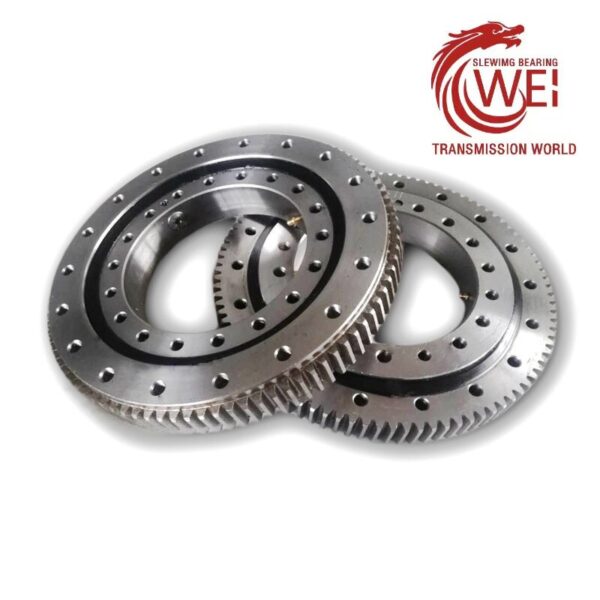

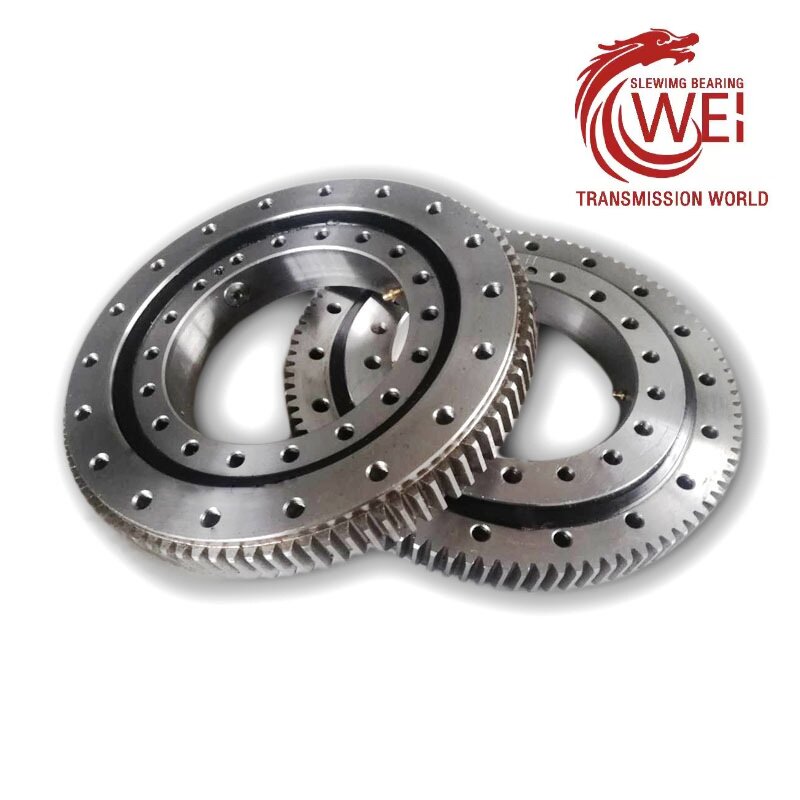

Slewing rings have a compact design, which facilitates more ease of use and can be manufactured without teeth, with internal or external teeth, with balls and/or with rollers. The patented hourglass design of lONGWEI slewing ring bearings is especially effective. The design of their slewing rings allows more teeth to be engaged at one time, leading to higher torque endurance and, essentially, a stronger and more durable slewing bearing.
Slewing bearing also known as slewing ring bearing,turntable bearing.It contain outer ring,
inner ring,rolling body,seals.The material of our products are generally high alloy-structural
steels ,such as 42CrMo 50Mn.The slewing bearing can work normally at a temperature of
-30℃ to +70℃,and we can design special type as customer need.
Note:
- n1 is the nos of lubricating holes.Oil cup M10×1JB/T7940.1~JB/T7940.2.The Oil nipple’s location can be change according to the user’s application.
- n-φcan change to tapped hole,the diameter of tapped hole is M,depth is 2M.
- The tangential tooth force in the form is the max tooth force,the nominal tangential tooth force is 1/2 of the max one.
- “K” is addendum reduction coefficient.
- FAQ
- You are a Trader or Manufacturer?
- We are a professional manufacturer of Slewing bearing and Slewing drive, and we have plant to make it, the Monthly production is 1000pcs
What is your delivery time?
For Slewing drive we have stock for all models, and for Slewing Bearing around 15-40days.3. What is your Payment Term?
Generally, we need 30% T/T in advance, balance before shipment.
We accept L/C at sight.
