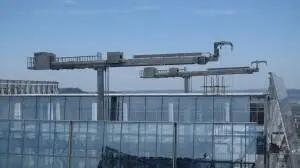

In the past, for cleaning of high-rise buildings, large rope hanging boards were generally used for manual cleaning, which was unsafe and uncivilized. With the continuous improvement, manual cleaning of large rope hangers will eventually be banned, and window cleaners are the safest, practical and efficient special equipment for high-altitude operations.

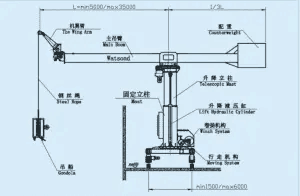

The rotation of the boom is composed of a slewing bearing and a motor reducer. When the motor rotates, the reducer gear drives the slewing bearing to rotate and the boom immediately rotates. The motor uses a brake motor and a track-type window cleaner. When the power is cut off, the drive immediately stops.
The single row four point contact ball slewing bearing is mainly used for window clearner, you can see following specification.
| Plane deviation of mounting bracket P (mm) | ||||
|---|---|---|---|---|
| Raceway center diameter | Plane deviation of mounting bracket P (mm) | |||
| DL(mm) | single row four ball | double row ball | cross roller | |
| ~1000 | 0.15 | 0.2 | 0.1 | |
| >1000~1500 | 0.19 | 0.25 | 0.12 | |
| >1500~2000 | 0.22 | 0.3 | 0.15 | |
| >2000~2500 | 0.25 | 0.35 | 0.17 | |
| >2500~4000 | 0.3 | 0.4 | 0.2 | |
| >4000~6000 | 0.4 | 0.5 | 0.3 | |
| >6000~8000 | 0.5 | 0.6 | 0.4 | |
1. Our manufacturing standard is according to machinery standard JB/T2300-2011, we also has been found the efficient Quality Management Systems(QMS) of ISO 9001:2015 and GB/T19001-2008.
2. We devote ourselves to the R &D of customized slewing bearing with high precision,special purpose and requirements.
3. With abundant raw materials and high production efficiency, the company can supply products to customers as quickly as possible and shorten the time for customers to wait for products.
4. Our internal quality control includes first inspection, mutual inspection, in-process quality control and sampling inspection to ensure product quality. The company has complete testing equipment and advanced testing method.
5. Strong after-sales service team, timely solve customer problems, to provide customers with a variety of services.
Â
Longwei transmission  is professional in produce slewing bearing for window cleaner. If you have any question, just feel free to contact us
About Longwei
Provide you with customized industry solutions
More than ten years of production experience, strict quality control can be the guarantee of the best solution in the industry.
China’s leading supplier of slewing bearings, its products have passed ISO 9001 and CAPE certification, and has a number of product patents.
The flexibility of our dialogue and approach with our clients is combined with responsive design and development innovation to ensure exceptional delivery.
FAQ
Do you have any questions about our slewing bearing? Maybe you can find the answer below. If the answer below does not solve your problem, please contact us and our engineer will answer it for you.
1. Where is your slewing bearing manufactured?
Our slewing bearings are all manufactured in China. We not only have the ability to design and produce slewing bearings but the quality can also be guaranteed. At the same time, our slewing-bearing price is more favorable.
2. I don’t know which slewing bearing to use, can you choose for me?
Yes, of course, Each model has a parameter list on the website. You can choose the suitable slewing bearing according to these parameter lists. If you don’t know how to choose, you can get in touch with us and our engineers will work with you to choose the suitable product. We can also design a new slewing bearing solution for you according to your equipment.
3. Can I get your product catalog?
You can get our product catalog in the download or contact us, we will send the product catalog to you by email or other ways.
4. Can you customize products?
Yes, we can. Our engineers have very rich experience in slewing bearing design. On the customized slewing bearing page, you can see some special customized products designed by our engineers. These design solutions meet the special needs of many customers. Our engineers can also work with you to design a new slewing bearing.
5. Can you provide accessories?
Yes, we can provide matching spare parts such as motors, hydraulic motors, and encoders that are compatible with slewing bearings.
6. Can you provide a 3D model?
Yes. All our slewing bearings have 3D models, you can contact us to get them. At the same time, we can also provide CAD files and PDF files.
7. How long is your slewing bearing warranty period?
Our slewing bearing warranty time is 12 months. When you install, use, and store the slewing bearing, please refer to the slewing bearing instruction manual.
8. Can you choose the color of your slewing bearing?
Yes. Our slewing bearing is available in many colors. If you have special requirements, please tell our sales engineers, we are happy to provide services for you.
