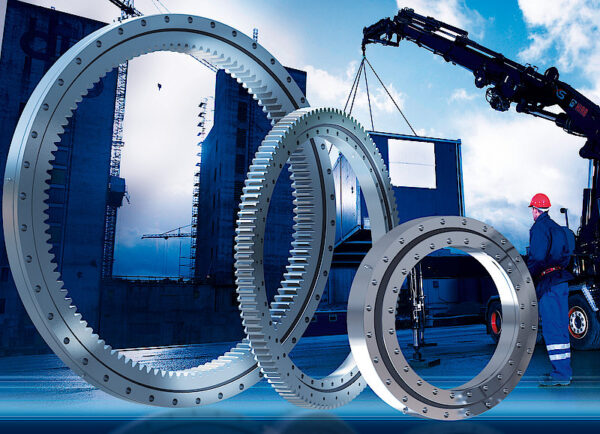

these slewing rings without preload are robust and proven under very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction
– they are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in simple metalworking machines, wind power equipment and construction machinery
– these preloaded slewing rings can support higher loads than four point contact bearings. They have proved themselves particularly where bearings are subjected to high radial forces and moderate axial and tilting moment loads
Note
1. n1 is the nos of lubricating holes.Oil cup M10×1JB/T7940.1~JB/T7940.2.The Oil nipple’s location can be change according to the user’s application.
2. n-φcan change to tapped hole,the diameter of tapped hole is M,depth is 2M.
3. The tangential tooth force in the form is the max tooth force,the nominal tangential tooth force is 1/2 of the max one.
4. “K” is addendum reduction coefficient.
Longwei Transmission Slewing Bearing Co.,Ltd. is a slewing bearing manufacturer specializing in standard and non-standard slewing bearing.Over the years, we supplied high quality product & good service to every user and gain good credit.We have strict quality control system in our own factory,meanwhile, we have passed ISO9001-2008 Quality System Certification and JG/T66-1999, JG/T67-1999, JG/T68-1999, JB/T2300-1999 with our country’s engineering & machinery standards.
Standards
| ISO9001 | 2008, SGS, CCS |
| Raw material | 50Mn, 42CrMo |
| Raceway hardening | 55-62HRC |
| Gear hardening | 50-60HRC |
| Lubrication | Grease |
| Warranty | 1 year |
Gear Heat Treatment
Special heat treatment design is carried out according to the different needs of specific industries for gears, mainly including induction single-tooth quenching and induction-type integral tooth quenching. Single tooth quenching is divided into tooth surface quenching and tooth surface and root quenching. After quenching, tempering treatment is carried out to make the surface hardness and the depth of the hardened layer meet the design standards. The most advantageous process is the special process of integral tooth quenching, which can improve the transmission efficiency and increase the wear resistance and impact resistance of the tooth surface, so as to meet the needs of customers.

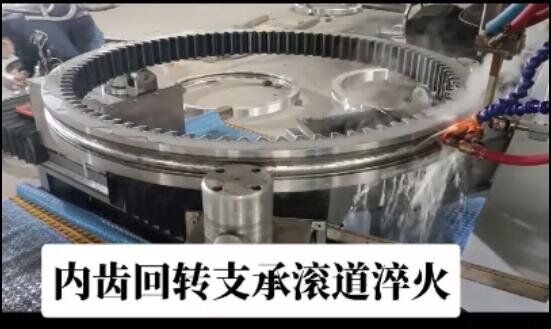

The raceway heat treatment of the slewing bearing is realized by induction heat treatment technology. Xuzhou Wanda Slewing Bearing has advanced heat treatment equipment (processing equipment and testing equipment) and scientific processing technology, so that the depth and hardness of the hardened layer conform to JB /T2300-2018 slewing bearing standard.

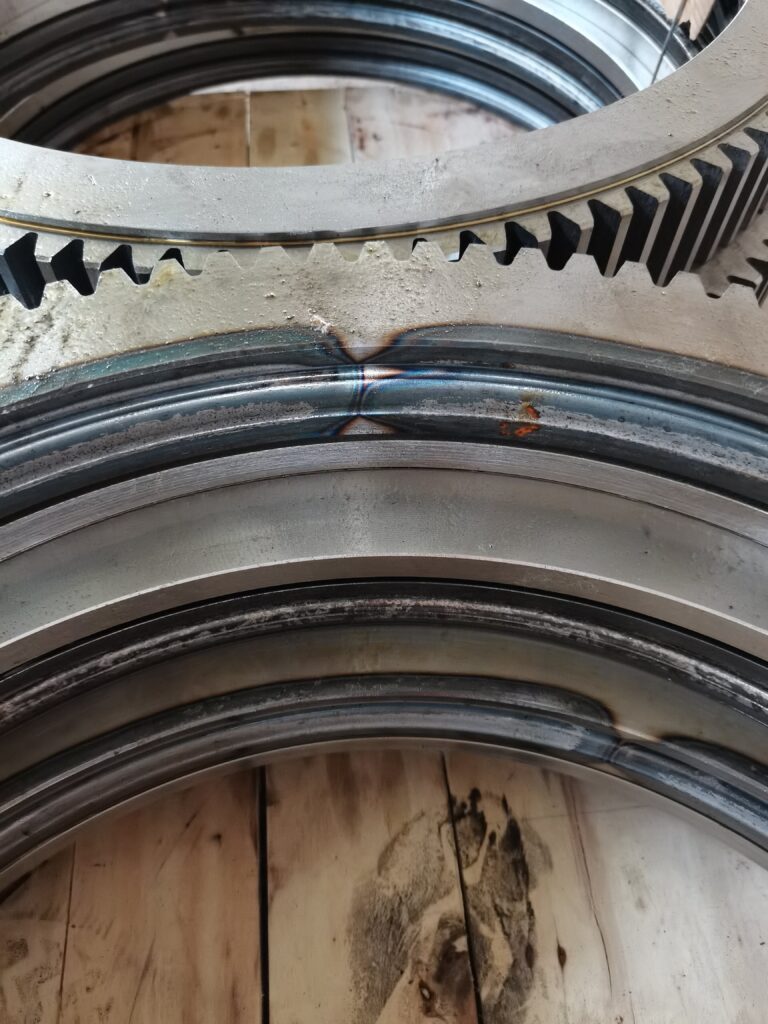

Raceway Heat Treatment
Hardness range: 55-62HRC
Quenching depth: 2-8mm
Automatic tracking
Real-time monitoring
Â
Feel free to contact us if you have any questions or requirements.
- We are a manufacturer of producing bearing for more than ten years.
2. We have advanced mechanical equipment and strict quality control team.
3. Efficient production speed and on-time delivery service.
4. Accept standard and non-standard production.
Please feel free to contact customer service if you have any questions or requirements.
We promise our customer service will reply to you within 24 hours.
